Product Description

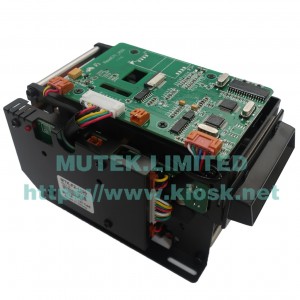

MTK-F21 is a motorized card collector simply designed for card recycling function in access control and car parking solutions. MTK-F21 works with our card dispensers to implement card recycling function easily and economically in different self-service terminals.
The recycling machine uses rubber wheels to hold and transport cards, installation can be in horizontal or vertical or any desired directions. And it is controlled either by RS232 or TTL interface and optionally you can integrate an RF reader, barcode scanner or Wiegand reader to achieve more functions.
| Parameters - MTK-F21 Motorized Card Collector /Card Recycler | |
| Items | Description |
| Card Thickness | 0.2mm~1.2mm (Ex-work Default: 0.8mm) |
| Card Size | Length*Width: 85.47-85.90x53.92-54.18mm (ISO 7810/CR-80/CR-79, ID-1) |
| Card Hopper Capacity | N/A; |
| Reject Bin Capacity | N/A; |
| Remaining Card Check | N/A; |
| Smart Card Reader | Integrated Contactless and/or Contact Reader &Optional SAM slot Contactless: ISO14443 type A&B, ISO15693; Mifare S50/S70/UL/Plus/Desfire; Contact IC: ISO7816-1,2,3,4; T=0&1 CPU Cards; SLE4442/4428, AT42Cxxx series; |
| Interface | RS232/TTL (optional) |
| Power Supply | DC24V±5%, 1.5A; Curent: Idle~100mA, Peak~1500mA; |
| Life Cycle | 500,000 times Collector cycles; |
| Environment Conditions | * Temperature &Humidity Operation: 0~50℃/0~90%RH Storage: -10~60℃/0~90%RH |
| Weight | 0.6Kg |
| Dimension | 141.1(L) x93.8(W) x 82.3mm(H) |
