2ZG-6D Riding Transplanter Agricultural
Machinery 2ZF-4K Four-row Machinery Transplanter

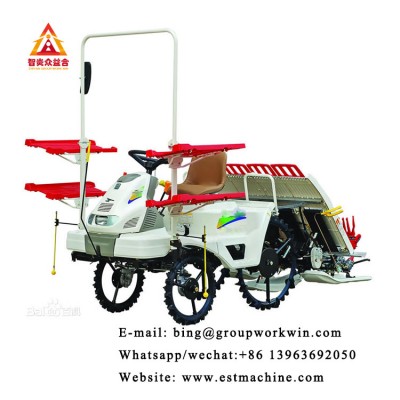

Main Picture
Main Introduction
Rice transplanter is a kind of planting machine for planting rice seedlings in paddy fields. The function is to improve the efficiency and quality of transplanting seedlings, to achieve reasonable close planting, and to facilitate the mechanization of follow-up operations.

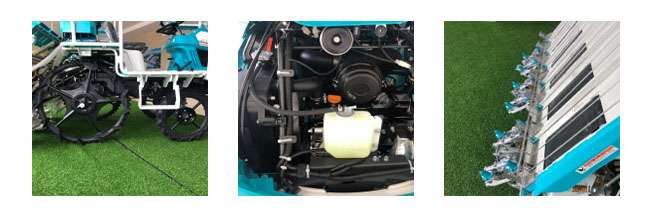

Detail Image
1. High-quality engine, water-cooled diesel engine, 3 cylinders, strong power, low fuel consumption, durability.
2. The bracket should be wider and more spare seedlings should be placed.
3. Super tightening capacity.
Paramete
Type | 2ZF-4K | ||
Structural Type | Two wheels three floating plates type | ||
Walking-wheel Diameter(mm) | 660 | ||
Work-part structural type | Crank rocker type | ||
Size(L×W(work)×H)(mm) | 2140×1630×910 | ||
Total Weight(kg) | 170 | ||
Matching Power | type,name | MZ175B8EA0 four-stroke gasoline engine | |
Output power(kW) /Speed (r/min) | 3.3/3600 | ||
Variable Speed Series | Forewords two gears, backwards one gear | ||
Capability | Work Speed(km/h) | 1.00~2.77 (no skidding) | |
Walk Speed On Road(km/h) | 2.09-5.33 | ||
Transplanting Depth(mm) | 7-37 | ||
Planting Density | Work Lines(Line) | 4 | |
Line Distance of Transplanting Seedling(mm) | 300 | ||
Transverse Taking Seedling(mm/number) | 10.8/26,14/20,15.6/18 | ||
Longitudinal Taking Seedling(mm) | 8-17 | ||
Seedling distance oftransp lanting seedling(mm) | 120,140,160,180,210 | ||
Nummber of (holl/ 3.3m2) | 90,80,70,60,50 | ||
Number of seedling / holl (seedling) | 2-8 | ||

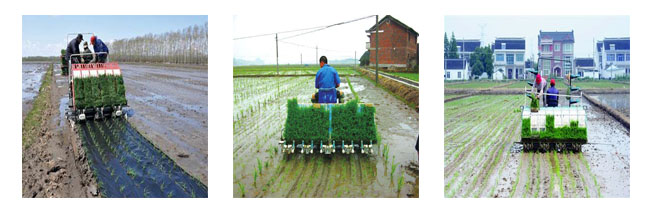

Use Map
1. Rice transplanter is a planting machine for planting rice seedlings in paddy fields.
2. The seedlings are basically parallel, and the vacancies in the leaf sheath are few, so that the effect of transplanting the sheath plants next to each other is good: the seedlings are transplanted neatly and evenly, and the ventilation performance is good.
3. The seedlings are put into the seedling box in a group state, so that the seedling picker can pick up a certain number of seedlings one by one. Under the function of the trajectory control mechanism, the seedlings are inserted into the soil according to the agronomic requirements.

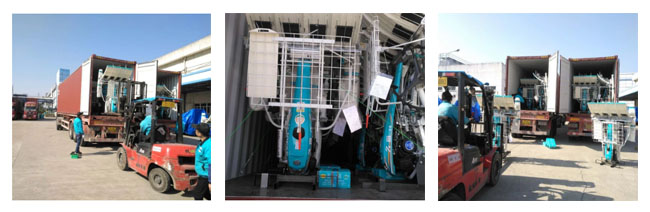

Package
Packaging details:1. Wood packaging 20GP: 4 sets of WSTP60; 6 sets of WSTP40
40HQ: 24 sets of WSTP40; 18 sets of WSTP60
2. According to customer requirements.
Port: Qingdao Port.
Delivery time:10 days.

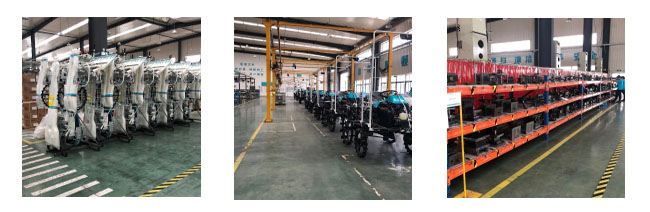

Factory
Qingzhou Group Work Co., Ltd. has been an agricultural machinery manufacturing company since 1990. We have many years of experience in this field and our products are exported to most countries in Asia, Europe and South America. So far, our company has more than 400 employees and an annual production capacity of 20,000 sets. Through the efforts of all employees, we have become a leading manufacturer and supplier in the Chinese industry.
Certificate
FAQ
Q1: What is the warranty for agricultural machinery?
A: The whole machine (except for fast wear parts), engine and gear box warranty for 1 year.
Q2: Is there a spare accessory for the combine harvester?
A: Yes, optional accessories such as rubber track size, grain bin and unloading type.
Q3: What is after-sales service?
A: Every year, we send engineers and after-sales personnel to the local market to assist our sales agents in training, marketing, advertising, maintenance and repair of employees during the harvest season.
