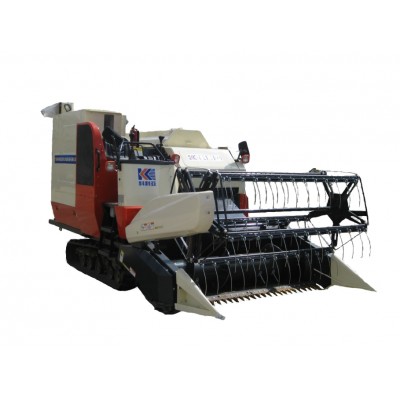

Whole-feeding Combine harvester

Turbo engine, high-powered to meet a variety of farmland operational requirement

Adopt HST, which can realize continuous variable transmission in different environmental conditions

Multi-functioned, which is available for rice, soybean, wheat, corn, rape, etc.

Corrugated screener and widening cleaning room for better cleaning performance and low loss rate

Axial sleeve, 2ND threshing device, grain tank are equipped with alarm system for automatic precise detection.

Toothed/Rasp Bar Longitudinal Axial Flow cylinder sheller system and upgraded grain feeding structure ensure the feeding more smooth and less broken rate.

The shear platform and the bridge are connected together, which can move as a whole with less blocking. And the straw processor is optional

More capacity for fuel and grain tank ensure higher and longer working efficiency and time.
    Item
Unit
4LZ-3.0Z
4LZ-3.5Z
4LZ-4.0Z
Feeding  rate
kg/s
3.0
3.5
4.0
Overall  dimension  LxWxH
mm
5040x2450x2480
5040x2450x2480
5040x2450x2480
Operating  mass
kg
3000
3280
3310
Diesel  Engine
Type
/
        4   -  cylinder,   water  cooled,   single  row,   vertical,   4   -  stroke

  Turbocharged
Fuel  tank  capacity
L
80
80
80
Rated  power
kw(ps)
52(69.5)
64(85.5)
74.5(99.5)
  Rated  speed
rpm
2200
2200
                2200
Alarm  device
/
Water  temperature, oil  pressure, Charging,   Grain  tank  alarming,
  Transmission
Type
(HST)
  Running  speed
m/s
Low  speed: 0-0.77            Standard: 0-1.09                High  speed: 0-1.48

Min. ground  clearance
mm
270
Crawler
  W  x  Ground  contact  length
mm
450  x1660
  Central  space
mm
1150
Cutting  width
mm
2400
  Threshing  and  cleaning
Type
Longitudinal  direction  axial  flow  sleeve
Cleaning  type
/
  Vibration,   blast,   and  2nd  cleaning
  Cleaning  plate  size
mm
1410  x  850
)Axis  flow  roller  (outer  diameter  X  length)
mm
640  x  1850
  Straw  processor
/
  Optional
Grain  collecting
Grain  tank  capacity
L
1030
1547.4
1547.4
Grain  unloading  time
s
85
90
90
Fuel  rate
Kg/hm²
20-30
working  efficiency
hm/h
0.33-0.495
0.43-0.645
0.50-0.75
