Harvester (0425-C)--Guangdong Kolea Modern Agricultural Equipment Co., Ltd.

Min. Order (Pieces)	FOB Price
1+	US $1 / Piece

Basic Info

Model NO.: 0425-C
Type: Horizontal Cut Harvester
Application: Rice, Wheat
Power Source: Diesel
Harvest method: Picking
Drive Type: Vee belt
Transmission: Soft Shaft
Portable Harvester Type: Backpack Type
Certification: SGS, ISO9001:2008, CE
Color: Yellow
Condition: New
Application Field: Agriculture, Livestock, Aquaculture, Forestry
5040X2450X2480: 5040X2450X2480
Trademark: KELIYA
Specification: ce
Origin: China
HS Code: 8433510090

Product Description

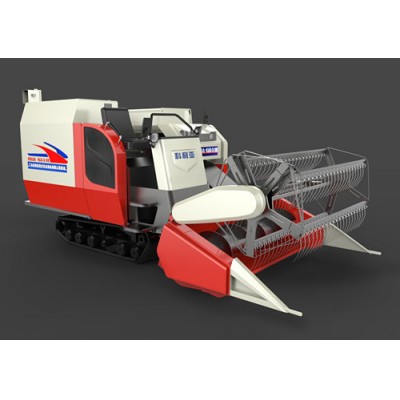

Whole-feeding Combine harvester

Turbo engine, high-powered to meet a variety of farmland operational requirement

Adopt HST, which can realize continuous variable transmission in different environmental conditions

Multi-functioned, which is available for rice, soybean, wheat, corn, rape, etc.

Corrugated screener and widening cleaning room for better cleaning performance and low loss rate

Axial sleeve, 2ND threshing device, grain tank are equipped with alarm system for automatic precise detection.

Toothed/Rasp Bar Longitudinal Axial Flow cylinder sheller system and upgraded grain feeding structure ensure the feeding more smooth and less broken rate.

The shear platform and the bridge are connected together, which can move as a whole with less blocking. And the straw processor is optional

More capacity for fuel and grain tank ensure high working efficiency

Item			Unit	4LZ-3.0Z	4LZ-3.5Z	4LZ-4.0Z
Feeding rate			kg/s	3.0	3.5	4.0
Overall dimension LxWxH			mm	5040x2450x2480	5040x2450x2480	5040x2450x2480
Operating mass			kg	3000	3280	3310
Diesel Engine	Type		/	4 - cylinder, water cooled, single row, vertical, 4 - stroke		Turbocharged
	Fuel tank capacity		L	80	80	80
	Rated power		kw(ps)	52(69.5)	64(85.5)	74.5(99.5)
	Rated speed		rpm	2200	2200	2200
Alarm device			/	Water temperature, oil pressure, Charging, Grain tank alarming,
Transmission		Type		(HST)
		Running speed	m/s	Low speed: 0-0.77 Standard: 0-1.09 High speed: 0-1.48
Min. ground clearance			mm	270
Crawler	W x Ground contact length		mm	450 x1660
	Central space		mm	1150
Cutting width			mm	2400
Threshing and cleaning		Type		Longitudinal direction axial flow sleeve
		Cleaning type	/	Vibration, blast, and 2nd cleaning
		Cleaning plate size	mm	1410 x 850
		)Axis flow roller (outer diameter X length)	mm	640 x 1850
Straw processor			/	Optional
Grain collecting	Grain tank capacity		L	1030	1547.4	1547.4
	Grain unloading time		s	85	90	90
Fuel rate			Kg/hm²	20-30
working efficiency			hm/h	0.33-0.495	0.43-0.645	0.50-0.75
