Basic Info

Model NO.: 4LZ-3
Application: Rice, Wheat, Grain
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Operation Weight: 4640kg
Engine Power: 110HP
Trademark: YRX
Specification: 6450*2700*2380mm
HS Code: 8433510001

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Color: Green
Application Field: Agriculture, Livestock, Aquaculture
Cutting Width: 2500mm
Feed Capacity: 3kg/S
Transport Package: Frame
Origin: China

Product Description

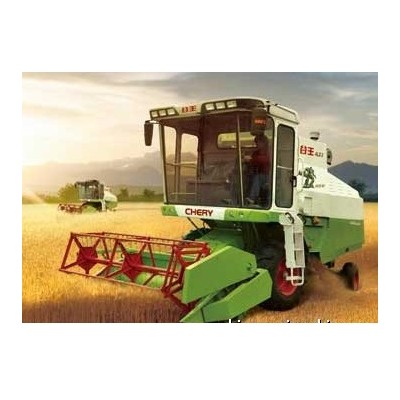

Chery 4LZ-3 Wheat Harvester

Engine Power : 110HP
Cutting Width : 250cm
For crop : rice wheat grain
Feed Capacity : 3kg/s

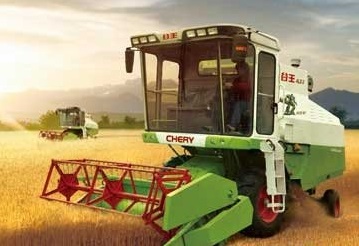

Agricultural Machine of Rice and Wheat Harvester

Chery 4LZ-3 Wheat Harvester Product Features
1, The tangential flow + axial flow threshing device is adopted, which ensures more mature threshing and separation technology and higher adaptability;

2, Equip with 90/110hp engine, featuring strong power;

3, Widened conveying axle and widened vibrating screen contribute to less loss of wheat and more cleanness of grain tank;

4, The new dustproof radiator cover is more reliable for dust and impurity prevention and more convenient for daily use and maintenance;

5, The new type of caliper brake is adopted for more reliable brake performance;

6, Equip with GPS navigation system, and abnormal inspection and alarm device for axial flow drum, re-threshing and elevator, which improves the automation degree;

7, The combination instruments has additional sound alarm function when the water temperature, oil pressure and oil level are abnormal, which is more thoughtful;

8, The optional straw chopper can meet the requirements for straw mulching;

9, The new luxurious driver's cab equips with air conditioner, and is more comfortable for driving;

10, When mounted with special attachments, it can be used to harvest rice, rape, soybean (flexible header), corn, etc. Thus it can improve the comprehensive economic profits.

Chery 4LZ-3 Wheat Harvester Technical Parameters

Model	4LZ-3
Feed Capacity Kg/s	3
Cutting Width mm	2360/2500
Power KW	66/73.5
Productivity hm2/h	0.4~0.67
Fuel Tank Volume L	235
Threshing Separation	Tangential flow + transverse axial flow roller
Grain Tank m³	1.8
Total Loss Rate %	Wheat:<=1.2 , Rice:<=3
Broken Rate %	Wheat:<=1 , Rice:<=1.5
Impurity Rate %	Wheat:<=2, Rice:<=2
Machine Weight (incl. Header) KG	4640
Overall Dimensions (L×W×H) mm	6450×2700×2380
