Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: CF806(4LZ-6)
- Application: Rice, Corn, Wheat, Soybean
- Harvest method: Cutting
- Transmission: Hard Shaft
- Certification: ISO9001:2008
- Condition: New
- Switchboard Weight: 7680kg
- Engine Power: 160HP
- Trademark: YRX
- Specification: 6400*3400*3300mm
- HS Code: 8433510001
- Type: Horizontal Cut Harvester
- Power Source: Diesel
- Drive Type: Gear Drive
- Portable Harvester Type: Side Hanging Type
- Color: Green
- Application Field: Agriculture, Livestock, Aquaculture
- Cutting Width: 2750mm
- Feed Capacity: 6kg/S
- Transport Package: Frame
- Origin: China
Product Description

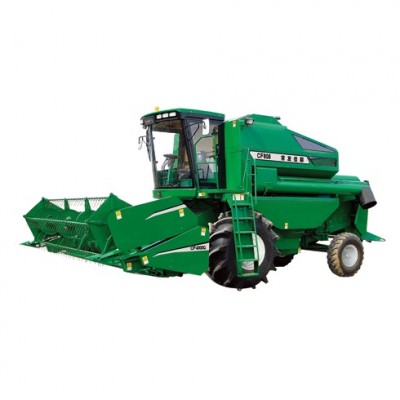

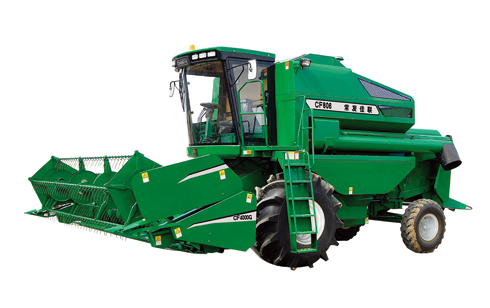

CF806(4LZ-6) Wheeled Combine Harvester
![Hot Selling Good Performance Wheeled Type Rice Combine Harvester]()
![Hot Selling Good Performance Wheeled Type Rice Combine Harvester]()
![Hot Selling Good Performance Wheeled Type Rice Combine Harvester]()
![Hot Selling Good Performance Wheeled Type Rice Combine Harvester]()
Product overview:
CF806 is a multifunctional harvester for rice, wheat and soybeans, also can harvest corn when change cutting table to corn type. Its threshing and separating performance is superior, with high cleanliness and low losses. Its harvest performance is in the lead of native market. It has high performance-to-price ratio, is the ideal type for customers.
Characteristics1. The world-class long longitudinal drum of biaxial flow separation device, compared with domestic similar models, have stronger threshing separation performance, can realize multistage threshing, multistage separation, a little impact on crops, low breakage rate, is especially suitable for the rice harvest;2. The world-class large adjustable double scales screen, with the fan can be adjusted within 562-562 RPM, in order to achieve the best cleaning air volume and cleaning performance;3. Using the threshing roller rotation speed regulating system, with optional speed, fully satisfy requirements of threshing for all kinds of crops;4. Using front axle of fission structure, with widened and largen tyre, high reliability, good anti depression and pass through performance ;5. The big grain tank and hydraulic controlled unloading grain tube with the height 4.2 meters, help users to increase grain unload speed and save the harvest time, realizing harvesting in company with the unloading work. It increases the operation time and improves the working efficiency;6. According to the multi-use concept, this type can not only harvest rice and wheat but also soybean, which achieve the biggest efficiency of the harvester. Parameters| Model | 4LZ-6(CF806) |
| Cutting width (m) | Rice4,4.5 Soybean4.5.5.4 |
| Feeding kg/s | 6 |
| Total losses | ≤3.0(Rice) ≤1.2(Wheat) |
| Threshing type | Spike tooth |
| Drum size (diameter * length) mm | 1148×550 |
| Separation device form | Longitudinal biaxial Flow plate teeth roller |
| Separation area m2 | 2.9 |
| Cleaning device form | Wind Screen type |
| Cleaning area m2 | 3.6 |
| Grain tank capacity m³ | 3.7 |
| Engine power KW / hp | 118(160hp) |
| Measurement (transport status) m | 6.4×3.4×3.3 |
| Switchboard weight kg | 7680(Without cutting table ) 8500(with 4.5m cutting table ) |
| Walking form | Wheeed type |
| speed km/h | 1-22 |
| Fuel tank capacity m³ | 300 |
| Ground clearance (fan) mm | 540 |
