Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: CF904A
- Application: Rice, Corn, Wheat, Soybean
- Harvest method: Cutting
- Transmission: Hard Shaft
- Certification: ISO9001:2008
- Condition: New
- Machine Weight: 7700kg
- Feed Capacity: 9kg/S
- Trademark: YRX
- Specification: 9500*3200*3600mm
- HS Code: 8433510001
- Type: Horizontal Cut Harvester
- Power Source: Diesel
- Drive Type: Gear Drive
- Portable Harvester Type: Side Hanging Type
- Color: Green
- Application Field: Agriculture, Livestock, Aquaculture
- Engine Power: 160HP
- Picking Row Distance: 600-750
- Transport Package: Frame
- Origin: China
Product Description

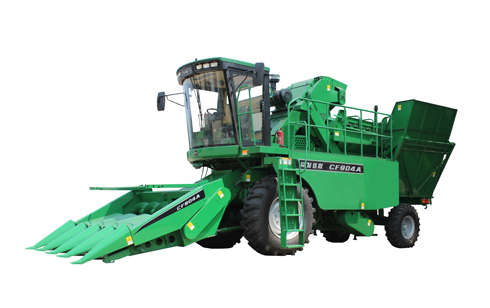

CF904A Wheeled Combine Harvester

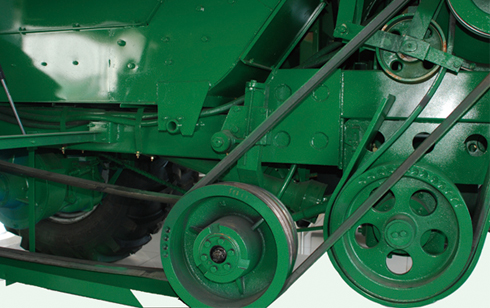

![Hot! ! Wheeled Typewheeled Combine Harvester with Good Quality]()

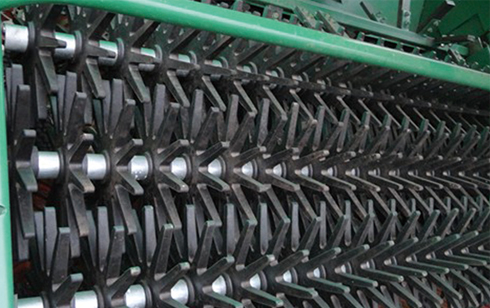

![Hot! ! Wheeled Typewheeled Combine Harvester with Good Quality]()
![Hot! ! Wheeled Typewheeled Combine Harvester with Good Quality]()
![Hot! ! Wheeled Typewheeled Combine Harvester with Good Quality]()
Product overview:
CF904/CF905/CF907 are specialized for maize-pick, with new design, durable quality, high efficiency, and excellent cost performance; the 9 series combine harvester keep a leadership position in domestic China market. Characteristics1. The advanced and international standard peeling roller structure, make the corncob distributed widely in the peeling device;higher the efficiency and clearance of peeling, and lower the breakage and loss of corn niblet;2. The lengthen stalk-pulling roller, make the corn picker transmission and inclination angle more optimized;stable corn pick, smooth transmission, low loss rate;
best choice for most kind of corns;3. International advanced elevator stalk-discharging mouth, make the cleaning and peeling with much more efficiency;4. International advanced graduated front and rear transmit structure, better for weed cleaning and corncob grain tank capacity using;5. International specialized-design stalk cutter, make the cutting and chopping better;the cutting blades are specially processed, with long life and good durability. Also, the profiling function of cutting adjustable wheels are qualified for different region and blades protection;6. Internal advanced transmission structure;simple and durable operation, low failure rate, easy maintenance;7. Internal advanced separated type front axle;durable and reliable;8. Less time for discharging, big grain tank, with high discharging distance(the highest point is 2.5m) for big truck. Technical Parameters| ITEM | 4YZ-4(CF904) | 4YZ-5(CF905) | 4YZ-7(CF907) |
| Corncob picking device | 4 | 5 | 7 |
| Picking row distance | 600-750 | 500-600 | 300-400 |
| Rated hp(kw/hp) | 118kw (160hp) |
| Working speed km/h | 3-5 (1-3.6 acre / per net hour) | 3-6 (1-3.6 acre / per net hour) |
| Top walking speed km/h | ≤20 |
| Grain tank / m³ | 5 |
| Stalk chopping type | hobbing cutter |
| Oversize / mm | 9500×3200×3600 |
| Total wet. / kg | 7700 | 7800 | 8000 |
| Peeling device | 5 |
