Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: 4LZ-2.0Z
- Application: Rice, Wheat, Grain
- Harvest method: Cutting
- Transmission: Hard Shaft
- Certification: ISO9001:2008
- Condition: New
- Operation Weight: 2800kg
- Engine Power: 78HP
- Trademark: YRX
- Specification: 4970*3040*2660
- HS Code: 8433510001
- Type: Horizontal Cut Harvester
- Power Source: Diesel
- Drive Type: Gear Drive
- Portable Harvester Type: Side Hanging Type
- Color: Red
- Application Field: Agriculture, Livestock, Aquaculture
- Cutting Width: 2000mm
- Feed Capacity: 2kg/S
- Transport Package: Frame
- Origin: China
Product Description

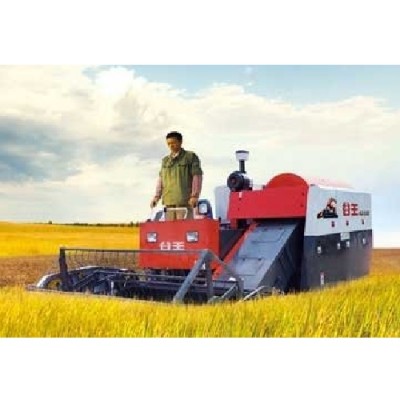

Chery 4LZ-2.0Z Rice Harvester
- Engine Power : 78HP
- Cutting Width : 200cm
- Driver : crawler
- For crop : rice,wheat etc grain
- Feed Capacity : 2kg/s

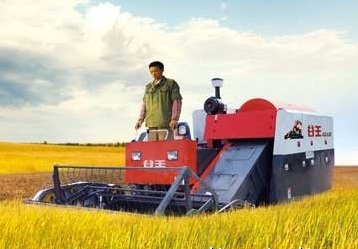

![4lz-2.0z Mini Rice Combine Harvester Price]()
Chery 4LZ-2.0Z Rice Harvester Product Features Strong power:1, Equip with 55kw(78hp) turbocharged engines, sufficient power margin, harvesting more easily;Advanced Technology:1, The most advanced technology of full feeding rice combine, longitudinal axial flow roller is adopted, more powerful threshing and separation capability,higher clearance and lower loss rate;2, Integrated design of the header and the transportation, harvest the high stalk rape effectively;3, The wide conveying channel makes the crop transportation more smoothly;4, Full hydraulic system, stepless speed change, easy to operate, efficient;5, With vehicle technology,performance promoted;Highly efficient:1, For rice harvesting, (0.17-0.47)hectare/hour; For wheat harvesting, (0.33-1)hectare/hour;2, Grass chopper and grain box are apolegamic;Technical Parameters| Model | 4LZ-2.0Z | |
| Type | Longitudinal axial flow | |
| full-feed crawler type | |
| Rated Engine Power/Speed kW/r | 55/2600 | |
| Overall Dimensions(L×W×H) mm | 4970×3040×2660 | |
| Operation Weight kg | 2800 | |
| Cutting Width mm | 2000 | |
| Feed Capacity kg/s | 7.2 | |
| Min. Ground Clearance mm | 220 | |
| Theoretical Operating Speed km/h | 0-5.8 | |
| Productivity hm2/h | 0.17-0.47hectare | |
| Fuel consumption per unit area kg/hm2 | ≤25 | |
| Blade Type | two type | |
| Header Auger Type | helical blade+eccentered | |
| expansion link (Floating) | |
| Transmission Type | Mechanical + stepless | |
| speed regulating | |
| Stalk Chopping Type | Flail blade (optional) | |
| Track | Spec(Pitch X Pitch Number X Width) | 90mm×50pitch×400mm | |
| Track Gauge mm | 1150 | |
| Threshing Drum Type mm | φ655×1550 | |
| Grain unloading | Manual receiving | |
| |
