Basic Info

Model NO.: 4LZ-0.8
Application: Rice, Wheat, Grain
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Operation Weight: 4800kg
Engine Power: 110HP
Trademark: YRX
Specification: 6740× 2850× 3250mm
HS Code: 8433510001

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Color: Green
Application Field: Agriculture, Livestock, Aquaculture
Cutting Width: 2750mm
Feed Capacity: 4kg/S
Transport Package: Frame
Origin: China

Product Description

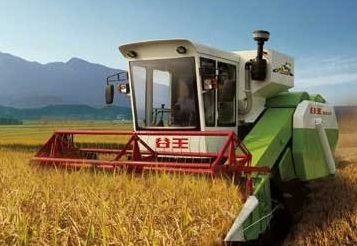

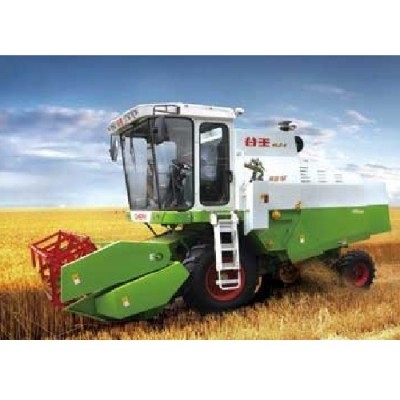

Chery 4LZ-4 Wheat Harvester

Engine Power : 110HP
Cutting Width : 275cm
For crop : rice,wheat,grain
Feed Capacity : 4kg/s

Chery 4LZ-4 Wheat Harvester Product Features

1, The tangential flow + axial flow threshing device is adopted, which ensures more mature threshing and separation technology and higher adaptability;

2, Equip with 90/110hp engine, featuring strong power;

3, Widened conveying axle and widened vibrating screen contribute to less loss of wheat and more cleanness of grain tank;

4, The new dustproof radiator cover is more reliable for dust and impurity prevention and more convenient for daily use and maintenance;

5, The new type of caliper brake is adopted for more reliable brake performance;
Equip with GPS navigation system, and abnormal inspection and alarm device for axial flow drum, re-threshing and elevator, which improves the automation degree;

6, The combination instruments has additional sound alarm function when the water temperature, oil pressure and oil level are abnormal, which is more thoughtful;

7, The optional straw chopper can meet the requirements for straw mulching;

8, The new luxurious driver's cab equips with air conditioner, and is more comfortable for driving;

9, When mounted with special attachments, it can be used to harvest rice, rape, soybean (flexible header), corn, etc. Thus it can improve the comprehensive economic profits.

Chery 4LZ-4 Wheat Harvester Technical Parameters

Model	4LZ-4
Feed Capacity Kg/s	4
Cutting Width mm	2500/2750/3250
Power KW	73.5/81
Productivity hm21/h	73.5/81
Fuel Tank Volume L	250
Threshing Separation	Tangential flow + transverse axial flow roller
Grain Tank m³	2.4
Total Loss Rate %	Wheat:<=1.2 , Rice:<=3
Broken Rate %	Wheat:<=1 , Rice:<=1.5
Impurity Rate %	Wheat:<=2 , Rice:<=2
Machine Weight (incl. Header) KG	4800
Overall Dimensions (L×W×H) mm	6740×2850×3250
