Foton Lovol DC200 Combine Harvester
- Engine Power : 75HP
- Cutting Width : 200cm
- Driver : crawler
- For crop : rice wheat grain
- Feed Capacity : 2kg/s

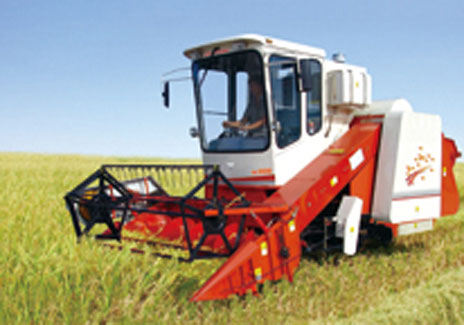

![Supply Foton Lovol DC200 Crewler Full-Feed Small Combine Harvester]()
Main Features1. The drive of shear adopts outside cresent cycle.2. Double layers vibrating screener selecting system.3. Adopt new type parallelized four wheel drive.4. With strengthened hydraulic steering drive axle.5. Adopt 400×90×49mm rubber continuous track.6. Adopt the technique enabling surplus grain to return into sleeve.7. Adjustable teeth of sleeve piston and adjustable space of sheller.Technical parameters| Engine power (ps) | 65/75 | Cutting width (mm) | 2000 |
| Feeding rate (kg/s) | 2 | Total loss rate (%) | (Wheat)≤1.2 (Rice)≤3.0 |
| Broken rate (%) | Wheat≤1.0 Rice≤1.5 | Impurity rate (%) | Wheat≤2.0 Rice≤2.0 |
| Threshing and cleaning structure type | Single horizontal axis flow roller + fan + double layers shaking screen | Gravure plate adjustable structure | Increase the adjustment pads and adjust the position of threshing teeth |
| Axis flow roller(outer diameter*length) | ¢550*1325 | Grain tank capacity(m³) | 0.5/0.8/1.0/1.2 |
| Grain unloading type | Mechanic grain unload+Manual receiving grain | Running speed range(Km/h) | 1.02-9.50 |
| Operation weight | (2700-3250) ±5% | Overall dimension (L*W*H) (mm) | ≤5600*2400*2600 |
Optional
1. Assembled with new diesel motor with four cylinders.
2. Assembled with ordinary 2. 0m shear platform.
3. Assembled with drive axle for superintendents and hydraulic steering equipment.
4. Assembled with a big sized crop tank (1. 2m3) + a manual pick-up channel + a crop discharging hopper.
5. Assembled 400×90×49mm continuous track.
