Basic Info

Model NO.: 4YZ-5
Application: Corn
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Machine Weight: 9100kg
Engine Power: 160HP
Trademark: YRX
Specification: 9300*3050*3800mm
HS Code: 8433510001

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Color: Green
Application Field: Agriculture, Livestock, Aquaculture
Cutting Width: 2750mm
Feed Capacity: 5kg/S
Transport Package: Frame
Origin: China

Product Description

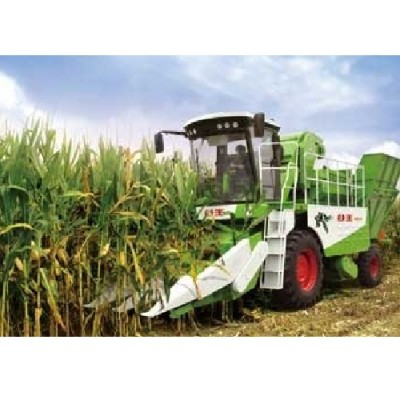

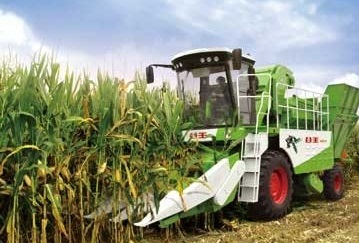

Chery 4YZ-5 Corn Harvester

Engine Power : 160HP
Cutting Width : 275cm
Type : Self-propelled
Rows : 5
Row Width : 55cm

Chery 4YZ-5 Corn Harvester Product Features

High quality:
1, High reliability: 300h idling test and 1,200h field test over two years for high reliability verification.

2, High efficiency: Equip with WUXI 159hp, YUCHAI 160hp engine, featuring strong power, reliable quality and high working efficiency.

3, Beautiful appearance: with leading appearance design, it provides remarkable experience.

High technology:
1, The advanced technology of low position small tilt angle: With the advanced technology, it is more suitable for lodged crops and it can prevent the corn cluster from falling to the ground and reduce the loss;

2, The secondary elevator has strong conveying capability, which improves the secondary stalk chopping and ensures the cleanness of the cluster with the fan;

3, The secondary conveying, the enlarged ground clearance ensures the flexible lifting and lowering of the header;

4, The advanced front axle technology: Equip with the advanced 1000 series drive axles, featuring advanced technology, good load bearing capacity, and high reliability. It can achieve the single-side braking, having the multiple advantages such as good adaptability, flexible steering, convenience to maintain and service, and etc.;

5, The advanced corn picking technology: The advanced board picking structure features the small damage to the corn, good corn picking effect, high adaptability and high reliability, etc.;

6, The advanced peeling technology: Use the tiled peeling roller layout structure, the cluster can be longitudinally conveyed and rolled over, which features good peeling effect and low grain damage rate;

7, The advanced stalk mulching technology: Optionally equip with flail blade or hammer claw type stalk mulching machine. The stalk smasher is wider than the row spacing,which ensures good smashing effect. The stalk smasher is installed with roller finder, which can effectively prevent the blade of the smasher from damage due to its contacting with the ground, and thus makes the smasher have extended service lifetime and higher reliability.

8, The advanced hydraulic technology: The famous brands of hydraulic parts are used, which features the advanced technology and reliable quality;

Chery 4YZ-5 Corn Harvester Technical Parameters

Model	4YZ-5
Harvesting Rows	5
Row Space mm	550
Cutting Width mm	2750
Engine Power kw	117
Min. Ground Clearance mm	400
Min. Slewing Radius m	7
Front/Rear Wheel Track mm	2000/1950
Pure Work Productivity hm2/h	0.5~1.2
Grain Tank Capacity m³	4.3
Min. Unloading Height m	2.1
Total Loss Rate %	≤4.0
Grain Broken Rate %	≤1.0
Corn Impurity Rate %	≤1.5
Bract Peeling Rate %	≥85
Stalk Smashing Length %	≤100
Machine Weight (incl. Header) KG	9100
Overall Dimensions (L×W×H) mm	9300×3050×3800
