Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: CF812
- Application: Rice, Corn, Wheat, Soybean
- Harvest method: Cutting
- Transmission: Hard Shaft
- Certification: ISO9001:2008
- Condition: New
- Machine Weight: 10600kg
- Engine Power: 220HP
- Trademark: YRX
- Specification: 7100*3700*3600mm
- HS Code: 8433510001
- Type: Horizontal Cut Harvester
- Power Source: Diesel
- Drive Type: Gear Drive
- Portable Harvester Type: Side Hanging Type
- Color: Green
- Application Field: Agriculture, Livestock, Aquaculture
- Cutting Width: 5400mm
- Feed Capacity: 9kg/S
- Transport Package: Frame
- Origin: China
Product Description

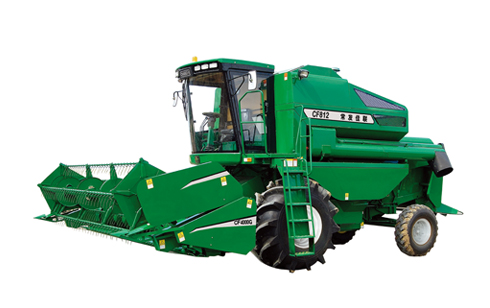

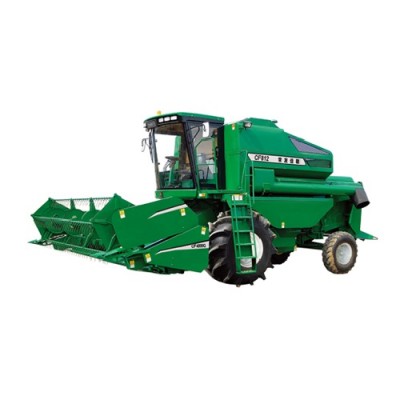

CF812 Wheeled Combine Harvester
![European Advanced Production Technology Wheeled Combine Harvester]()
![European Advanced Production Technology Wheeled Combine Harvester]()
![European Advanced Production Technology Wheeled Combine Harvester]()
![European Advanced Production Technology Wheeled Combine Harvester]()
Product overview:

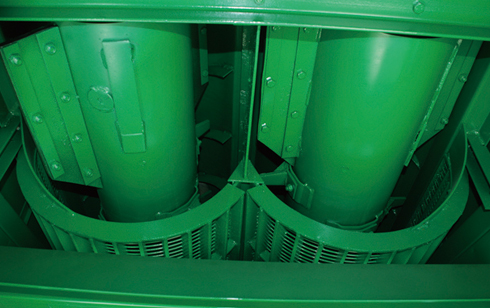

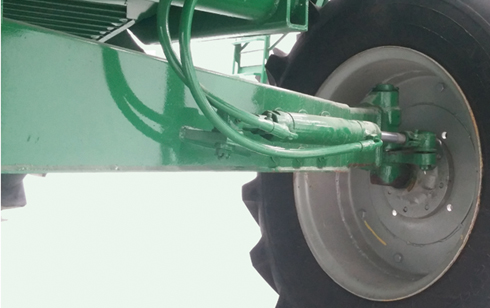

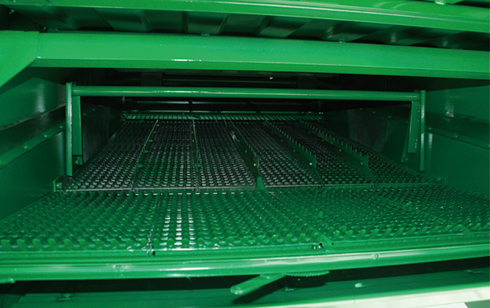

Changfa through fully absorb the European advanced production technology, Changfa design the production CF812 combine harvester, threshing and separating performance is superior, the grain crushing rate is low, the harvest performance of similar models is leading level in domestic, has the high cost performance. Characteristics1. Using the leading international first-class long longitudinal drum of biaxial flow separation device, compared with domestic similar models, have stronger threshing separation ability, realize multi-stage threshing, multistage separation, a little impact on crops, and good gain performance, low breakage rate, especially suitable for corn harvest;2. Using the domestic leading threshing cylinder rotation speed regulating system, a variety of speed is optional, fully satisfy all kinds of crop threshing requirements;3.Using the leading international first-class large adjustable double scales screen, can be in 562-1105RPM range adjust fan, in order to achieve the best cleaning air volume, cleaning effect is very good;4.Using the leading international first-class walking hydraulic drive, convenient to operate, less driving intensity, improve the driving comfort, let users enjoy the pleasure of driving;5, Using the big grain tank and hydraulic control unloading grain tube, increase speed of unload grain, save the harvest time, realize the unloading grain harvest homework at the same time, increased the pure operation time, improve the working efficiency;6. Using the structure type front axle , can be widened large tyre assembly, high reliability, the effect is good, have good passing ability;7. According to the international advanced multi-use of design concept, make the model in the implementation of rice, wheat harvest at the same time, also can harvest soybeans, greater play to the efficiency of the harvester. Technical Parameters| Item | Data |
| Swath m | 4.5(Paddy) |
| Feed quantity ks/s | 12 |
| Total lose rate | ÷3.0(Paddy) ÷1.2(Wheat) |
| Threshing type | Nail tooth(Main rotor);Plate type(Sub roller) |
| Roller size (diameter*length) | 610/1300 |
| Separation plant forms | Longitudinal flow of biaxial plate cylinder |
| Separate area С | 4.31 |
| Forms of cleaning device | Wind fiter |
| Cleaning area С | 5.7 |
| Grain tank volume m2 | 5 |
| Engine power(HP) | 162(220) |
| Dimension m | 7.1*3.7*3.6 |
| Total weight kg | 10600(With cutter 4.5m) |
| Walk form | Wheeled |
| ravel speed km/h | 1~22 |
| Oil tank capacity | 300 |
| Gap(Fan) mm | 54 |
