Basic Info

Model NO.: CF809(4LZ-6)
Application: Rice, Corn, Wheat, Soybean
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Machine Weight: 8500kg
Engine Power: 180HP
Trademark: YRX
Specification: 8100*4400*3600mm
HS Code: 8433510001

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Color: Green
Application Field: Agriculture, Livestock, Aquaculture
Cutting Width: 4500mm
Feed Capacity: 9kg/S
Transport Package: Frame
Origin: China

Product Description

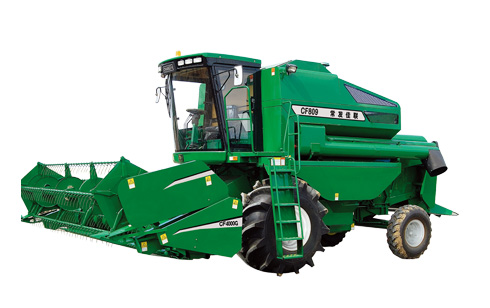

CF809(4LZ-6) Combine harvester

Product overview:

The new model Crown CF809 mainly used for the rice harvest, also used for harvest wheat, soybeans . After change header and related features, it can direct for harvest corn grain. The biggest characteristic of the model is the l big amount of feeding, achieve 9 kg/s, strong power, high working efficiency, is the cost-effective multifunctional harvester in domestic market.

Characteristics
1.Using international popular long longitudinal flow of biaxial roller threshing device, having stronger threshing separation ability, realizing multi-stage threshing, multistage separation, a little impact on crops, and have gain good performance, low breakage rate. The threshing performance far ahead of the domestic production of foreign brand;

2.On the basis of the original model CF806, use the axial roller device, which can be quickly removed, that after the harvest rice can be easily and quickly adjusted for harvest corn grain, truly achieve multi-usage;

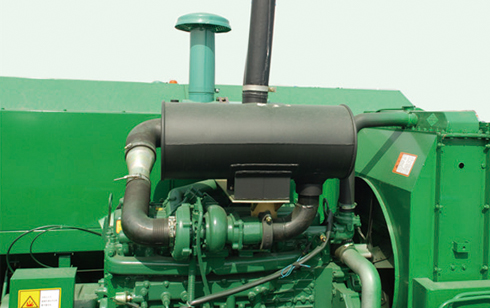

3.Using yuchai turbocharged six-cylinder engine, power up to 180 horsepower, ahead of the domestic production of foreign brands of similar type;

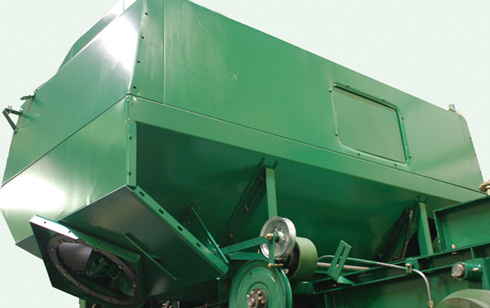

4.Using 5m³ grain tank, reduce the times of unloading grain, increase the pure operation time, improve work efficiency, ahead of the domestic production of foreign brands of similar type;

5.Adopts hydraulic control unloading grain buckets, unloading grain tube height can reach 4.2 meters, meet user increase grain speed, saving the harvest time, increase the pure operation time, improve work efficiency, ahead of the domestic production of foreign brands of similar type;

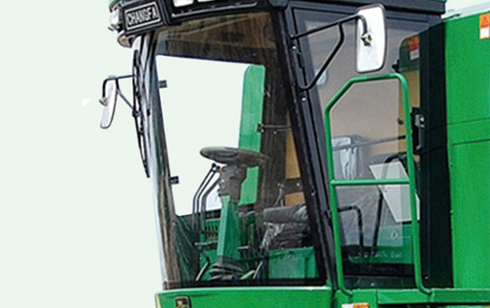

6.Adopt international advanced man-machine engineering concept design of circular arc bridge, have better driving view;

7.Cleaning area is bigger than that domestic production of foreign brands of similar type around 20%, greatly reduce the loss rate, which does not exceed the total loss rate of 1%, increase food per hectare than its peers 30-40 jins grain;

8.Using high-lug tire 28L - 26, tire width 715 mm, by 30% bigger than that of similar type of foreign brand tire width, the effect is good, good passing ability, ahead of the domestic production of similar type of foreign brand.

Technical Parameters

Item			4LZ-6(CrownCF809)
Structural Style			Wheeled self-propelled full feeding
Engine		Specification	YC6A180Z-T21
		Structural Style	Six cylinder, Vertical type, Array, Four stroke, Direct injection
		Rated hp(kw/hp)	130
		Rated RPM r/min	2300
Measurement(LWH) mm			8100×4400×3600
Machine Weight kg			8500
Width cutter mm			4500 or 5400
Feed quantity kg/s			9
Minimum Ground Clearance mm			540
Productivity per working hour hm2/h			2~5
Hourly-machine rate hm2/h			1.0~1.6
Fuel consumption kg/hm2			24~60
Cutter type			Standard form two
Auger type of cutter			Auger delivery
Grain tank / m³			5
Reel	Type		Eccentric-type
	Diameter mm		900
	Plate quantity of reel		5
Threshing drum	Quantity		3
	Type		Cutting drum of flow	Nail tooth
			Cutting drum of flow	Plate type*2
	Size(diameter*length) mm		Cutting drum of flow mm	550×1148
			Drum of axial flow mm	500×3070
Concave plate screen type			Grid based
Fan	Type		Centrifugal volute type
	Diameter mm		288
	Quantity		1
