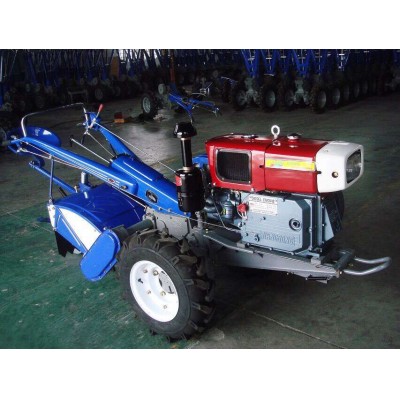

Goods Description:Two wheel tractor can be used as a means of traction as well as power takeoff (PTO). The tractor is featured by its simple and compact construction, reliability, long service life, easy operation, ample output, light weight and high versatility. This tractor is very suitable for using in small dry fields, orchards, vegetable gardens of hilly land with small inclination, working in the plastic green house. It can be used for ploughing, rotary cultivating, harrowing in paddy, harvesting, transportation, etc., if suitable implements or accessories are attached. In addition, the tractor can be extensively used as a stationery power station for small scale drainage and irrigation, spraying, grain threshing, cottons ginning, flour milling, fodder cutting, etc.
| Model | HY-201 | HY-201L |
| Minimum Order quantity: | 2 sets |
Unit Price
(EXW Yancheng): | Basic model | $920 | $950 |
| the price has included an rotary cultivator |
| Options | Electric motor start: USD 180.00 / set |
| Technical Description |
| Engine: | Model: | ZS1110 diesel engine | ZS1110NL diesel engine |
| Rated output/speed: | 20 hp / 2200 rpm | 20 hp / 2200 rpm |
| Cooling system: | Evaporative cooling system | Radiator cooling system |
| Starting mothod: | Hand crank start |
| Overall dimension: | 2680 × 960 × 1250 mm |
| Wheel tread: | 800, 740, 640, 580 mm |
| Tyre: | 6.00 - 12 |
| Ground clearance: | 182 mm |
| Clutch type: | Two-disc, constant-contact, friction |
| Gear / Speed: | 6 forward: | 1.54 / 2.75 / 4.51 / 5.83 / 10.34 / 16.83 km/h |
| 2 reverse: | 1.2 / 4.18 km/h |
| Rotary Cultivator: | Model: | 1GS9L-60 |
| Tilling width: | 600 mm |
| Blade No.: | 18 tilling blades |
| Package Details |
| Net weight: | 515 kg | 525 kg |
| Packing method: | Export standard wooden case |
| Packing size: | 1160 × 1100 × 1100 mm |
| Loading port: | Shanghai Port |
| Other terms: Minimum order quantity 2 sets; |
