Arch Structure Multi-Span Film Greenhouse--Qingdao Bluesky Greenhouse Co., Ltd.

FOB Price:	US $30-100 / Square Meter
Min. Order:	1,000 Square Meters

Min. Order	FOB Price
1,000 Square Meters	US $30-100/ Square Meter

Basic Info

Model NO.: BS-FGH-105
Size: Large
Layer: Single
Transport Package: Flat Pack
Origin: Qingdao, China(Mainland)

Type: Production Greenhouse
Cover Material: Film
Trademark: Blue Sky
Specification: Plastic Film, Hot Gal Steel Tubes
HS Code: 940600000

Product Description

Hot Sale Low Cost Plastic Film Greenhouse Description:

Film Multi-Span Greenhouse Material Composition:

Main frame is made of galvanized steel tubes, top and all around is covered by single-layer or double-layer PO film.

Film Multi-Span Greenhouse Characteristics:

1 Double-frame double-layer film greenhouse:

Double-frame double-layer film greenhouse use double-layer galvanized steel frame both on top and all around, and both inside and outside frame will be covered PO film, it has good heat insulation performance, can effectively save the heating energy consumption, suitable for being used in winter. Rolling film windows will be installed on both top and all around, good ventilation. This type can be used for planting crops.

Greenhouse specifications:

Span	Bay	Eave height	Total Height
7m/8m/9m/10m	4m	2.5m-4.0m	4.2m-6m

P.S.: size can be customized.

2 Single-frame double-layer film greenhouse:

Single-frame double-layer inflated film greenhouse use single-layer galvanized steel frame both on top and all around, and the top will be covered by double -layer PO film. Double-layer inflated film greenhouse is a kind of energy-saving greenhouse, compared with the single-layer film greenhouse, it has significant thermal insulation effects (general energy saving more than 30%).Double-layer inflated film greenhouse, tension rope is not needed, only fixed around the film, through air compressor machine to support the film, make the inner film tightly close to the greenhouse frame, then outside film will be isolated with the inside film, thus forming the air interlayer for good heat insulation effect. Both inside and outside the steel frame will be covered by film, good heat insulation performance, can effectively save heating energy consumption, suitable for being used in winter, rolling film windows can be installed both inside and out side all around, electric gear and rack will be used for opening the skylight to reach good ventilation.

Greenhouse specifications:

Span	Bay	Eave height	Total Height
7m/8m/9m/10m	4m	2.5m-4.0m	4.2m-6m

P.S.: size can be customized.

3 Single-Layer film multi-span greenhouse
Single-layer film greenhouse use single-layer hot galvanized steel frame, it will be covered by single-layer PO film on top and all around. Heavy snow and wind load design, strong drainability, commonly used in spring, summer and autumn. The greenhouse can be assemble with rolling film windows, external sunshade and cooling system.

Greenhouse specifications:

Span	Bay	Eave height	Total Height
7m/8m/9m/10m	4m	2.5m-4.0m	4.2m-6m

P.S.: size can be customized.

Project case show:

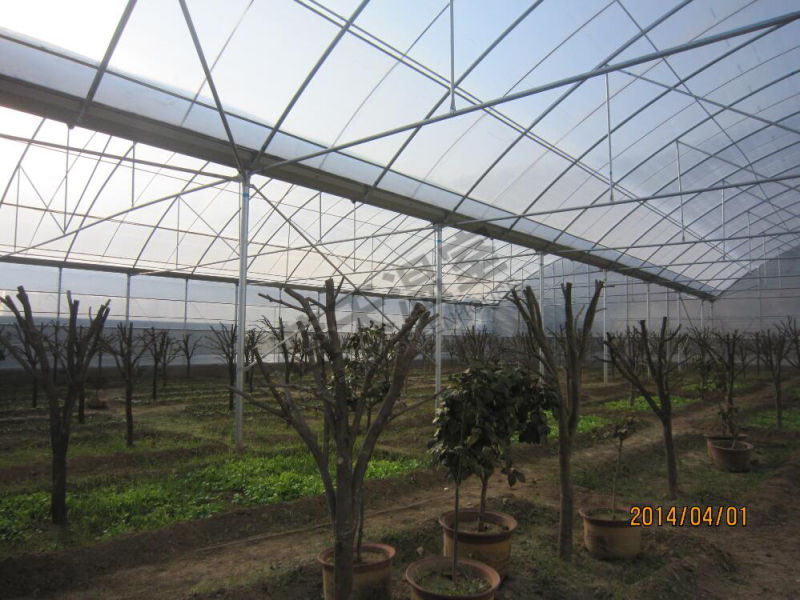

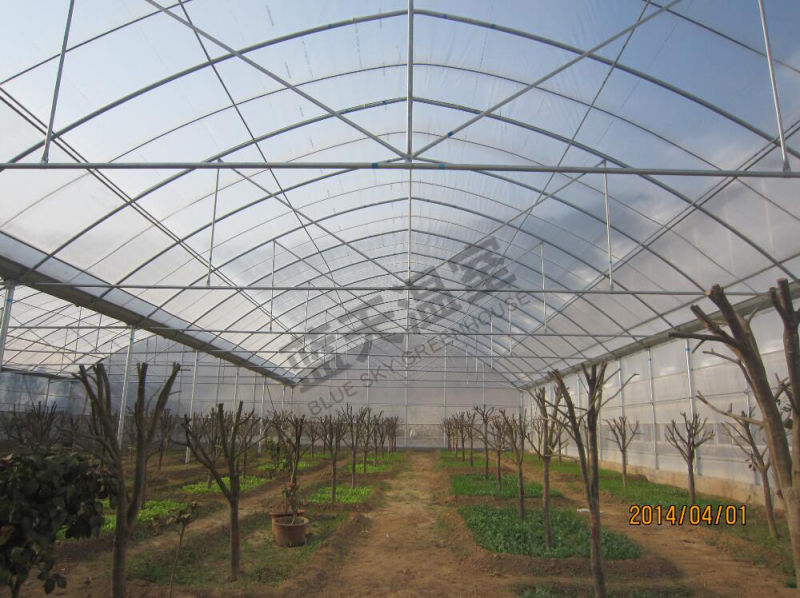

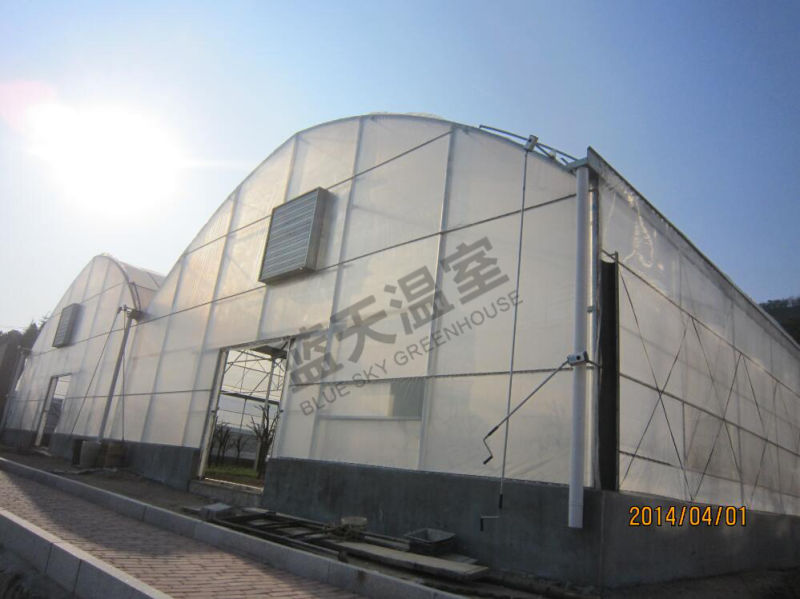

Arch Structure Multi-Span Film Greenhouse

Project Introduction:

Area: 6400 m2
Greenhouse Structure: Hoop Multi-Span Greenhouse
Cover materials: 0.8 mm PO film
Basic configuration: Steel frame, cover material, electric rolling film window, external shading, wet curtain ventilator cooling system, mobile seedbed, electronic control system

Dimension&Specification:

Span	column space	Eave Height	Top Height	Wind load	Snow load	drainability
8m	4m	3m	5m	0.45KN/m2	0.3KN/M2	140mm/h
