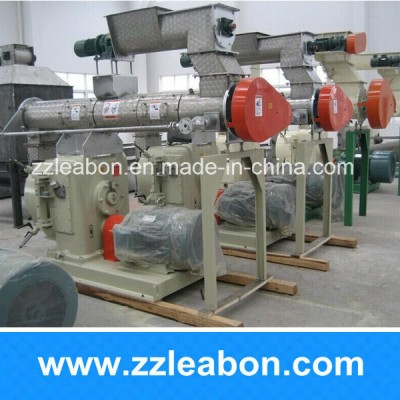

Ring Die Cattle Feed Making Machine--Zhengzhou Leabon Import and Export Trading Co., Ltd.

FOB Price:	US $1,000-8,900 / Piece
Min. Order:	1 Piece

FOB Price:

US $1,000-8,900 / Piece

Min. Order:

1 Piece

Min. Order	FOB Price
1 Piece	US $1,000-8,900/ Piece

Min. Order

FOB Price

1 Piece

US $1,000-8,900/ Piece

Basic Info

Model NO.: SZLH-250
Processing Object: Beans
Screen Mesh: With Screen Mesh
Pellet Mill Type: Ring Die Pelleter
Expanding Method: Dry Expansion
Applicable Materials Shape: Powder
Size of Material: 3-5mm
Diameter of Feed Pelelts: 1.5/2/2.5/3///3.5/4/6/8mm
Warranty: 2years(Except Spare Parts )
Technical Support: Engineer Can Serve Oversea
Keywords: Cattle Feed Making Machine
Specification: CE /SGS/ ISO
HS Code: 8438800000

Type: Pellet Mill
Processing Technics: Crushing-before-Mixing
Grinding Equipment Type: Feed Hammer Mill
Bulking Machine Type: Sigle Screw Bulking Machine
Condition: New
Raw Materials: Beans/Corn/Fish Meal/Meat/Fish Bone/Graass/Wheat
Moisture Content of Material: 10-20%
Length of Feed Pellets: Adjustable
Certification of The Machine: CE/SGS/ISO
Payment Terms.: T/T, L/C
Trademark: LEABON
Origin: Henan, China

Product Description

Main data of cattle feed making machine

Model: SZLH-250						Model: SZLH-320
Capacity: 1500-2000Kg/Hour						Capacity: 2000-3000Kg/Hour
Motor Power: 22Kw						Motor Power: 37Kw
Power of Screw Feeder: 0.55KW						Power of Screw Feeder: 0.75KW
Power of Conditioner: 2.2KW						Power of Conditioner: 2.2KW
Inner Diameter of Ring Die: 250mm						Inner Diameter of Ring Die: 320mm
Die Mould Size : ¢1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm.
Weight: 1000KGS						Weight:1500kgs
Dimension:2.40.91.5M						Dimension:2.711.8M

Introducing for cattle feed making machine

. Gear directly-connecting driving is adopted for high efficiency;

2. Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

3. LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

4. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life.
