Screw Fish Feed/Food Mill Extruder Machine--Zhengzhou Leabon Import and Export Trading Co., Ltd.

FOB Price:	US $1,000-10,000 / Piece
Min. Order:	1 Piece

Min. Order	FOB Price
1 Piece	US $1,000-10,000/ Piece

Basic Info

Model NO.: DGP-90B
Processing Object: Additive
Screen Mesh: Without Screen Mesh
Pellet Mill Type: Screw Granulator
Expanding Method: Dry Expansion
Applicable Materials Shape: Powder
Size of Raw Materials: 60-80mesh
Suitable for: Fish Feed,Dog Feed, Cat Feed, etc.
Capacity Range: 100kg, 300kg, 500kg, 1000kg, etc.
Machine Colors: Customized Accept
Keywords: Pet Feed Mill Extruder
Specification: CE, SGS, BV, ISO
HS Code: 8474802000

Type: Pellet Mill
Processing Technics: Crushing-before-Mixing
Grinding Equipment Type: Feed Hammer Mill
Bulking Machine Type: Sigle Screw Bulking Machine
Condition: New
Size of Final Feed: 1-12mm
Shape of Final Feed: Pellet,Bone,Croos,Food Print,Round, etc.
Moisture Content of Raw Materials: 20-30%
Voltage and Herz: 380V, 50Hz; Customized Accept
Including: Electric Cabinet
Trademark: LEABON
Origin: Hebei, China

Product Description

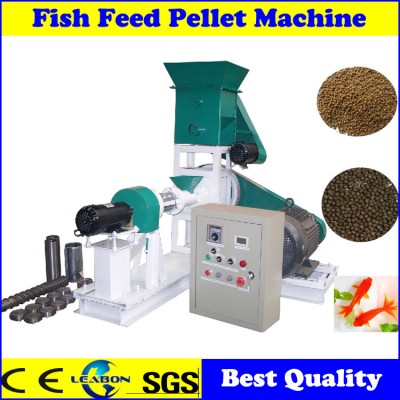

Screw Fish Feed/Food Mill Extruder Machine

1. Detail Introduction:

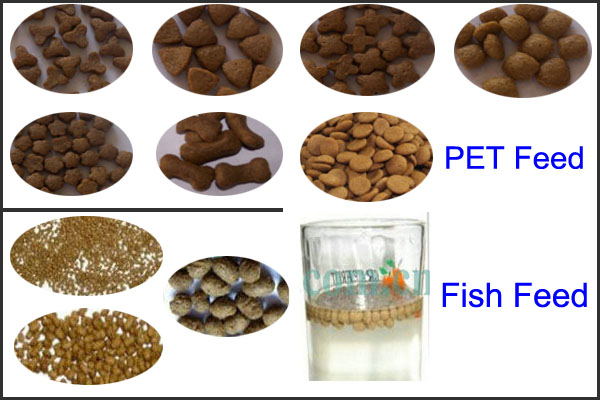

(1). Final Feed Shape and Size Selectable

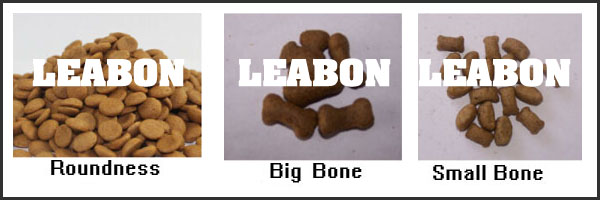

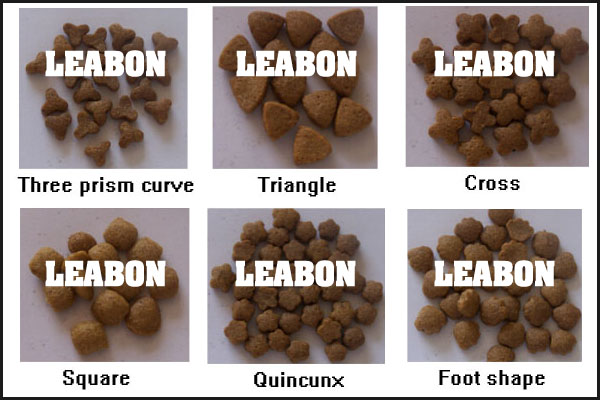

---Feed Shape: Pellet, Cross, Bone, Round, Food Print, Quincunx, etc.
Feed Size: 1-12mm.

(2). Capacity Range: 30Kg---2000kg/hour.

(3). Machine Types: Wet Type and Dry Type.
Wet Type: Used for Large capacity production line, making PET Feed or Fish Feed for Sale. need to work together with Boiler.
Dry Type: One single machine is enough for making fish or PET Feed, cheap price, Easy Control.

Screw Fish Feed/Food Mill Extruder Machine

2. Dry Type Specifications:

Model	Capacity	Main Power	Feeding Power	Cutting power	Screw Diameter
DGP40-C	0.03-0.04T/H	5.5	0.4Kw	0.4kw	φ40mm
DGP50-C	0.06-0.08T/H	11	0.4Kw	0.4kw	φ50mm
DGP60-C	0.12-0.15T/H	15	0.4Kw	0.4kw	φ60mm
DGP70-B	0.18-0.2T/H	18.5	0.4Kw	0.4kw	φ70mm
DGP80-B	0.2-0.25T/H	22	0.6Kw	0.6Kw	φ80mm
DGP90-B	0.32-0.35T/H	30	0.6Kw	0.8Kw	φ90mm
DGP120-B	0.5-0.6T/H	55	0.8Kw	2.2Kw	φ120mm
DGP135-B	0.7-0.8T/H	75	0.8Kw	2.2Kw	φ133mm
DGP160-B	1-1.2T/H	90	1.5Kw	2.2Kw	φ155mm
DGP200-B	1.8-2.0T/H	132	1.5Kw	3Kw	φ195

3. Wet Type Specifications:

Items	Capacity t/h	Main Power kw	Feed Power kw	Screw Diameter mm	Cut Power kw	Conditioner Power kw	Machine Size (mm)	Weight (kg)
DSP60-B	0.18-0.2	15	0.4	Φ60	0.4	0.75	178011501300	500
DSP70-B	0.25-0.30	18.5	0.6	Φ70	0.6	0.75	246015501740	940
DSP80-B	0.35-0.40	22	1.1	Φ80	0.8	1.1-1.5	265014501750	1050
DSP90-B	0.50-0.60	37	1.1	Φ90	1.1	2.2	270018001200	1900
DSP120-B	0.70-0.80	55	1.1	Φ120	1.5	2.2-3.0	320019501900	2100
DSP135-B	1.0-1.2	75	1.5	Φ135	2.2	3.0-4.0	375019801800	2250
DSP160-B	1.8-2.0	90	2.2	Φ155	2.2-3.0	4.0-5.5	660028002330	4100
DSP200-B	3.0-4.0	132	2.2	Φ195	3.0-4.0	5.5	660029502400	5100

Multifunctions Feed Making Machine, which is could producing PET Feed and Fish/Shrimp Feed:
