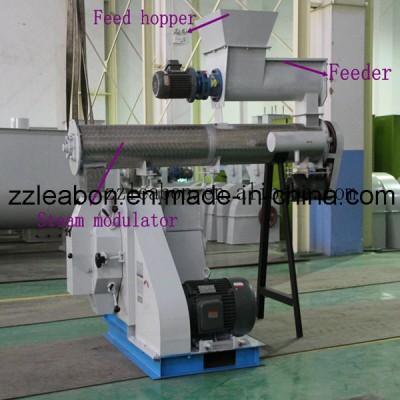

Various Size Animal Pellet Feed Press Machine
![Various Size Animal Pellet Feed Press Machine]()
1. Specifications with Various Types of Animal Pellet Feed Press Machine:
(1). Descriptions of Type A:
----Belt Drive.
----Adopt Permanent Magnet Iron Remove Device.
Type A Feed Pellet Machine |
Model | SZLH15A | SZLH20A | SZLH25A |
Capacity | 100-200Kg/Hour | 500-700Kg/Hour | 1000-1200Kg/Hour |
Motor Power | 3Kw | 11Kw | 22Kw |
Rotation Speed | 420R/Min | 306R/Min | 306R/Min |
Inner Diameter of Ring Die | 150mm | 200mm | 250mm |
Ring Die Size | ¢1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm. |
Machine Size | 0.75*0.45*0.8Meter | 1.1*1.15*1.25Meter | 1.1*1.2*1.3Meter |
Machine Weight | 175Kg | 500Kg | 625Kg |
(2). Descriptions of Type B:
----Belt Drive.
----Adopt Permanent Magnet Iron Remove Device.
----Speed Control Screw Feeder Device.
Type B Feed Pellet Machine |
Model | SZLH20B | SZLH25B | SZLH30B |
Capacity | 500-700Kg/Hour | 1000-1500Kg/Hour | 1500-2000Kg/Hour |
Motor Power | 11Kw | 22Kw | 30Kw |
Feeder Power | 0.75Kw | 0.75Kw | 0.75Kw |
Rotation Speed | 306R/Min | 306R/Min | 330R/Min |
Inner Diameter of Ring Die | 200mm | 250mm | 304mm |
Ring Die Size | ¢1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm. |
Machine Size | 1.1*1.15*1.52Meter | 1.1*1.2*1.55Meter | 1.35*1.3*1.6Meter |
Machine Weight | 580Kg | 710Kg | 960Kg |
(3). Descriptions of Type C:
----Steaming Device Added.
----Adopt Permanent Magnet Iron Remove Device.
----Speed Control Screw Feeder Device.
----With Stainless Conditioner on.
----Customized Conditioner Accept, Single Layer Conditioner, Double Layer Conditioner, Three Layer Conditioners,etc.
Type C Feed Pellet Machine |
Model | SZLH20C | SZLH25C | SZLH30C | SZLH35C |
Capacity | 600-800Kg/H | 1000-2000Kg/H | 1500-2500Kg/H | 3000-4000Kg/H |
Motor Power | 11Kw | 22Kw | 30Kw | 37Kw |
Feeder Power | 0.75+1.1Kw | 0.75+1.1Kw | 0.75+1.1Kw | 0.75+1.5Kw |
Rotation Speed | 306R/Min | 306R/Min | 330R/Min | 306R/Min |
Inner Diameter of Ring Die | 200mm | 250mm | 304mm | 350mm |
Ring Die Size | ¢1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 5mm, 6mm, 8mm. |
Machine Size | 1.1*1.86*1.6Meter | 1.1*1.86*1.6Meter | 1.35*1.88*1.65Meter | 1.5*1.3*1.8Meter |
Machine Weight | 720Kg | 900Kg | 1035Kg | 1200Kg |
![Various Size Animal Pellet Feed Press Machine]()
2. Applications of Animal Pellet Feed Press Machine:
(1). Different Types of Animal Feed Making Machine, with Same functions of making Pellet Feeds.
(2). Size of Pellet Feeds: Selectable from 1.5mm to 8mm; (Customized Feed Size Accepted, like 0.5mm, 1mm. Small Sized Shrimp Pellet Feed.)
(3). Wide Applications: Suitable for making Pellet Feed for Animal, Poultry, Shrimp, Fish, etc.
![Various Size Animal Pellet Feed Press Machine]()
