Aquatic Water Weed Harvesting Machine 1.Basic Parameter:
Main Parameter | Detail Description |
1.Principle Dimensions | |
Size L*W*H : | 5.8x2.2x0.8m |
Load : | 2-4t |
Harvesting width: | 1.2m |
Harvesting depth: | 1.5m |
Endurance : | 24 hour |
Garbage loading : | 600m2/h |
2. Dimension of Hull | |
L*W*H: | 5.8x2.2x0.8m |
Plate Thickness- Deck : | 3 mm |
Plate Thickness- Sides: | 4 mm |
Plate Thickness- Bottom: | 5 mm |
3. Main machine | |
Rated Power with RPM: | 22 kw |
Amount: | 1 unit |
4. Hydraulic Pump | 1 unit |
5. Hydraulic System | |
6. 6.Pilot House | |
7. Lighting System | Adjustable collection flares |
8. Conveyor Belting | |
Material : | Stainless steel |
Driven : | Hydraulic Motor |
9. Frame | |
Material: | Carbon steel |
Fasteners: | Stainless steel |
2. Main Advantage:1).Full automatic aquatic weed harvester is used for collecting the floating rubbish,aquatic weed in reservoirs,rivers and lakes.The vessel is designed for easy operation.All the collecting,stocking and transporting device can be completed by one man via operating the control desk.
2).The harvester is controlled by hydraulic system and all the hydraulic parts have high quality sealing device.The working process completely accords with environment protection requests without oil leakage and noise.
3).The harvester can automatically complete all the collecting,fishing,filtering and discharging work.All the work can be remotely controlled in the operation room.The work efficiency of the harvester is thirty times as much as people cleaning.

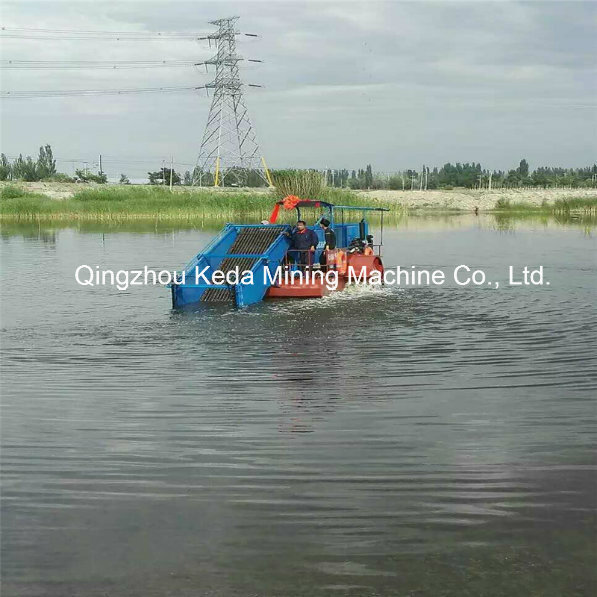

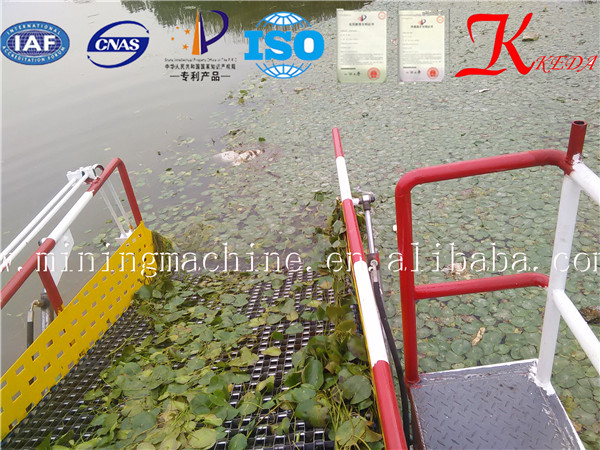

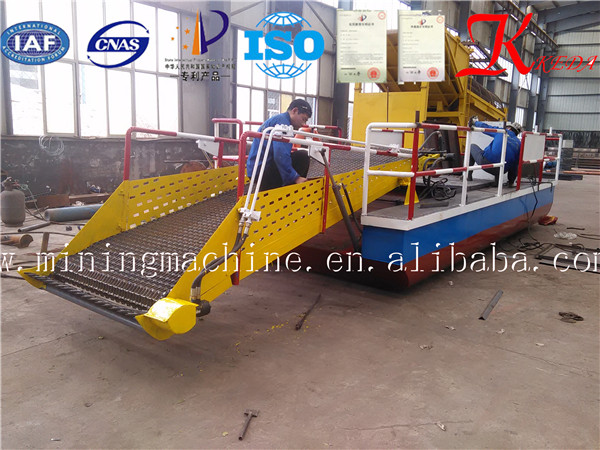

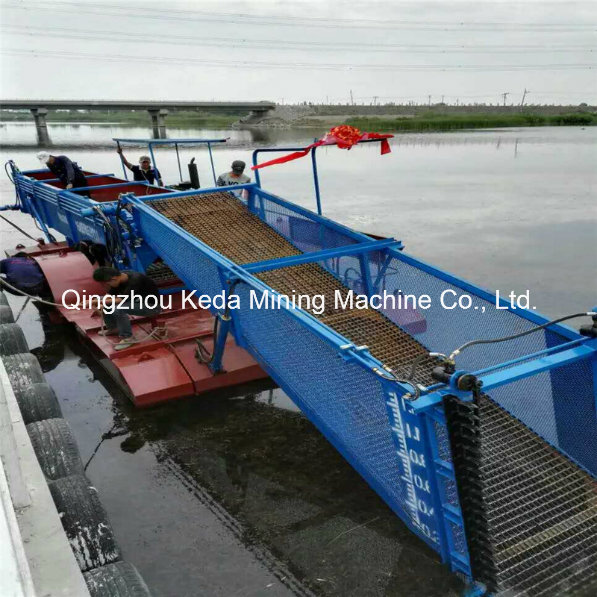

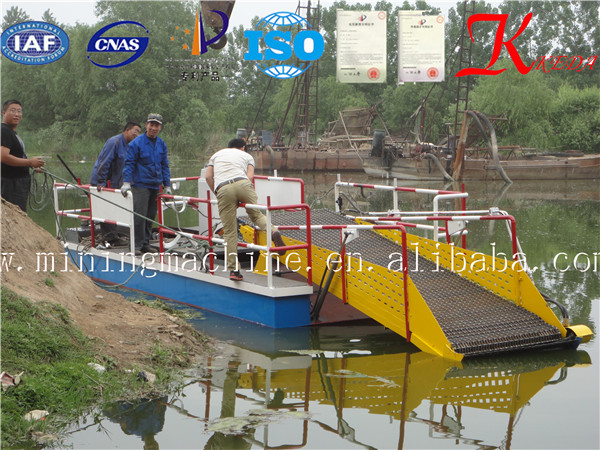

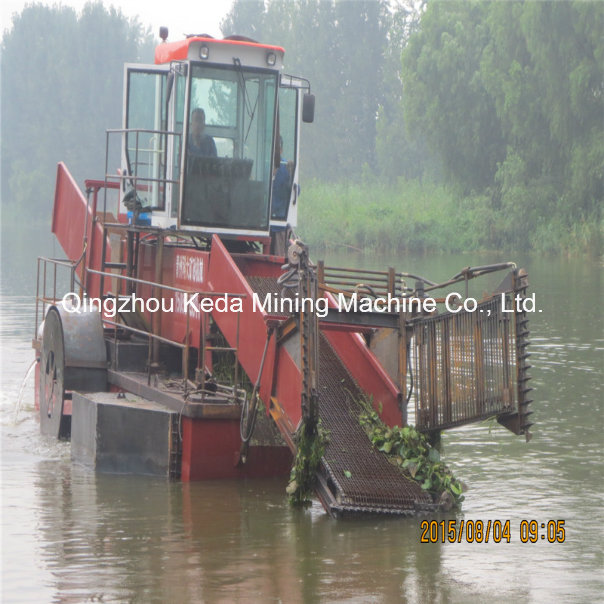

3. Deatil Images:
4. Our Service:
1) Our company signs a long-time after-sale service agreement with customers.
2) We provide rational and pratical design according to customers' request.
3) We send engineers to assemble and test the machine within the period as agreed in the contract.
4) Within warranty period, we provide free repair if quality problems emerge.
5) We provide free training of operation and maintenance for customers.
6) We supply high quality accessories in low price.
7) We make an excellent filing of customers for long-term following-up service.
