pet food extruder processing machine
Product information
Jinan Dingrun Machinery base on the market demand,to do R&D of dog food production line for various models and settings.By adjusting raw materials,temperature,moisture and other technical parameters, to make our products with characteristics of unique shape, elegant texture, plenty of nutrients, suitable for the usage of different kinds of dog.
Dog feed production equipment made by Dingrun company can produce various kinds of dog food,dog food, in order to produce high quality specialised dog food, in order to adapt various kinds of dog. Furthermore, this dog food production line can be widely used to produce dog, cat, shrimp, fox,bird and pet food production.
Dog food production line process flow:
Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Oil spraying→Flavoring→Packing
FLOW CHART:
Mixer---screw conveyor---twin screw extruder--air conveyor-----multi-layer oven---hoister--roller---oil sprayer---packing
our main production line include food extrusion machine,soya meal/meat processing machine,packaging machine,rice cake machine etc.most importantly,we also provide formula,technology supports,machine inspection service etc.
Raw material:
Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste, etc.
or to use the corn feeds, rice feeds, wheat feeds directly, then a grains grinder will be added.
![pet food extruder processing machine]()
Final products and moulds:

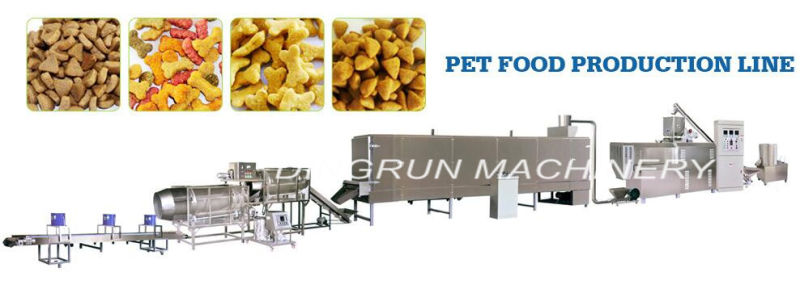

Whole production line:
grinding→mixing→extruding→drying→flavoring→cooling→packaging
![pet food extruder processing machine]()
![pet food extruder processing machine]()

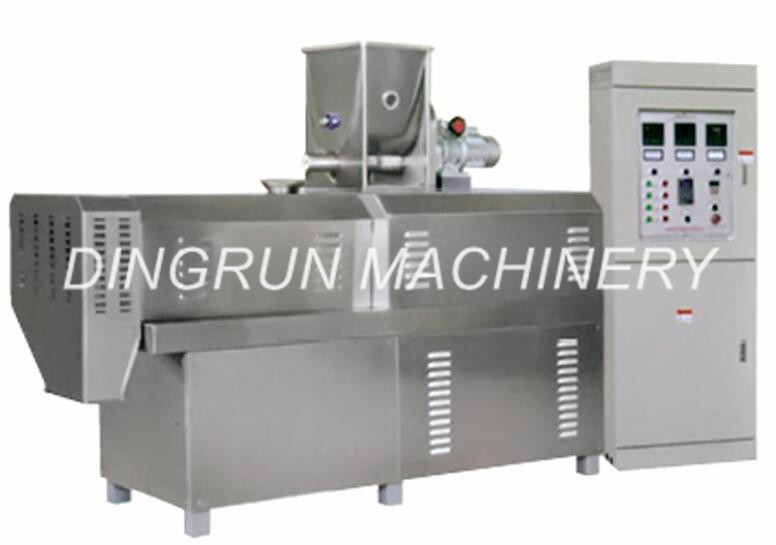

Double Screw Extruder
Model: DSE65, 70, 85, 90, 95
Capacity: from 100kg/h to 3000kg/h
1. Extruder is mainly composed of feeding, pre-conditioning, extrusion and cutting systems.
2. Main engine adopts inverter to adjust speed of screw according to changing of formula.
3. adopt building block system (BBS) to be adjustable for different technology.
4. Double-shaft pre-conditioner makes excellent result of mixing and conditioning, increasing capacity of extruder 10-15%.
5. Diameter of feed 1mm to 12mm can satisfy feed production for dog, cat, tortoise, bird, sea fish, shrimp and pet fish etc.
6.Self-cleaning, when stopping, it can be cleaned without disassembling.

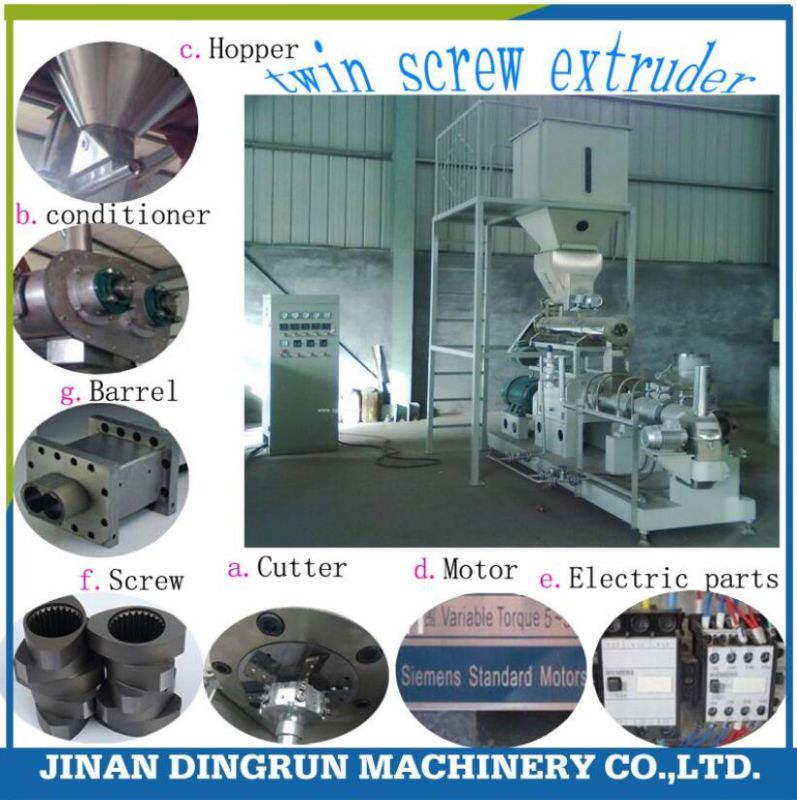

Main parts of the wet type twin screw extruder:
![pet food extruder processing machine]()
![pet food extruder processing machine]()
Dryer (electrical, steam, gas, diesel type)
Model: KX3-5, 5-5, 5-8, 5-10, 7-8, 7-10
Capacity: from 100kg/h to 3000kg/h
Belt width: 1300mm & above
Drying length: 10m~140m
Applied temperature(ºC): 30~240
Drying time: 5~30 mins
Number of fans: 3~ 16 pcs
Structure: Multiple stainless steel belt
Feeding speed: 0.05-0.5 m/s
Steam consumption (t/h): 0.4~4.0
Application scope: Food industry,Feedstuff,Agricultural Products, Application Grain,Pet Food,Fish Feed,Puffed Snacks,Soybean Chunk,Pasta,Artificial rice,Vegetarian Meat,Etc
![pet food extruder processing machine]()

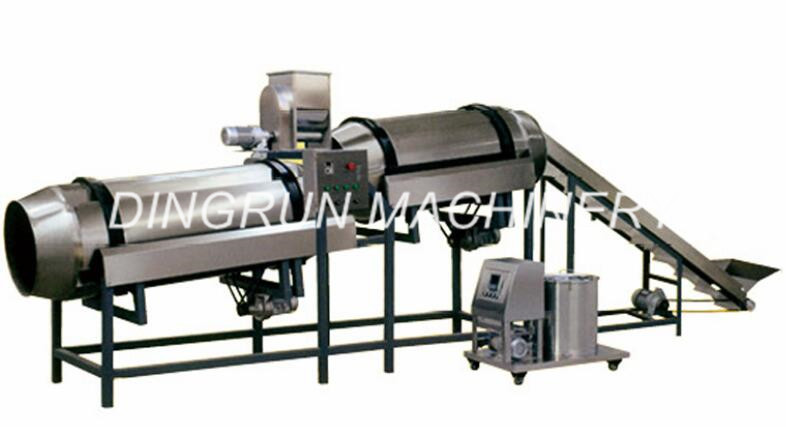

Flavoring system
including hoister, flavors feed and rolling drum
1. Fish-oil or other nutritious additives are sprayed on the surface of the pellets to improve palatability and conversion rate of feed.
2. Adopting drum pattern and oil atomization spraying system together with continuous and automatic operation.
3. Widely used for spraying fat, vitamin, substrate and medication onto the surface of extrusion feed.
Formation of dog food production line:
1. Mixer: there are many kinds of model numbers to choose base on the production capacity.
2. Conveyor: to convey mixed raw materials to the extruder machine
3.Extruder machine: to choose DSE model extruders base on the production capacity requirement from 100kg per hour to 3ton per hour. The raw material include corn powder, cereal powder, soybean powder, shrimp powder, fish meal and so on. Shape of the pellet depends on the moulds.
4. Hoister: to convey the fish food to the dryer, the height of the hoister depends on the dryer.
5. Multilayer dryer: electrical, gas, diesel, steam type, controlled by control box, temperature range 0-240ºC.Inside is stainless steel double layer mesh net. Drying time is adjustable according to speed. We have dryers of 3 layer 5 meter, 5 layer 5 meter, 5 layer 7 meter, 5 layer 8 meter, 7 layer 8 meter, 5 layer 10 meter, and 7 layer 10 meter long.
6. Flavoring line: to spray oil and phagostimulant, the equipment are: single roller, double roller, round roller, eight-angle roller. Varies depends on the different production line setting, to spray oil to the surface of the product and make it evenly.
7. Cooling conveyor: To cool the product temperature in order to pack it directly.
8. Sifter: To remove the wasted material and shapeless pellet, and ensure quality, meanwhile to ensure the reuse of material
9. Packaging machine: Manual and automatic packing machine. weight per bag according to your requirement.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Medium-sales service
*Every step of the production informed to client
*Machines produced according to client's confirmation
*Inspection and Delivery
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
