Agricultural Implements Disc Plough--Yucheng Hengshing Machinery Co., Ltd.

Purchase Qty.: (Pieces)	1-49 50-99 100+
FOB Unit Price:	US $600 US $550 US $500

Purchase Qty. (Pieces)	FOB Unit Price
1-49	US $600
50-99	US $550
100+	US $500

Basic Info

Model NO.: 1LYT-325
Application Field: Agriculture
Power Source: Tractor
Traction Type: Hanging
Arbor Configuration: Horizontal Axis
Color: Red
Nos of Disc Blade: 2
Diameter of Disc Blade: 660mm/710mm
Matched Power: 50-80HP
Trademark: YCHS
Origin: Yucheng, Shandong, China

Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Intermittent Running Operation
Drive Type: None
Certification: SGS, ISO9001
Colour: Red
Material of Discc Blade: 65mn /B Steel
Thickness of Disc Blade: 6mm/8mm
Packages: Iron Package
Specification: SGS, ISO9001: 2008
HS Code: 84321000

Product Description

Agricultural implements Disc Plough
Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc .

Advantages:
1)This tractor disc plough has the feature of not Winding grass , not block and no hip building-up.
2)The mounted disc plough is easy to cut off stems and roots .
3)Less working resistance
4)It is a mounted disc plough for 4-wheel tractor.

Specification

Model		1LY(T)-325	1LY(T)-425	1LY(T)-525	1LY(T)-625
Working width	mm	750	1000	1250	1500
Working depth	mm	250~300
Q'ty of disc		3	4	5	6
Total weight	kg	420	490	565	640
Matched power	hp	50	90	120	160
Linkage		IIThree-point suspension II type
The items selectable		/ Scraper or Heavier duty pull rod

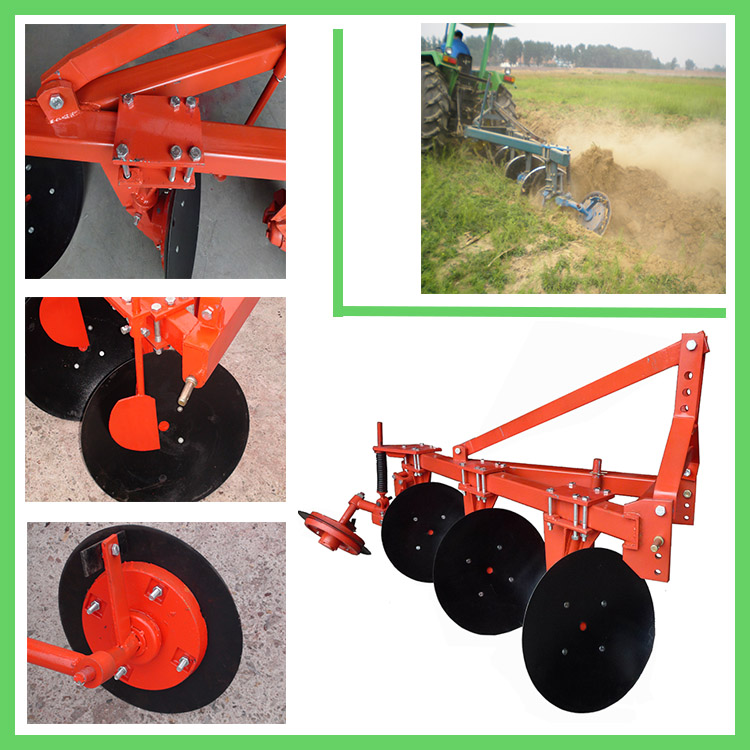

Details Showed

FAQ

Q1: Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice. 30% as prepayment and the balance when the goods are ready for shipping. Irrevocable L/C at sight could be also accepted.
Q6: What's the Payment terms?
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.
