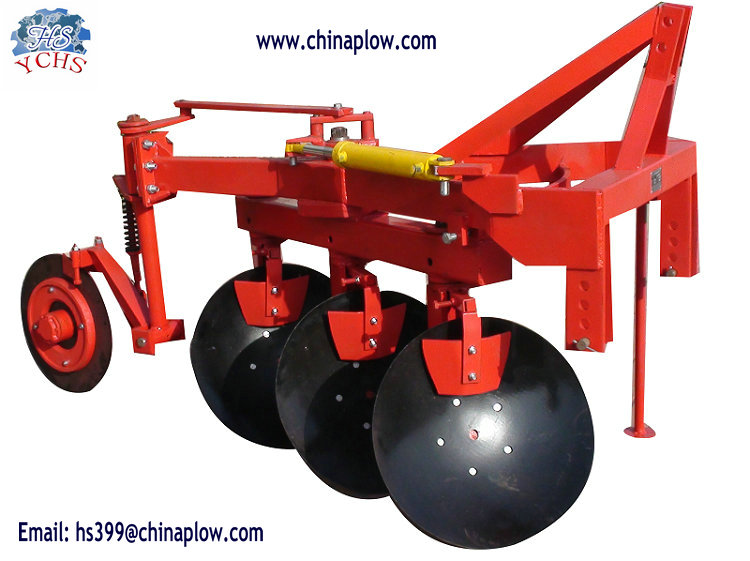

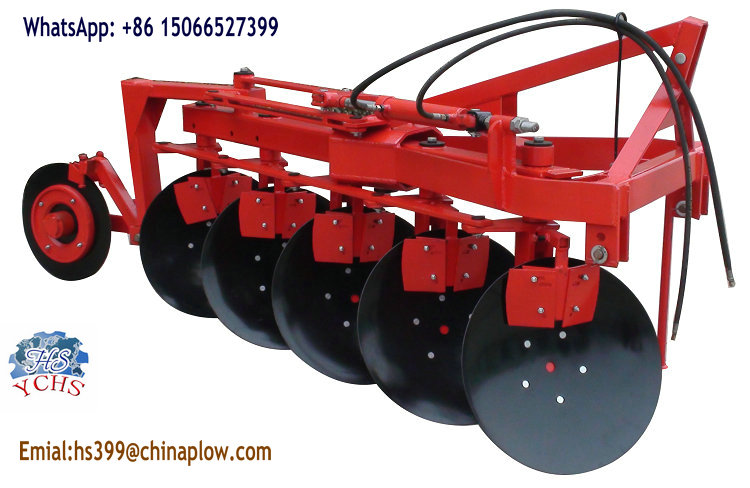

1LY(SX) Series Hydraulic reversible disc plough is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way.
Especially it is suitable for the operation in the land which has the weeds, stems, frictional soil, and small brick.
Technical Specification
•It is hydraulic double-way disk plough for 4-wheel tractor.
•Has less idle stroke.
•Less working resistance when operated.
•Easy to cut off stems and roots.
•No Winding grass, no block and no hip building-up.
Model | Unit | 1LY(SX)-325 | 1LY(SX)-425 | 1LY(SX)-525 |
Working width | mm | 750 | 1000 | 1250 |
Working depth | mm | 250~300 |
Q'ty of disc | | 3 | 4 | 5 |
Total weight | kg | 600 | 720 | 820 |
Matched power | hp | 50 | 90-120 | 130-150 |
Linkage | | Three-point suspension II type;hydraulic output(difunctional oil cylinder;oil connection in 1/2" thread |
The items selectable | | (M22*1.5/M20*1.5/M18*1.5) Scraper or oil connection (M22*1.5/M20*1.5/M18*1.5) |
![High Quality Farm Implement Hydraulic Double Way Disc Plough for USA Market]()
![High Quality Farm Implement Hydraulic Double Way Disc Plough for USA Market]()
Our services and certificate•Provide professional person to communicate with you and serve you whole course.
•Provide strict quality check for each part, each process before export.
•Provide complete technical guide after-sale services.
•Provide the model you demanded according to your drawing or sample.
•Provide the best products and all-aspect services are our eternal tenet.
ISO and SGS Certification
![High Quality Farm Implement Hydraulic Double Way Disc Plough for USA Market]()
FAQ
| Q1: Are you a factory or trading company? |
|---|
We are a factory with self-supported import and export right. |
|---|
| Q2: How can I trust on your company? |
|---|
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer. |
|---|
| Q3: Where is your factory located? How can I visit there? |
|---|
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us! |
|---|
| Q4: How can I place an order from your website? |
|---|
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers. |
|---|
| Q5: How can I make the payment? |
|---|
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Irrevocable L/C at sight could be also accepted. |
|---|
| Q6: What's the Payment terms? |
|---|
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port. |
|---|
| Q7: At which port do you usually ship the good? |
|---|
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China. |
|---|
| Q8. How about the Warranty ? |
|---|
| 12 months warranty from the time of the goods arrive at destination. |
|---|
Our Services
•Professional Sale Team to help you in whole purchase process, help you solve the language communication problems, help you finish the procedure of booking the ship, delivery, clean the customs.
•Perfect after-sale Constitution to solve each items after sale to meet the need from customers.
•Keep the Good quality and On-time Delivery.
