Quick Details
Place of Origin:
China (Mainland)
Product Description
Basic Info
- Model NO.: 1LYSX-525
- Application Field: Agriculture
- Power Source: Tractor
- Traction Type: Hanging
- Arbor Configuration: None
- Color: Red
- Trademark: YCHS
- Specification: SGS, ISO9001: 2008
- HS Code: 84321000
- Type: Disc Plough
- Farming Policy: Dry Cultivating Machinery
- Operation: Soil Preparation Machinery, Movable Operation
- Drive Type: Gear Drive
- Certification: SGS
- Matched Power: 50HP
- Transport Package: Iron Box
- Origin: Shandong, Yucheng
Product Description
Agricultural hydraulic double way disc ploughProduct descriptionFarm tractor disc plow for sale is specially designed by Yucheng Hengshing Machinery Co.,Ltd. which is the farm machineries supplier for Shifeng, SJH, BOMR, ShuHe, DF, LOVO, JM, YTO, TS, WU ZHENG, TN, DONG QI. It is matched with four wheel tractor,the discs of plough are revolving to furrow the land during operation.,it can come true the plowing work in double way. Especially suitable for the operation in the land which have the weeds, stems, frictional soil , small brick Advantages It is hydraulic double-way disk plough for 4-wheel tractor
Has Less idle stroke
Less working resistance when operated
This Double Way tractor disc plough is easy to cut off stems and roots .
No Winding grass ,no block and no hip building-up.
This mounted hydraulic disc plough has own hydraulic system to keep the working in double way.
Technical parameter| Model | | 1LY(SX)-325 | 1LY(SX)-425 | 1LY(SX)-525 |
| Working width | mm | 750 | 1000 | 1250 |
| Working depth | mm | 250~300 |
| Q'ty of disc | | 3 | 4 | 5 |
| Total weight | kg | 600 | 720 | 820 |
| Matched power | hp | 50 | 90-120 | 130-150 |
| Linkage | | Three-point suspension II type;hydraulic output(difunctional oil cylinder;oil connection in 1/2" thread |

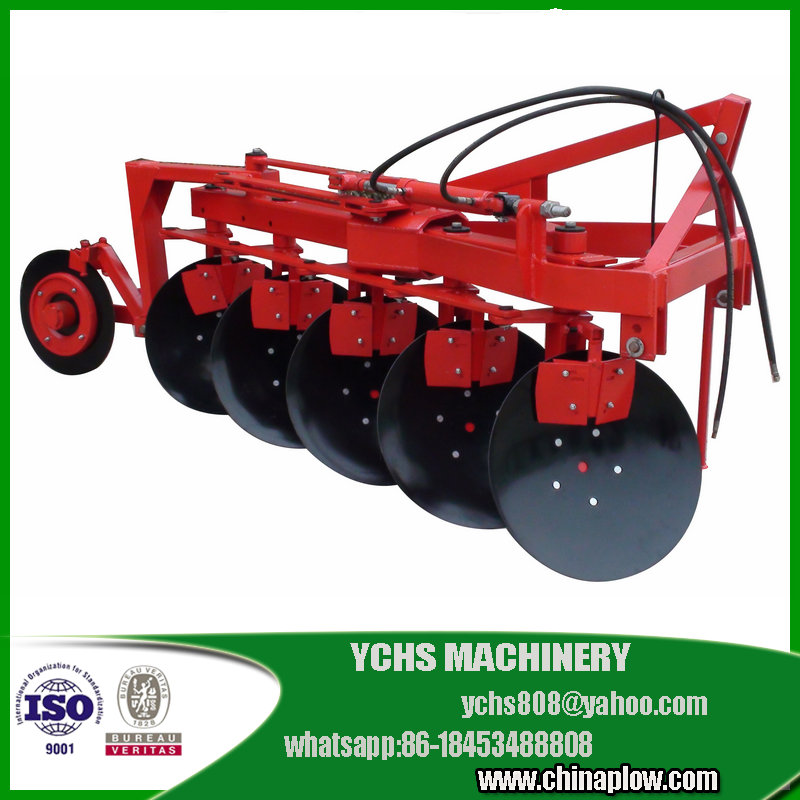

Product show![Agricultural Hydraulic Double Way Disc Plough]()
![Agricultural Hydraulic Double Way Disc Plough]()
![Agricultural Hydraulic Double Way Disc Plough]()
Other plough![Agricultural Hydraulic Double Way Disc Plough]()
FAQ| Q1: Are you a factory or trading company? |
|---|
We are a factory with self-supported import and export right. |
|---|
| Q2: How can I trust on your company? |
|---|
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer. |
|---|
| Q3: Where is your factory located? How can I visit there? |
|---|
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us! |
|---|
| Q4: How can I place an order from your website? |
|---|
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers. |
|---|
| Q5: How can I make the payment? |
|---|
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice.
30% as prepayment and the balance when the goods are ready for shipping.
Irrevocable L/C at sight could be also accepted. |
|---|
| Q6: What's the Payment terms? |
|---|
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port. |
|---|
| Q7: At which port do you usually ship the good? |
|---|
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China. |
|---|
| Q8. How about the Warranty ? |
|---|
12 months warranty from the time of the goods arrive at destination. |
|---|
2) Professional engineers and test equipments to ensure the quality of each machine.
3) Factory direct selling at competitive prices.
4) Good parts assembled, strictly quality control system.
5) Compact structure, beautiful appearance,small volume, light weight, fuel consumption is low, the power is great
6) Start convenient easy, low noise,little vibration,smooth operation,reliable performance.
7) OEM welcome, small order acceptable, ample supply and prompt delivery.Competitive Advantages For YCHS MACHINERY1) Most kinds of models, advanced technology, long performance life.
2) We are manufacturer and we have our own export right.
3) High quality, competitive price & good after-sales service.
4) Long exporting history to many countries, positive customer feedback from abroad.
5) We can supply sample, and also all the spare parts.
6) As your design for the package and brands
![Agricultural Hydraulic Double Way Disc Plough]()
1) YCHS MACHIERY is a manufacturer, have own factories.2) The biggest advantages: Top quality, Competitive price & Good after-sales service Top quality, Competitive price, Good after-sales service" is our three big advantage.
Welcome to contact us at any moment, sincerely hope can have cooperation with you !
