Trailed Hydraulic Type Disc Harrow for Ractor Machinery Yto Tractor--Yucheng Hengshing Machinery Co., Ltd.

Purchase Qty.: (Pieces)	1-9 10+
FOB Unit Price:	US $3,000 US $2,800

Purchase Qty. (Pieces)	FOB Unit Price
1-9	US $3,000
10+	US $2,800

Basic Info

Model NO.: LCBB
Application Field: Agriculture
Power Source: Tractor
Traction Type: Traction
Arbor Configuration: None
Color: Blue
Trademark: YCHS
Origin: Yucheng, Shandong, China

Type: Disc Plough
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Continuous Running Operation
Drive Type: None
Certification: SGS
Diameter of Disc Blade: 660mm/710mm
Specification: SGS, ISO9001: 2008
HS Code: 84322100

Product Description

Hydraulic trailed disc harrow
LCBB series of heavy duty disc harrow was designed according to the Europe standard .it adopts the features on hydraulic offset modular structure, built-bearing composite design, reasonable structure, bearing seal, long life, durable, easy to transport, easy to adjust, easy maintenance ..this heavy duty harrow also can be used to clean the stubble before tillage , break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land and preserve soil moisture. It can be used as tillage machine instead of plow on the cultivated land.
Advantages:
1)It is a trailed hydraulic offset disc harrow for 80-200hp tractor such as YTO,JOHNDEER tractor.
2)This hydraulic trailed heavy disk harrow is designed in the standard, of Europe.
3)With high strength, good seal, the advantages of long life products.
4)More strong harrow frame and to be in long working life.
5)Unique design of bearing assembly can keep good seal.
6)The disc blades are for 65Mn steel and the diameter of plough disc can be 710x8mm.
Specification

Model	Unit	LCBB-2024	LCBB2428	LCBB2834
Working width	mm	2400	2800	3400
Working depth	mm	200/240	200/240	200/240
Q'ty of disc		20	24	28
		7.50-16/11L-15	7.50-16/11L-15	11L-15/400/60-15.5
Total weight	kg	1800/2000	2100/2350	2400/2700
Matched power	hp	80-120	120-160	160-200
Linkage		(38mm);1(),1/2 Trailed(trailed hole diameter 38mm) ;hydraulic output 1 type(difunctional oil cylinder),oil connection in 1/2" thread
The items selectable		7108, (M221.5/M201.5/M181.5) 7108 disc blade; oil connection (M221.5/M201.5/M181.5)

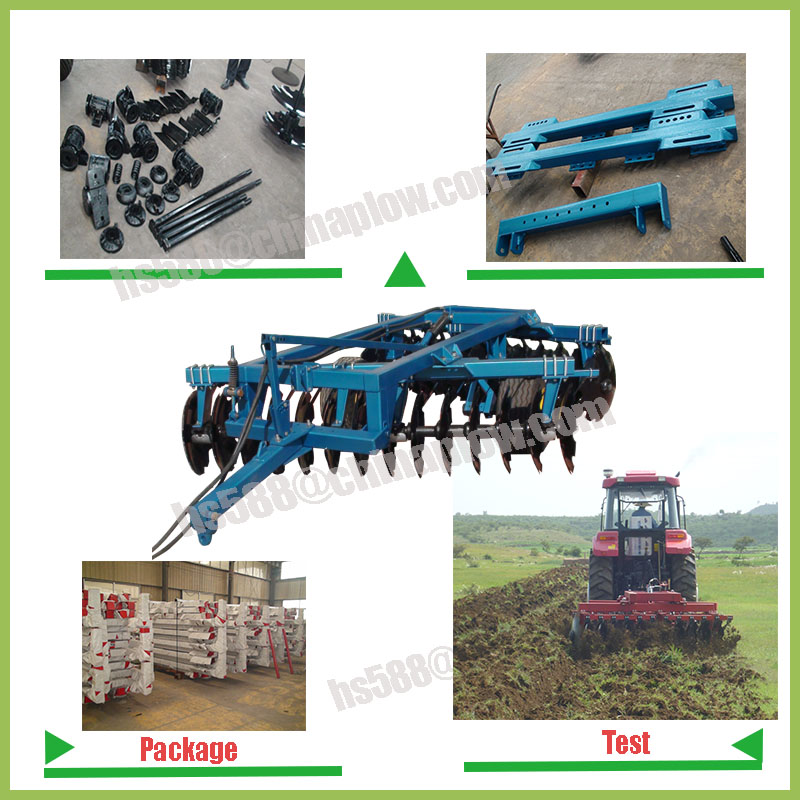

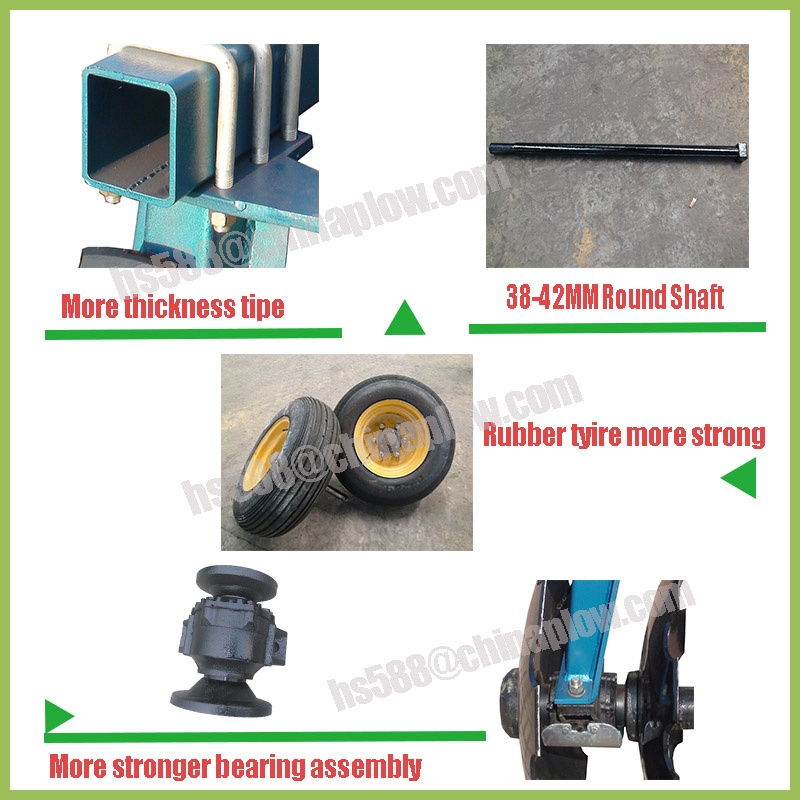

More Details Showed

FAQ

Q1: Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, our products have been exporting to a number of countries including Switzerland, Russia, Spain, Netherlands, Australia, Peru, Thailand, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can I visit there?
Our factory is located in Yucheng City, Shandong Province, China. About 1 hour away from Jinan Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
It is very easy.Once you find the implement you need on our website and place an inquiry against it, or, get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice. 30% as prepayment and the balance when the goods are ready for shipping. Irrevocable L/C at sight could be also accepted.
Q6: What's the Payment terms?
FOB, the price of the implement without sea shipment costs. CIF, including the unit cost + marine insurance + Shipment charges to your destination port. CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do you usually ship the good?
We usually ship goods via Qingdao, Shanghai, Ningbo, Tianjin port of China.
Q8. How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.

Our Main Features
1) Many years of manufacturing expenrience in the field of general machineries.
2) Professional engineers and test equipments to ensure the quality of each machine.
3) Factory direct selling at competitive prices.
4) Good parts assembled, strictly quality control system.
5) Compact structure, beautiful appearance,small volume, light weight, fuel consumption is low, the power is great
6) Start convenient easy, low noise,little vibration,smooth operation,reliable performance.
7) OEM welcome, small order acceptable, ample supply and prompt delivery.

Our Competitive Advantages
1) Most kinds of models, advanced technology, long performance life.
2) We are manufacturer and we have our own export right.
3) High quality, competitive price & good after-sales service.
4) Long exporting history to many countries, positive customer feedback from abroad.
5) We can supply sample, and also all the spare parts.
6) As your design for the package and brands

We are manufacturer,we have our own factories.
Our biggest advantages: Top quality, Competitive price & Good after-sales service

Top quality, Competitive price, Good after-sales service" is our three big advantage.
Welcome to contact us at any moment, sincerely hope can have cooperation with you !
