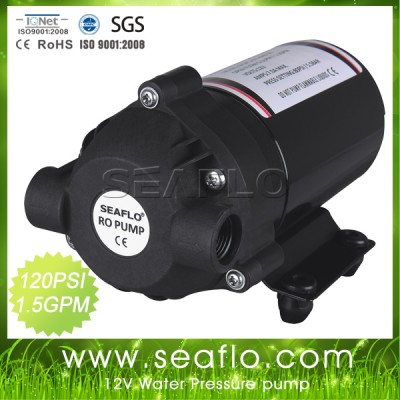

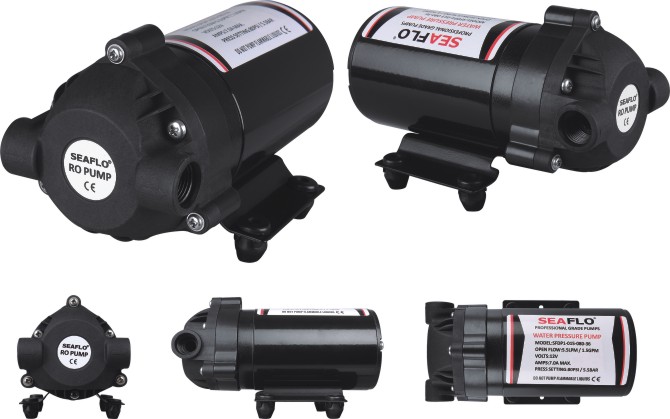

SEAFLO 24V ro water filter

Application:


Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system

How a Diaphragm Pump Works


The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber
Has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
