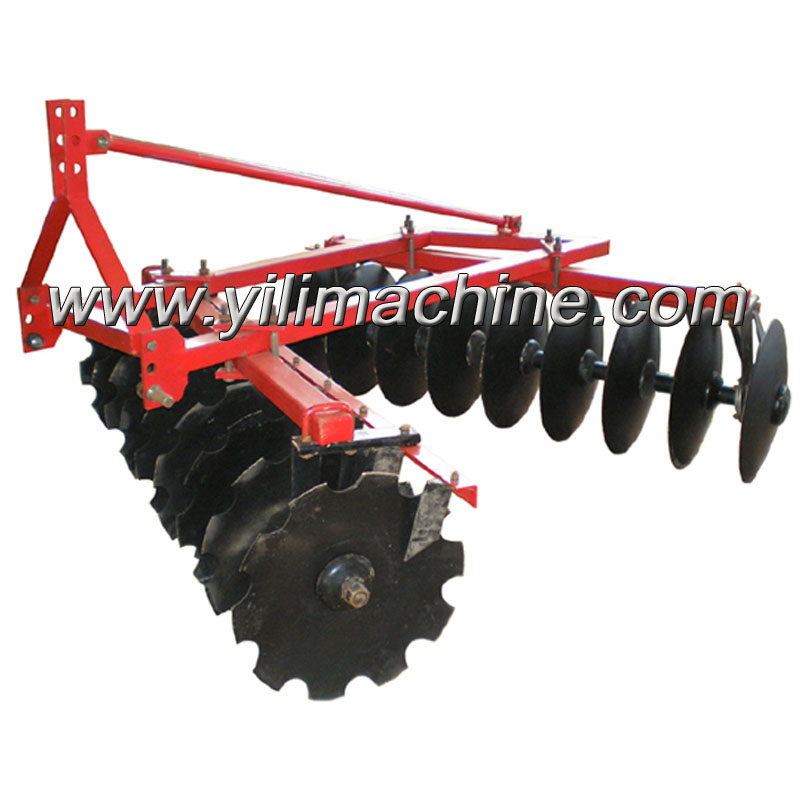

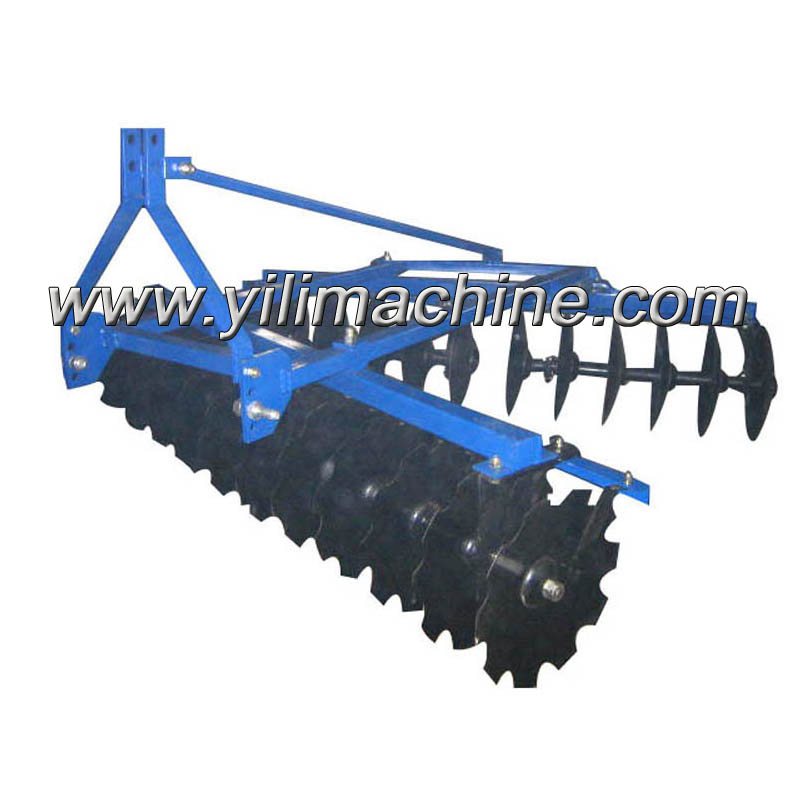

3 Point Middle Duty Disc Harrow Smoothing Harrow
3 Point Middle Duty Disc Harrow Smoothing Harrow
FOB Price: US $1,000 / Set
Min. Order: 1 Set
Min. Order FOB Price
1 Set US $1,000/ Set
Supply Ability:
0 per
Port:
Email:
Quantity:
  • Product Detils
  • Company Profile
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Product Description
Basic Info
  • Model NO.: 1BJX-2.5
  • Application Field: Agriculture
  • Power Source: Tractor
  • Use: Loosening The Land
  • Working Depth(Mm): 140
  • Trademark: yili
  • Origin: China
  • Type: Disc Plough
  • Farming Policy: Dry Cultivating Machinery
  • Operation: Soil Preparation Machinery, Movable Operation
  • Working Width(M): 1.7-4.4
  • No. of Disc: 16-40
  • Specification: Iso9001
Product Description

The middle duty series disc harrow opens and breaks up the soil surface to help prepare the soil seedbed for planting. The forward gang has aggressive notched discs while the rear gang has a choice of notched or smooth discs to quickly break up and evenly redistribute the finely cultivated topsoil. Also different types are available to satisfy the requirement of 30-100hp tractors. They have applications in homeowner landscaping, small nurseries, gardens, small hobby farms, wild game food plots, and medium-duty residential use.
3 Point Middle Duty Disc Harrow Smoothing Harrow
3 Point Middle Duty Disc Harrow Smoothing Harrow


Model


1BJX-1.7


1BJX-2.0


1BJX-2.2


1BJX-2.4


1BJX-2.5


1BJ-4.4


(m)
Working width


1.7


2.0


2.2


2.4


2.5


4.4


(mm)
Working depth


140


140


140


140


140


140


No. of disc


16


18


20


22


24


40


(mm)
Dia. of disc


560(610)


560(610)


560(610)


560(610)


560(610)


560(610)


(kg)
Weight


400


434


463


604


700


1750


(kw)
Fitted power


33


37~44


37~47.8


47.8


54.9


73.5


Linkage


(Standard three-point mounted)


(Trailed)
