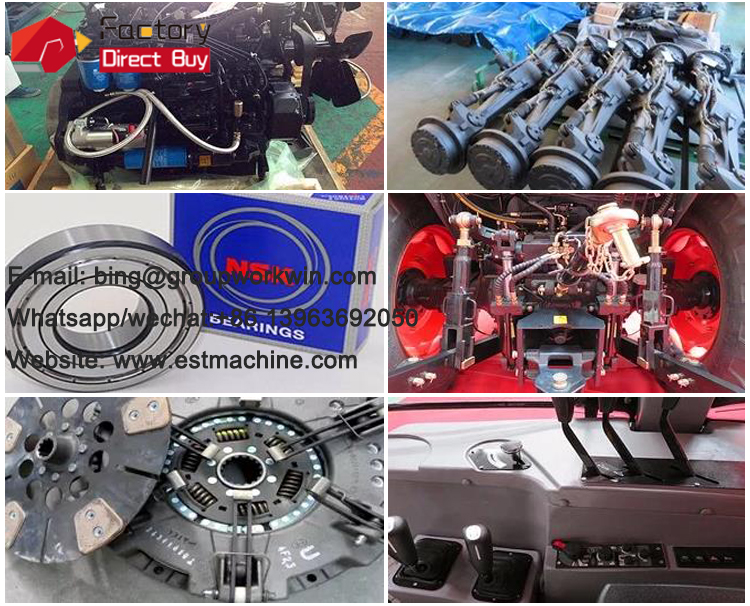

1.The famous Deutz brand engine from Germany is optional, which is more powerful, higher quality, smaller shock and lower noise.
2.The famous LUK clutch from Germany is optional, which is more torque, better wear-resisting, higher temperature resistance, better corrosion resistance and thermal conductivity.
3.The NSK axle bearing from Japan is optional, which is high precision, small friction coefficient and long service life.
4.Centralized soft shaft manipulation on the right side for a ergonomics design.
5.The hydraulic lifting device is equipped with two lifting cylinders, and the operation efficiency is higher and stronger.
6.The big horsepower type machine is equipped with the famous Chinese famous brand YunYu front axle, which has high performance and guaranteed quality.

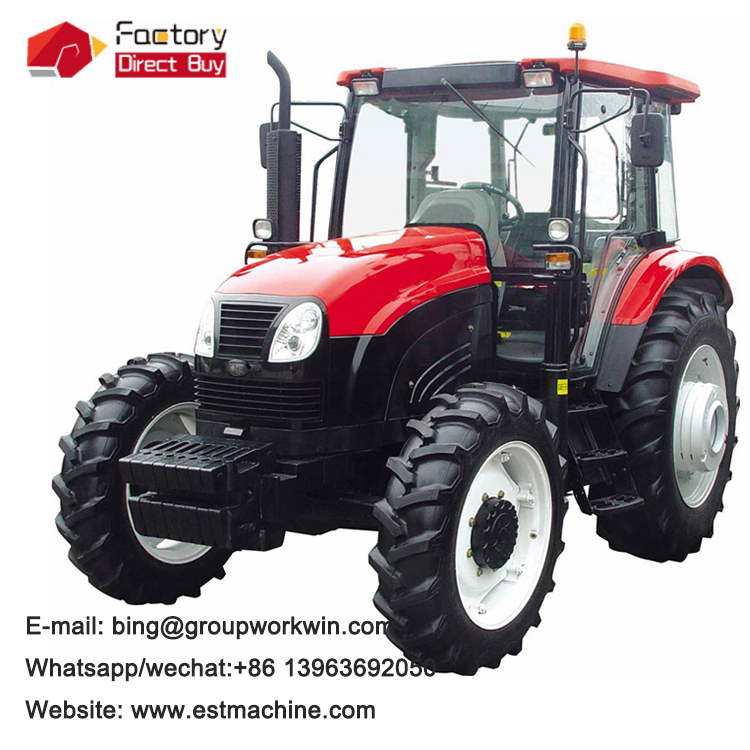

Model | WD1104 | |
Engine | Engine Power/Speed(HP/rpm) | Yuchai Engine 4 cylinders,110HP |
Engine Type | 4 cylinder, inline, water-cooling, 4 strokes, injection | |
Fuel Consumption(g/kw.h) | less than 245 | |
Total Displacement(cc) | 5910 | |
Fuel Tank Capacity(L) | 150 | |
Air Cleaner | Dry, Dual-element | |
Transmission | No. of Speed | 16+8 Creeper |
Shuttle | range shift lever(L-R) | |
Main Clutch | Double | |
Brake | Hydraulic, Disc. | |
Differential Lock | Meshing sleeve type gear | |
PTO | Type | Live-independent, hydraulic PTO with PTO brake, with clutch |
PTO Speeds(rpm) | 540/760(option 540/1000) | |
Hydraulics | 3 Point Hitch | Adjustable top link and left right rod |
Category | II | |
Control System | Position, draft(option) | |
Tires Standard | Lift capacity at 24 in behind lift point (kg) | 3213 |
4WD Front/Rear(mm) | 13.6-24/16.9-34 | |
Travelling Speed (MAX.)(km/h) | 34.9 | |
Other Features | 4WD Drive System | Bevel Gear Type |
Steering | Hydraulic Power Steering | |
Flat Board | Flat Board | |
Dimension &Weight | Overall Length(mm) | 4330 |
Overall Width(mm) | 2080 | |
Overall Height(mm) | 2870 | |
Wheel Base Front/Rear(mm) | 1620 | |
Ground Clearance (mm) | 379 | |
Tractor Weight(kg) W/O Cabin/Cabin | 3800/4100 | |

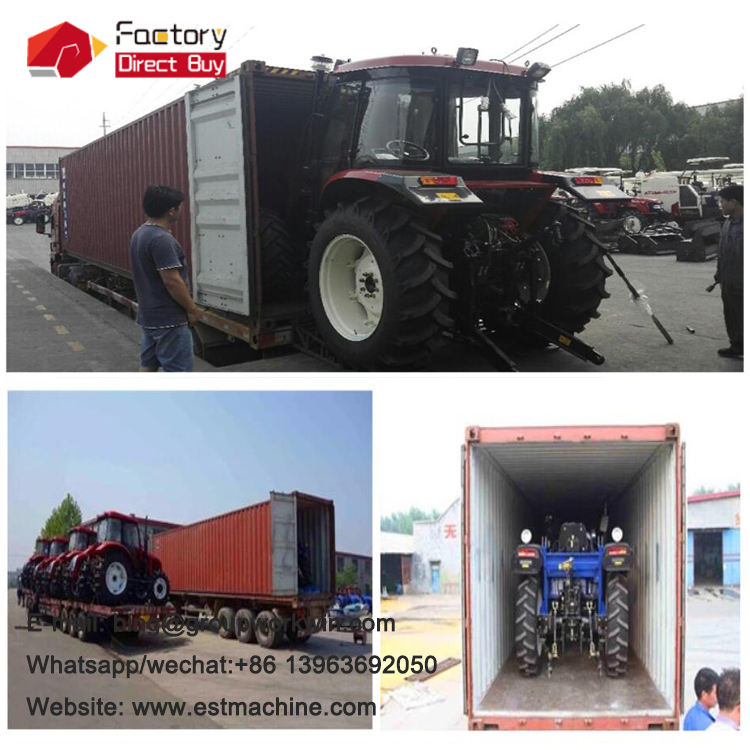

And in a 20’container, we can put 6 sets inside; in a 40’ container, the quantity will be 12 sets.
JiNan Fangli Group Work Win supply chain co., LTD., located in weifang, where the headquarters of international kite federation is located, has been providing good products and technical support and sound after-sales service for the company's development and expansion for one year.
1.What's your payment term?
Our payment term is 30% TT in advance, the balance paied off before your goods delivery to port.
2. What's your warrantly?
Our warrantly is one year after your goods delivery.
3. Where is your port?
Our nearest port is Shanghai port.
4. Can you make special stickers?
Yes. We can make stickers according to you need if you order one container.
