Product description

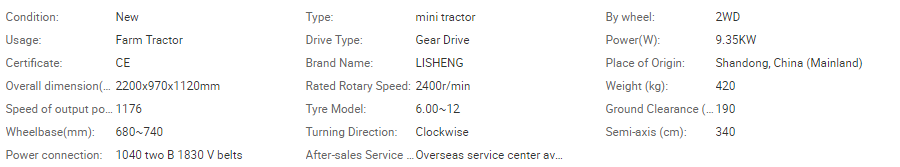

![OQM}E00AK3`U$%X6@55E]NT.png](/data/uploads/16036/2018/12/12/1544579096629132.png "1544579096629132.png")
Technical Parameters
Farm four wheel mini tractor | |
Model | LHT-12HP 15HP 18HP 20H |
Overall Dimensions:(L×W×H) | 2200×970×1120mm |
Wheel tread | 570,630,690,750,810mm |
Tyres | Front 6.00-12 |
Rear 4.00-8 | |
Skid Wheels | 2 Nos. 40Kg |
Ground clearance | 210mm |
Working weight (with rotary tiller) | 480 kg |
Speed (km/hr) | Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30 |
Reverse 1.10, 4.10 | |
Rotary tiller | Model:1GL-60 |
Whole weight: 118 kg | |
Width 600 mm | |
Transmission type: chain drive | |
Turning Speed: Low:199, High:250 | |
Number of blades: 18 pieces | |
Engine Information | |
Model | CF16N(M) |
Type | Single cylinder,4-stroke,horixontal,water-cooled,diesel |
Cooling model | Condenser (Radiator) |
Rated power | 10.29kw |
Rated speed | 2400rpm |
Fuel efficiency | ≤241.5gl/kw.hr |
Net weight | 450 kg |
Packing | Case dimensions 116×108×108c |

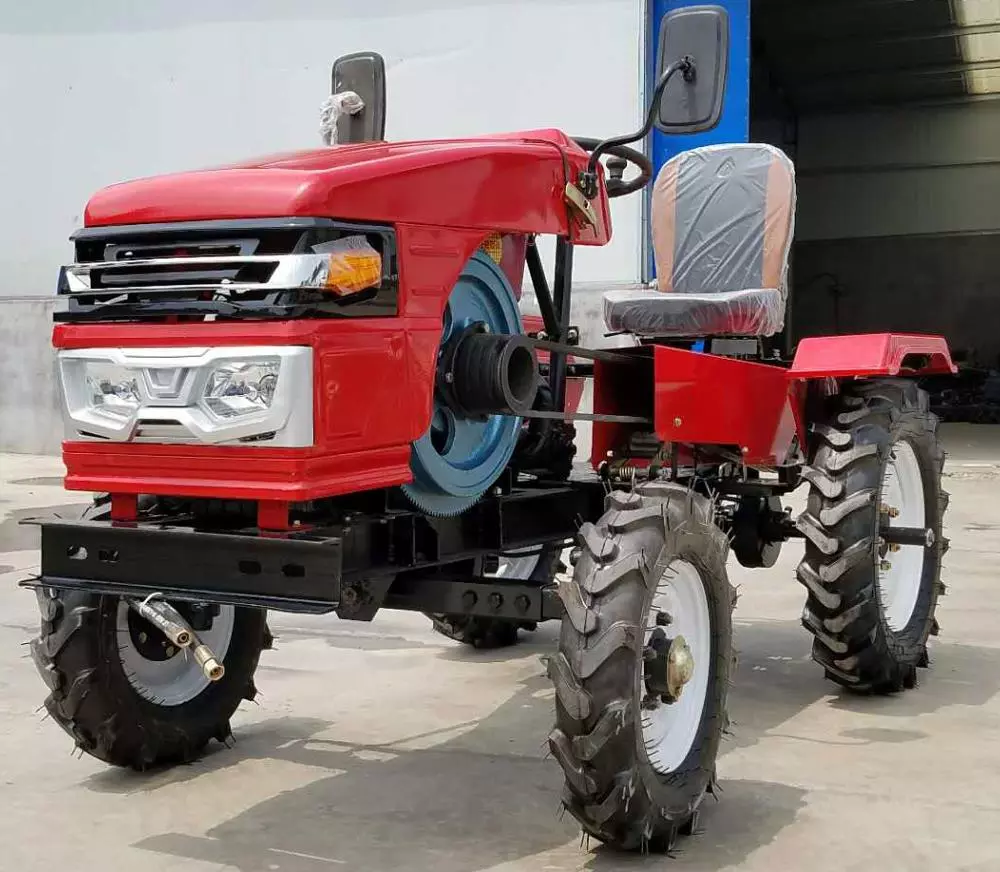

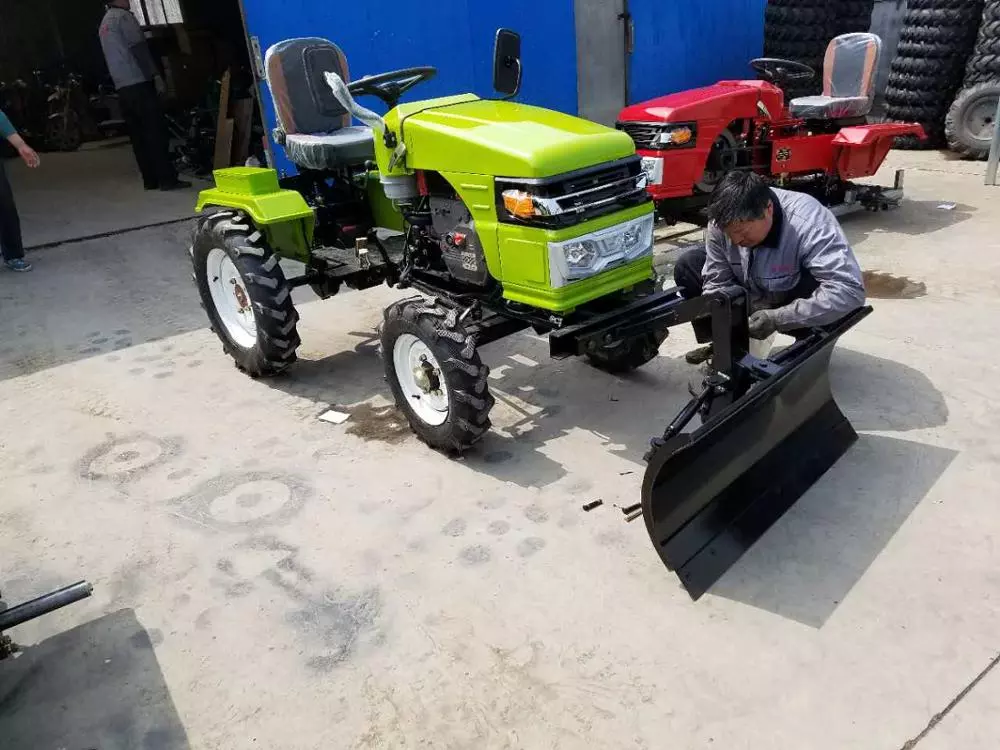

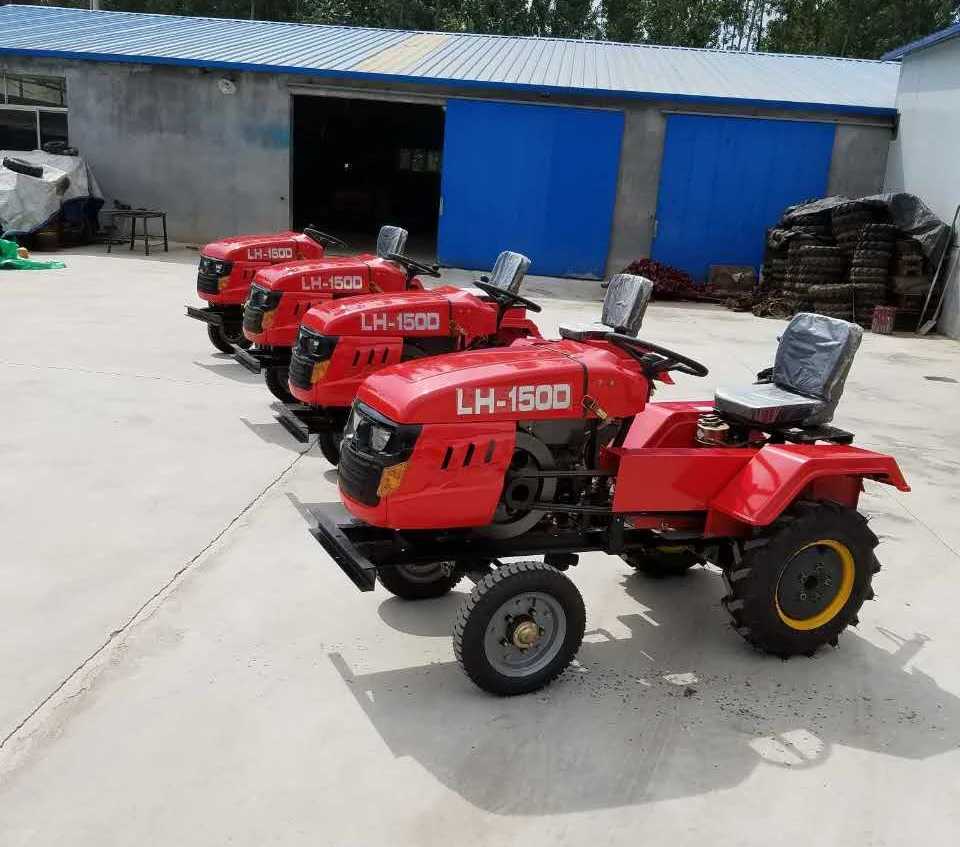

Details pictures
ProductPacking

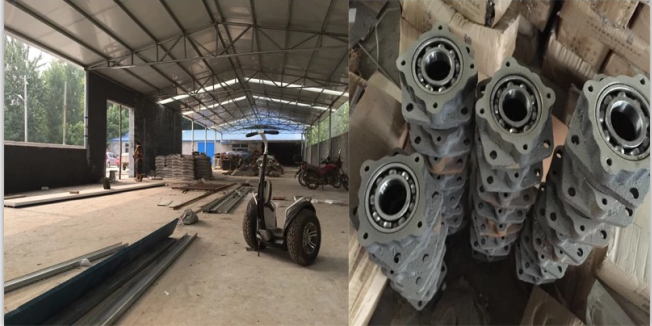

Our company
Helping enterprises to improve business development capacity and create professional e-commerce operation platform" is the goal and responsibility of weifang binhai blue double creation base.
FAQ
1Equipment Package and Delivery
Wood box or container for export machines.
2Trade Terms
Payment: T/T in advance(40% deposit, and balance rest before delivery)
Delivery Time: Within 20 days
After sales service:
Support on machine assembly and spare parts for lifetime.
