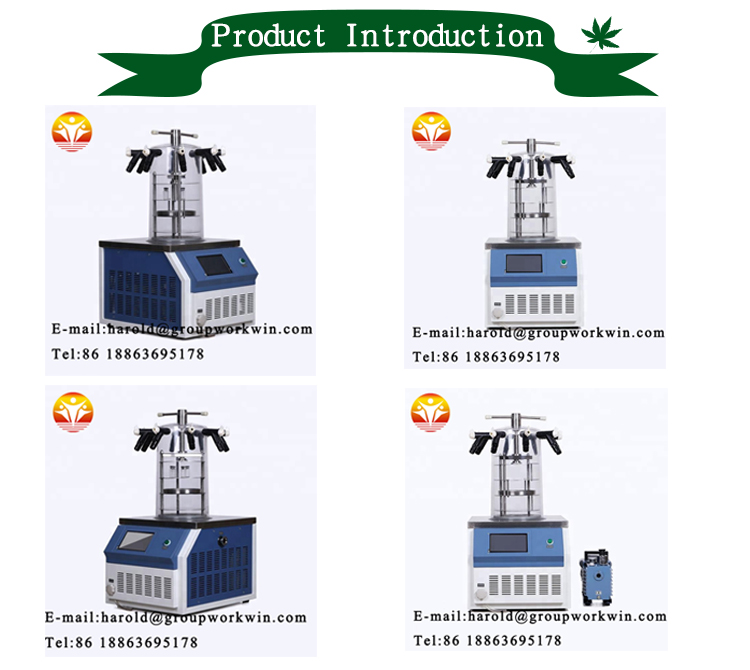

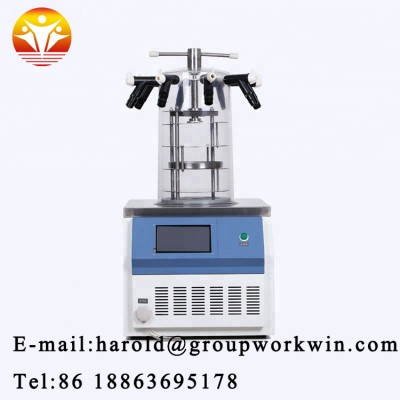

Vacuum Freeze Dryer
The vacuum freeze dryer is suitable for drying high-grade raw materials, Chinese herbal medicines, biological, wild vegetables, dehydrated vegetables, food, fruits, chemicals, pharmaceutical intermediates and other materials. Freezing vacuum drying is a new type of box structure that combines the refrigeration system, vacuum system, heat transfer oil heating system and dehumidification system into a vacuum freeze dryer. It uses the freezer vacuum drying to store the material space in the box.
Technical data of Lab Vacuum Freeze Dryer:
| Model | 10N | |
| Power Supply (V/Hz) | 220/50 | |
| Heating Power(W) | 950 | |
| Specifications | Gland manifold | |
| Freeze Area (m2) | 0.08 | |
| Sample Tray Size (mm) | Ø180*3 | |
| Plate Load Capacity (L) | 1 | |
| No-load Temperature (℃) | <-56 | |
| Vacuum Degree(Pa) | <10 | |
| Interlayer Spacing (mm) | 70 | |
| The Number of Schering Bottles | Ø22mm | 165 |
| Ø16mm | 285 | |
| Ø12mm | 560 | |
| The Number of Multiple Manifold | 8 | |
| The Number of Eggplant Shape Bottle | 8 | |
| Ability to Capture Water (Kg) | 3 | |
| Cold Trap Size (mm) | Ø 215*160 | |
| Machine Dimension (W*H*D, mm) | 450*580*380 | |

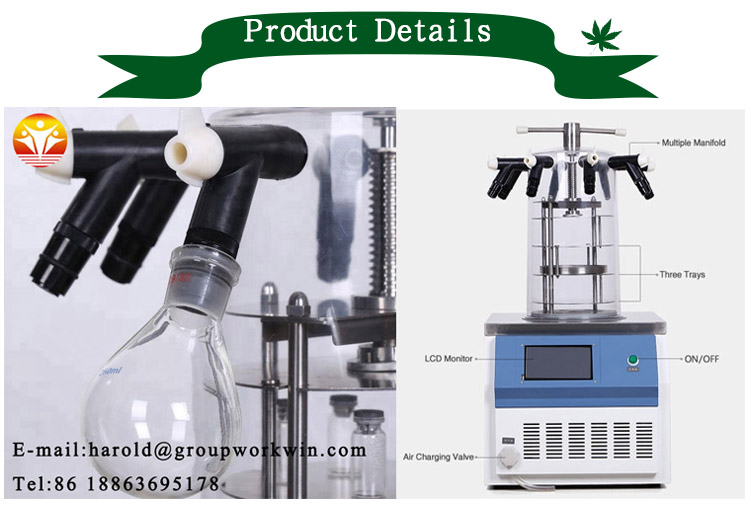

Laboratory vacuum freeze dryer features
1. Compliance with international standards for environmental protection
2.7" true color touch screen, Chinese English bilingual interface, display dry curve and historical curve
3. U disk can store freeze-dryed data
4. Upload software can print curves
5. Embedded circuit design, 128 M FLASH, can save more than ten freeze-dried data
Export wooden or carton packing
Both neutral and customized packaging can be available

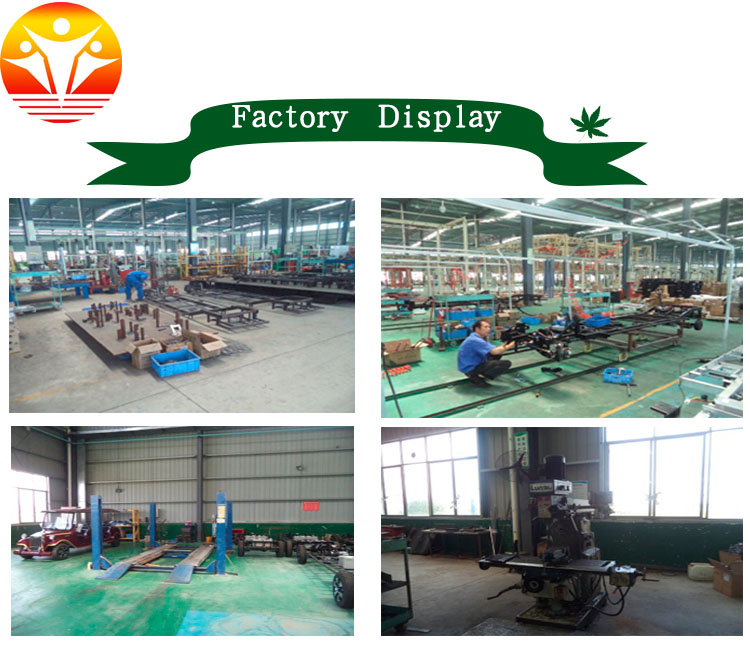

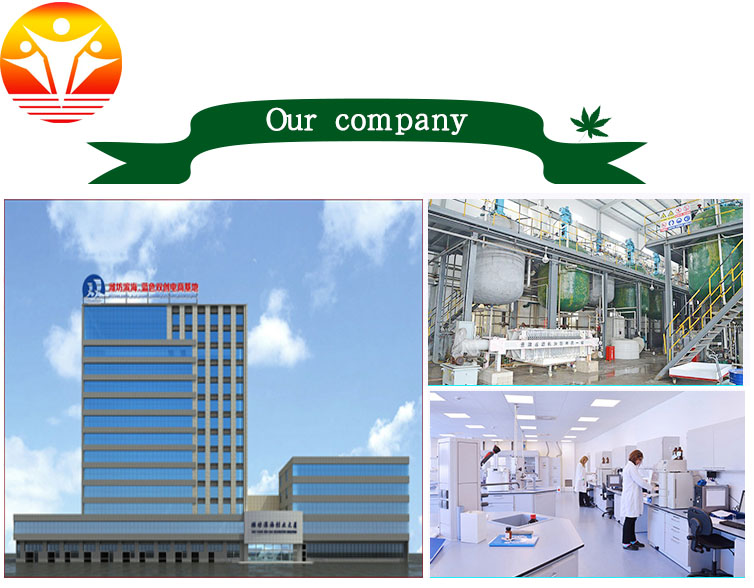

Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer
the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,
agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery
series, casting and forgings series.Our farm implements could match with domestic tractor
(FOTON,YTO),and
foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).
1.What's the minimum order quantity?
One set at present.
2. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
3.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
4.Can you accept OEM terms?
Sure.
