CF506 (4LZ-6) Wheeled Combine Harvester--Wuhan Yueruixiang Technology Co., Ltd.

Basic Info

Model NO.: CF506(4LZ-6)
Application: Rice, Wheat, Grain
Harvest method: Cutting
Transmission: Hard Shaft
Certification: ISO9001:2008
Condition: New
Operation Weight: 5200kg
Engine Power: 80-109HP
Trademark: YRX
Specification: 6100*3400*3100mm
HS Code: 8433510001

Type: Horizontal Cut Harvester
Power Source: Diesel
Drive Type: Gear Drive
Portable Harvester Type: Side Hanging Type
Color: Green
Application Field: Agriculture, Livestock, Aquaculture
Cutting Width: 2750mm
Feed Capacity: 1.02-20kg/S
Transport Package: Frame
Origin: China

Product Description

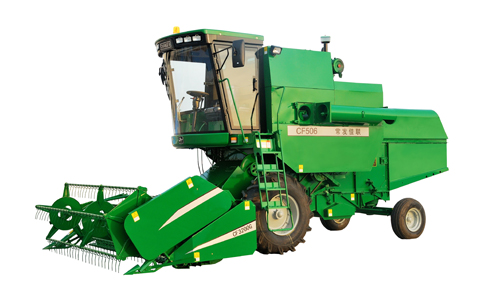

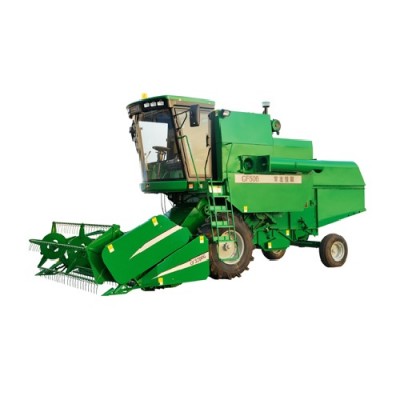

CF506(4LZ-6)Wheeled Combine Harvester

Product overview:
CF506 is a multifunctional harvester for wheat, rice and soybean, especially in wheat harvest its loss rate is less than 1% which is far ahead of all the similar types in China. It increases 15-20KG/acre than other types , with high cleanliness, is the best harvester for wheat.

Characteristics
1. With famous YUCHAI six cylinders engine, low fuel consumption, more fuel efficient, fast speed up, much strong;

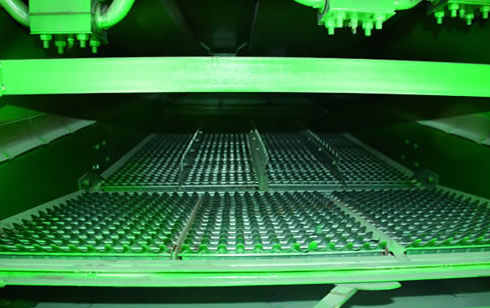

2. The world-class adjustable reciprocating vibration double scales sieve, and increase the cleaning area, cleaning performance is superior, far more than the domestic similar type;

3. According to the world-class design concept, using the stretched walkers, fully shake the straw, enhance the straw scattered, ensure crop effective separation,collect the grain fully wrapped in straw, is more adapt to separaHte wet stem;

4. World-class infinitely variable speed structure, easier to adjust the rote speed of the cutting roller. Its speed range is up to 450-1180r/min, meet all requirement of all kinds of crop threshing;

5. The world-class threshing roller, with high threshing and separation performance;
Unique design of the concave board, enlarging the threshing area and threshing performance is strong, high separation efficiency, low failure rate and so no;

6. The integral fan, high air volumn, reasonable distribution of air volumn, convenient fan speed adjustment, can be arbitrarily adjusted within 340-1060r/m, in order to achieve the best cleaning
air volume, cleaning effect is very good;

7. Using the super large cabin, a wider field of vision, humanized co-pilot seat and arrangement of control rod, make the driver control more convenient.

Model	4LZ-6(CF506)
Cutting width(m)	Wheat 2.75,3.2,Soybean 3.2,3.9
Feeding kg	6
Total losses	≤1.2(wheat)
Threshing type	Raps Bar Debugging
Length of roller (mm)	900×550
Separation device form	Biaxial four-button shakers
Separation area m	2.8
Cleaning device form	Wind screen type
Cleaning area m2	2.4
Grain tank capacity m³	2.5
Engine power KW/HP	80/(109HP)
Measurement ( transport status )	6.1×3.4×3.1
Total weight Kg	5200 (without cutting table)
Walking form	Wheeled type
Speed	1.02-20
