Basic Info

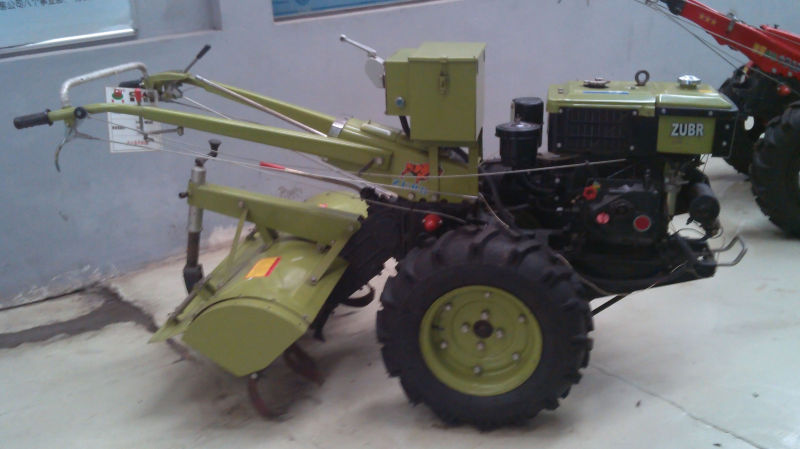

Model NO.: SH81-1E
Application Field: Agriculture
Power Source: Diesel
Traction Type: Traction
Arbor Configuration: Vertical Shaft
Color: Green
Trademark: SH
Specification: SGS
HS Code: 87011000
Type: Micro-Farming Machine
Farming Policy: Dry Cultivating Machinery
Operation: Soil Preparation Machinery, Movable Operation
Drive Type: Gear Drive
Certification: SGS
Power: 8HP
Transport Package: in Container
Origin: Shangdong
Product Description
Engine
> Rated Net Power @ 2200 rpm: 8HP
> Model: SH185N-2 Horizontal 4-strokes
> Max. Net Power @ 2000 rpm: 8.5HP
> Bore: 85mm
> Stroke: 90mm
> Displacement: 0.51L
> Net Torque: 28.6N/m
> Peak Torque: 29.8N/m
> Compression Ratio: 21: 1
> Fuel Consumption:<281.5gg/kw. H
> Oil Consumption:<4.08g/kw. H
> Speed:<800r/min
> Lubricating Way: Combined Pressure and Splashing
> Cooling System: Radiator and watertank
> Net Weight: 96Kg
> Dimensions: 740mm X 400mm X 560mm
Chassis
> Rated Traction: 1700N
> Min Distance From The Ground: 190mm
> Weight Of Chassis: 150Kg
> Type Of Clutch: Double Friction Flat Of Constant Combination
> Type Of Steering Gear: Meshing Sleeve
> Type Of Brake: Cricoids, Inside Expansion
> Triangle Belt: 3 Pieces B1800
> Capacity Of Lubrication Oil: 4.5L
> Tread: 500-700mm
> Dimensions: 2090mm X 840mm X 1340mm
Attached Agricultrual Machines
> Anti-Skid Wheel
> Rotary Tiller
> Single Plough
> Trailer
| Chassis specification | SH81 | SH101-1 | SH121 |
| Rated traction | 1600N | 1800N | 1900N |
| Min distance from the ground | 200mm | 195mm | 220mm |
| Type of clutch | Double friction flat of constant combination | ||
| Type of steering gear | Meshing sleeve | ||
| Type of brake | Crinoids inside expansion | ||
| Triangle belt | B1800 2PCS | B1900 3PCS | B1850 2PCS |
| Capacity of lubrication(L) | 4.5 | 3.4 | 4.5 |
| Tread (mm) | 500-700mm | 680-760mm | 740-800mm |
| Measurement(mm) | 2090x840x1340 | 2180x840x1310 | 2180x940x1310 |
| Weight of chassis(kg) | 140 | 165 | 180 |
| Diesel engine spec | SHR180N-2 | SH185N-2 | SH195N-2 |
| Type | Horizontal 4 stroke | Horizontal 4 stroke | Horizontal 4 stroke Direct injection |
| Cylinder bore (mm) | 80 | 85 | 95 |
| Piston stroke (mm) | 80 | 90 | 100 |
| Compression ratio | 21:1 | 21:1 | 17:1 |
| Power (kw/r.min) | 5.1/2200 | 7.3/2200 | 8.2/2200 |
| Fuel Consumption (g/kw.h) | <285.3 | <281.5 | <265.5 |
| Oil consumption (g/kw.h) | 4.1 | 4.08 | 4.0 |
| Moment (N/M) | 22.5 | 28.6 | 31.6 |
| Speed (r/min) | <800 | <800 | <800 |
| Cooling system | Radiator | Radiator | Radiator |
| Net weight (KG) | 80 | 96 | 110KG |
| Measurement (mm) | 720x380x550 | 740x400x550 | 760x400x600 |
| Implements | Rotary tiller. Single plough. Anti-skid wheel. Trailer | ||
