Basic Info
- Model NO.: GG
- Size: Large
- Layer: Single
- Iron Content: Less Than 120ppm
- Light Transmittance: Over 91%
- HS Code: 700719, 700719
- Transport Package: End-Cap or Cross Plywood Crates
- Origin: Qingdao, China
- Type: Commercial Greenhouse
- Cover Material: Glass
- Color: Ultra Clear
- Edge Work: C-Edge
- Certification: Ce, CCC, SGS, SPF
- Trademark: Migo Glass
- Specification: Low Iron Diffuse Glass
Product Description

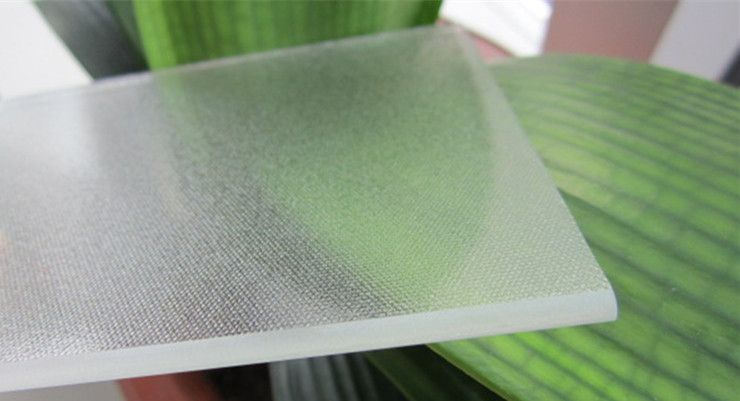

Tempered Ultra Clear Low Iron Textured Diffuse Greenhouse Glass
![Tempered Ultra Clear Low Iron Textured Diffuse Greenhouse Glass]()
Thickness: 3.2mm, 4.0mm
Applications : Roofs of Greenhouse projects
Side walls of Greenhouse projects
Glass Features
1). Patterned greenhouse glass is a kind of diffuse glass which generates the best possible light transmission by scattering the direct sunlight that enters the greenhouse. Diffusion of the light ensures that the light penetrates deeper into the interior and in between the crops, illuminating a larger leaf surface area and allowing more photosynthesis to take place. This benefits the growth and quality of the crops.
2). MIGO Low Iron Patterned Greenhouse Glass refers to 3.2mm or 4.0mm Ultra Clear Mistlite Tempered Glass. It is featured with a prismatic pattern on one side and a matt pattern on the other side.
Uneven glass surface can effectively decrease light reflection and remain very high light transmittance at any angle of incidence. Meanwhile, a lower percentage of iron oxide also reduces the light absorption of the glass. Thus, this glass is recognized as the highest quality of horticultural glass.
3). MIGO Low Iron Patterned Greenhouse Glass is fully tempered as per CCC and EN12150.
4). Diffuse glass transmits slightly less sunlight than regular glass (by a few percent), therefore it is
advisable to apply an AR coating to compensate.
Every crop is different. The most ideal conditions for a good crop yield vary by crop and location. That's why MIGO GLASS offers different types of glass for greenhouse horticulture. Depending on the crop, the location and your growing strategy, a specific type of glass will deliver the best crop results. We will be delighted to advise you on the right balance between light transmission and haze factor for your cultivation and growing conditions.
Glass Parameters
![Tempered Ultra Clear Low Iron Textured Diffuse Greenhouse Glass]()
Contact Us
To get the latest prices, feel free to email or call us (pls state clearly glass sizes, edge grinding, order quantity, destination port...).We will get in touch with you within 24 hours.
![Tempered Ultra Clear Low Iron Textured Diffuse Greenhouse Glass]()
Thickness: 3.2mm, 4.0mm
Applications : Roofs of Greenhouse projects
Side walls of Greenhouse projects
Glass Features
1). Patterned greenhouse glass is a kind of diffuse glass which generates the best possible light transmission by scattering the direct sunlight that enters the greenhouse. Diffusion of the light ensures that the light penetrates deeper into the interior and in between the crops, illuminating a larger leaf surface area and allowing more photosynthesis to take place. This benefits the growth and quality of the crops.
2). MIGO Low Iron Patterned Greenhouse Glass refers to 3.2mm or 4.0mm Ultra Clear Mistlite Tempered Glass. It is featured with a prismatic pattern on one side and a matt pattern on the other side.
Uneven glass surface can effectively decrease light reflection and remain very high light transmittance at any angle of incidence. Meanwhile, a lower percentage of iron oxide also reduces the light absorption of the glass. Thus, this glass is recognized as the highest quality of horticultural glass.
3). MIGO Low Iron Patterned Greenhouse Glass is fully tempered as per CCC and EN12150.
4). Diffuse glass transmits slightly less sunlight than regular glass (by a few percent), therefore it is
advisable to apply an AR coating to compensate.
Every crop is different. The most ideal conditions for a good crop yield vary by crop and location. That's why MIGO GLASS offers different types of glass for greenhouse horticulture. Depending on the crop, the location and your growing strategy, a specific type of glass will deliver the best crop results. We will be delighted to advise you on the right balance between light transmission and haze factor for your cultivation and growing conditions.
Glass Parameters
| Light Transmittance | 3.2mm (1/8"): 91.6%; 4.0mm ( 5/32"): 91.5% | |
| Solar Transmittance | 3.2mm (1/8"): 91.1%; 4.0mm ( 5/32"): 90.9% | |
| Thickness tolerance | ±0.2mm | |
| Dimension tolerance | ±0.5-1.0mm | |
| Diagonal difference | ≤0.1-0.2% | |
| Iron content (Fe2O3) | ≤120ppm | |
| Overall Bow/warp | <0.2% | |
| Local warp | ≤ 0.3mm / 300mm | |
| Fragmentation Test | ≥79 particles within 50x50mm EN12150 | |
| Mechanical & Thermal Characteristics | ||
| Scratch hardness | 4~5 | |
| Poisson's Ratio | 0.2 | |
| Density | 2.5×10³ kg/m³ | |
| Tensile Strength | 42N/mm2 | |
| Pressure resistance | 700-900N/mm² | |
| Four Point Bending Test | ≥146.7 N/mm² | |
| Coefficient of thermal conduction | ≤ 1.36 W/(m*K) | |
MigoGlass Competitive Advantages:
a. 20 years experience in glass production and export.
b. Direct factory price, quick delivery, professional package and container loading design.
c. Quality assurance. ISO 9001:2008 Quality System Certification. Glass products with CE certification,
SGS test reports.
d. Full range of glass supply, offering one-stop purchase.
e. Excellent sales team, offering personalized and dedicated pre-sale and after-sale service
f. Located in Qingdao, very close to Qingdao Port, greatly saving a lot of inland transportation expenses in
China
1. MOQ: 1 × 20 GP. Our salesperson can help calculate the loading quantity of a 20ft container.
2. Payment terms: T/T; 30% advance payment, 70% balance against the copy B/L.
3. Delivery time: Normally, goods will be delivered to the cargo vessel within 30 days after receiving the
advance payment. In the case of urgent order, we can deliver them within 15 days.
advance payment. In the case of urgent order, we can deliver them within 15 days.
4. Shipping port: Qingdao port
5. Samples: Small glass samples can be provided at our cost.
