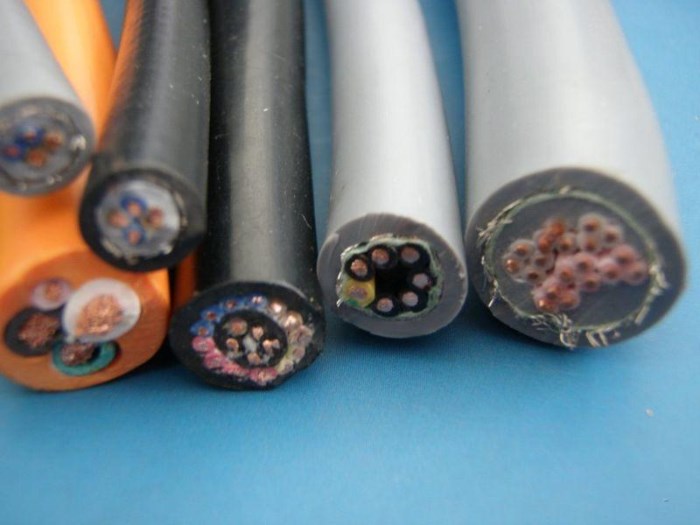

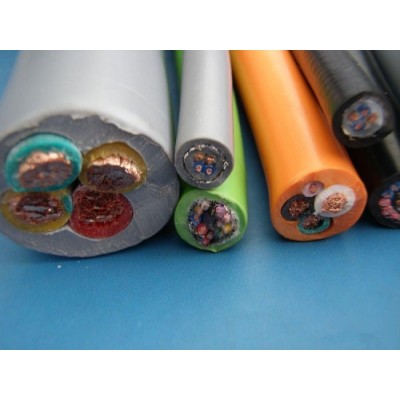

Rubber insulated power cables (wires) of rated voltages up to and including 450/750v

Product Description

Reference standards

The product is manufactured according to the standards ‘Rubber insulated cables of rated voltage up to and including 450/700V’ of JB8735, and QB ,and the same time is also manufactured according to the standard of IEC,England,Germany and America.

Application

Rubber insulated wires and cables are suitable for power device with moving installation and rated voltage up to and including 450/750V.

Operating Characteristics

Rated voltage Uo/U:450/750V\300/500Vand300/300V

Permissible continuous operating temperature of the conductor:

Max...60℃

Lowest...-35℃

YQW,YZW,245IEC57,YCW,245IEC66,245IEC82,YHF cables can be used at places contaminated by mineral oil and fuel oil.

The bending radius of cable :

D≤25mm..................................≥4D

D＞25mm..................................≧6D

(D-Diameter of the cable)


Type ,Name and range of cable

Type	Name	Rated Voltage V	No. Of core	Nominal cross-sectional area of conductor mm2
YQ	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light-duty	300/300	2,3	0.3~0.5
YQW	NR/SBR rubber insulated neoprene (CR) rubber sheathed flexible cables (wires) for light-duty	300/300	4,5	0.3~0.75
YZ 245IEC53	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle size	300/500	2,3,4,5	4~6
YZW 245IEC57	NR/SBR rubber insulated neoprene (CR) rubber sheathed flexible cables (wires) for middle size	300/500	3+1,6	0.75~6
YC	NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy-duty	450/750	1,2,3,4,5,6,3+2,4+1	1.5~300
YCW 2451IEC66	-	450/750	2,3,3+1,3+2,4+1	1.5~150
YH 245IEC81	NR/SBR rubber sheathed arc we5lding cables	-	1	16~95
YHF 254IEC82	Neoprene (CR) rubber sheathed arc welding cables	-	1	120~185

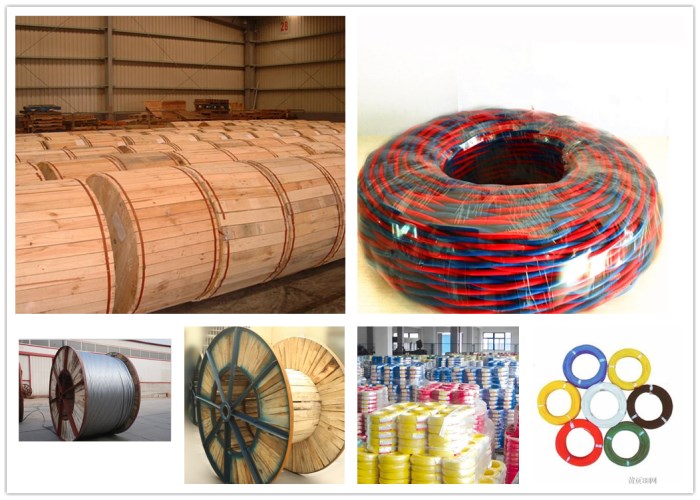

Packaging & Shipping

In coils, wooden drums, steel drums or steel-wooden drums.

We could producing according to the customers' requirements.

Welcome your request for any quotations!

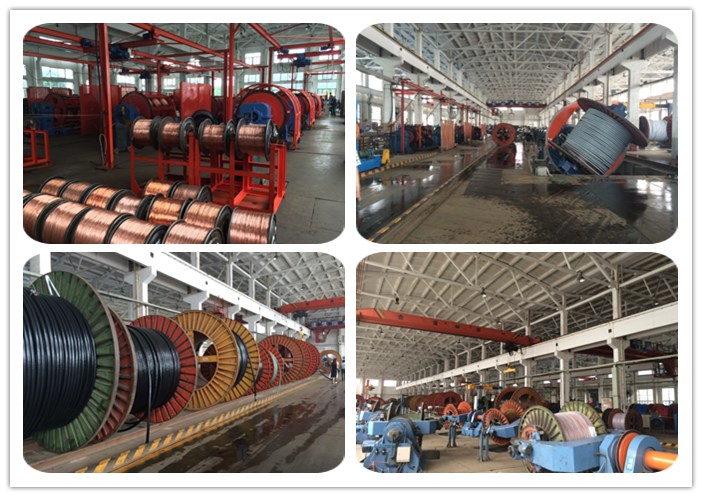

Company Information
