Product Details

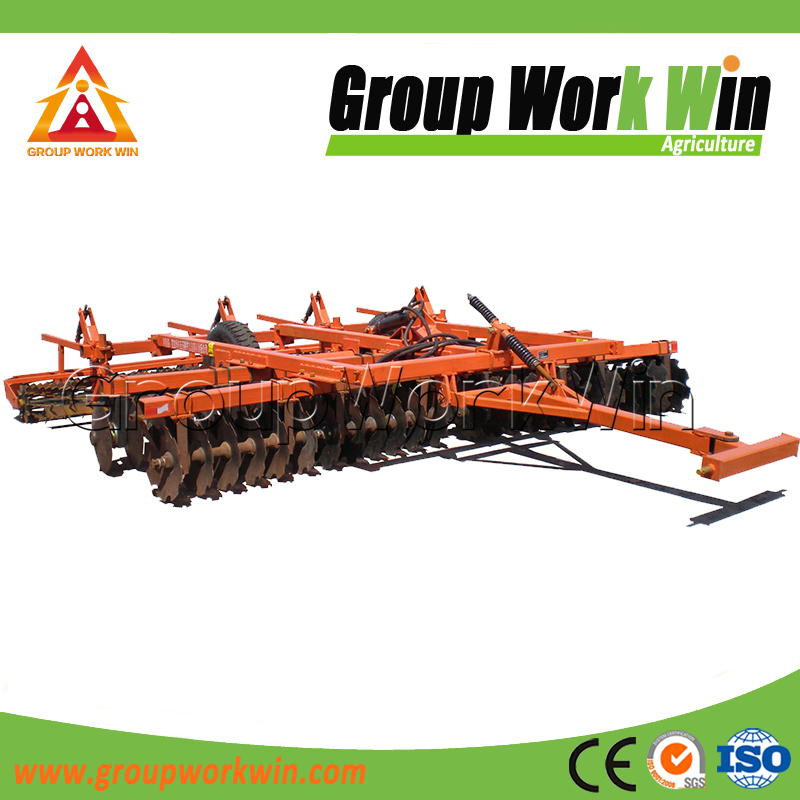

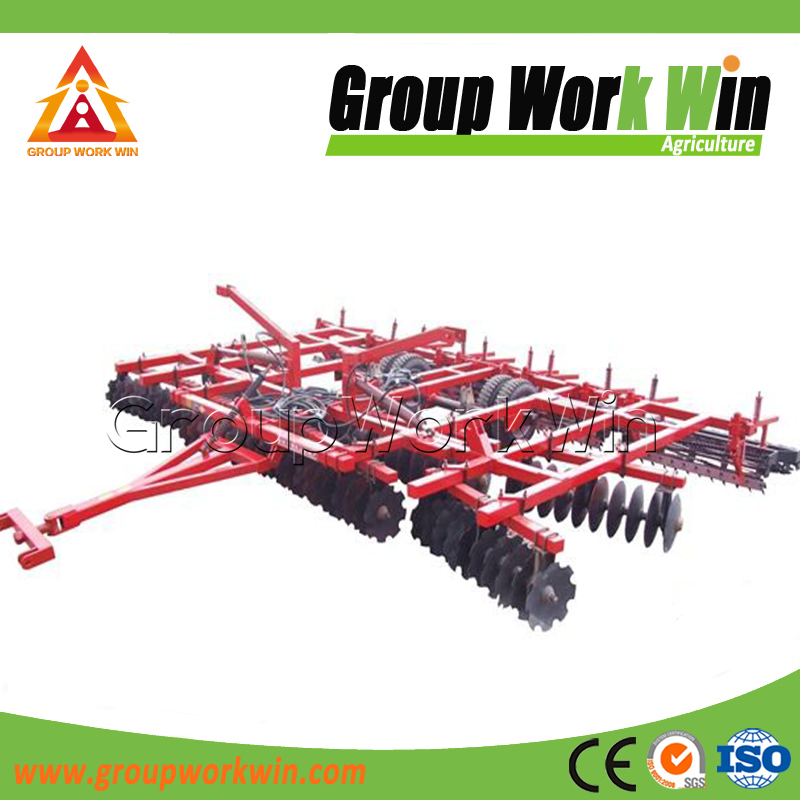

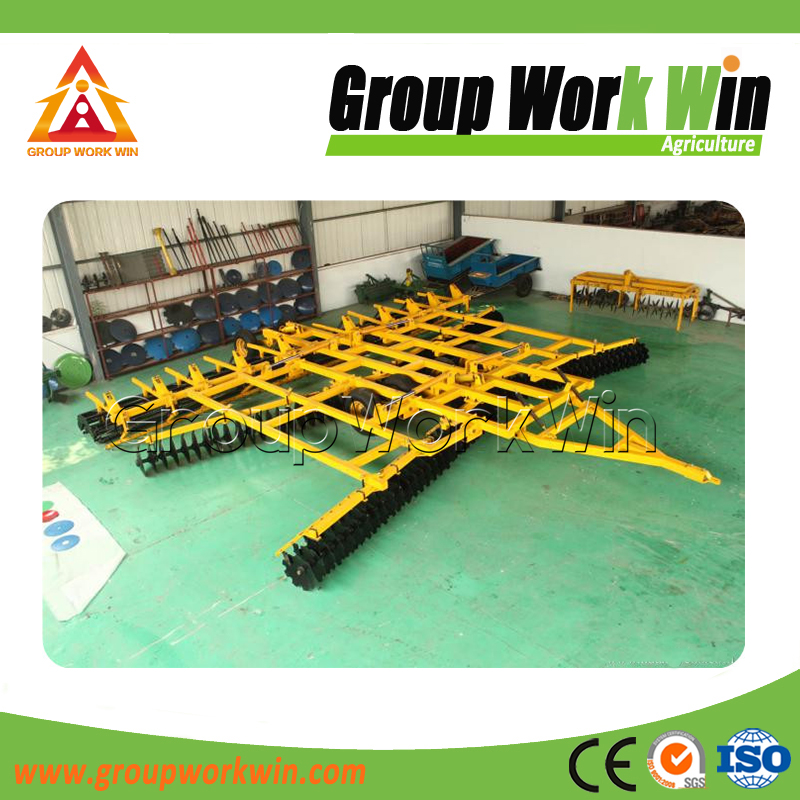

Joint soil preparation machine is a kind of multi-functional soil preparation machine, by middle frame, drawing frame, beam, gearbox, transmission case, deep loosening shovel assembly parts and rotary tillage and stubble parts, transmission case set at the side of the frame, a transmission box set up seven mutually meshing gears, middle beam parallel set between the rotary shaft and stubble, beam has deep loosening shovel assembly, rotary shaft of the gearbox output shaft directly driven by;The output shaft on the side of the gearbox is connected with the input shaft of the transmission box through a universal coupling, and the stubble killing shaft is driven by the output shaft of the transmission box. A forced leveling device is arranged at the rack between the rake disc group and the compactor.Principle: a flat soil shovel is installed under one end of the rack equipped with a suspension frame, and at the rear end of the rack, a broken soil roller frame with a broken soil roller is connected by adjusting screws, and a spring-tooth rake with spring-tooth teeth is hung between the flat soil shovel and the broken soil roller.During the operation, the flat soil is scraped and scraped, the elastic tooth harrow is used to loosen the soil, and the crushing roller is used to crush the soil and suppress the topsoil.Do not turn over the soil layer in the operation, is the finishing machine.



Model	1LZ-3.6	1LZ-4.2	1LZ-5.1	1LZ-6.0	1LZZ-7.0	1LZZ-9.0
Overall Dimension (mm)	6600*3660*1050	6600*4300*1050	6600*5600*1050	6800*6700*1050	7000*7320*1100	9000*9120*1100
Working Width (mm)	3600	4200	5100	6000	7000	9000
Working Depth (mm)	80-150
Qty. of Disc (per)	42	52	62	72	84	108
Size of Disc	460*3 (also can choose 460*4 or 510*4)
Transport Clearance (mm)	≧280
Weight (kg)	2000	2620	3320	3800	4150	6800
Productivity (ha/h)	2.2	2.5	3.2	3.8	4.5	5.0
Matched Power (hp)	70-120	80-130	100-150	120-180	150-200	200-260



Main Feature:

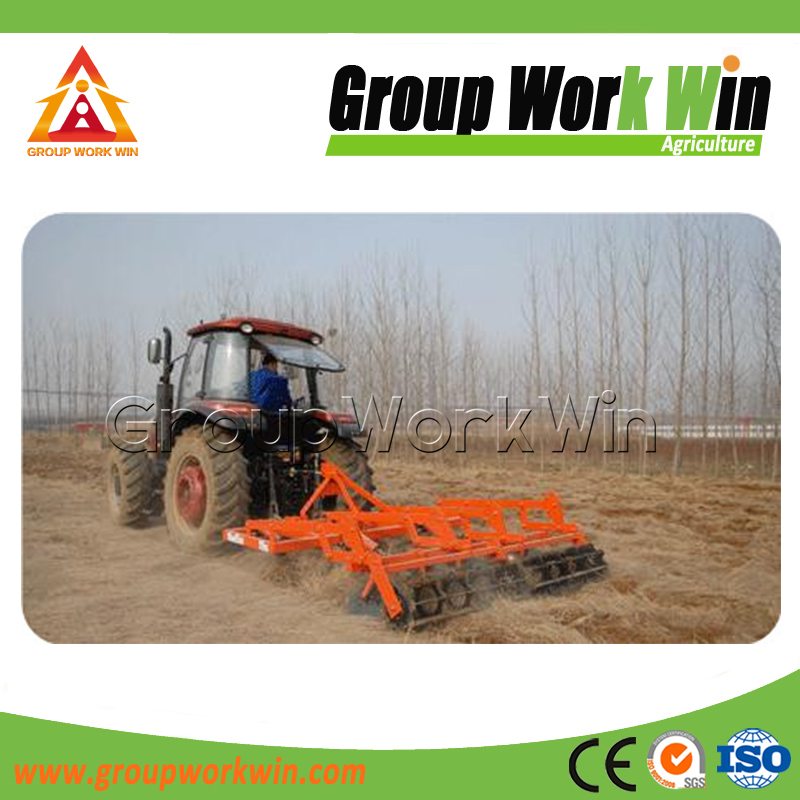

   The 1LZ series combine land preparation machine can complete the pulverizing, soil transporting, soil mixing, leveling before sowing, repression and it also can be directly prepared flat seeder. After stubble ploughing, the organic soil quality contents rise.
