Product Details

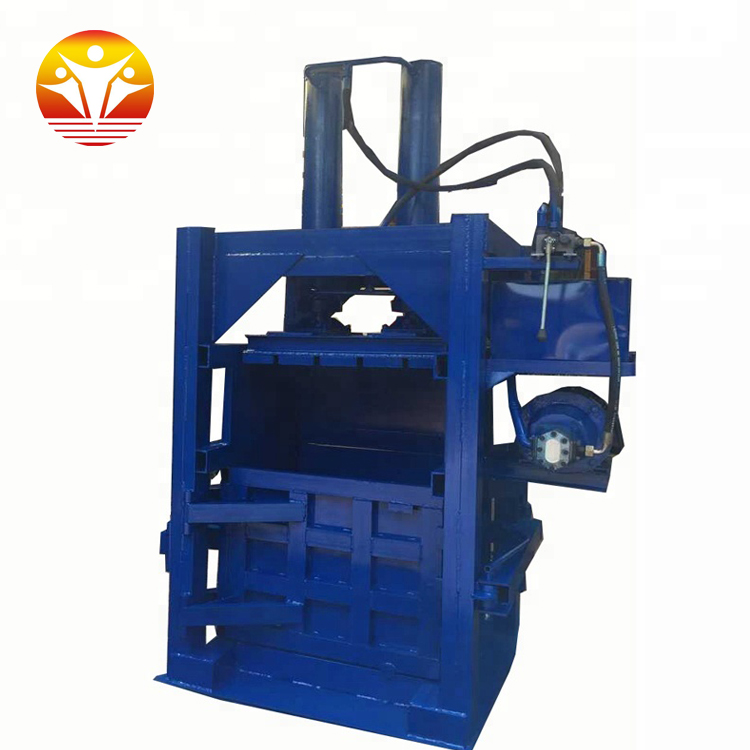

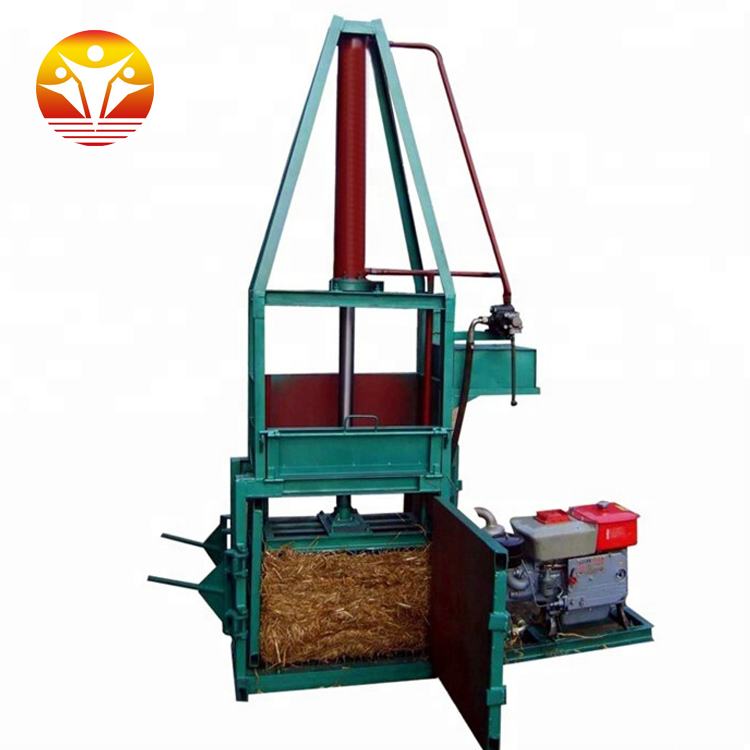

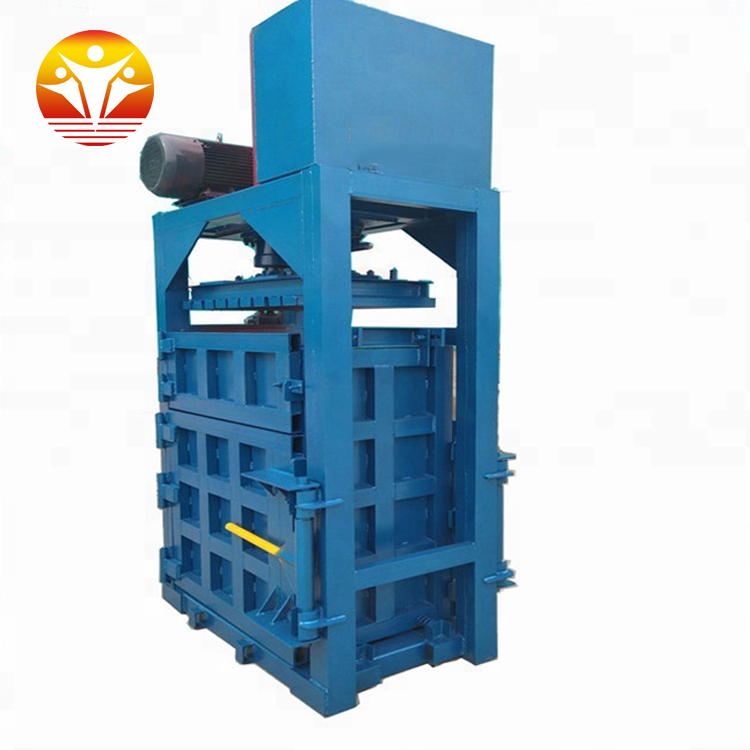

automatic agriculture waste straw hay baling machine



It's widely applied for compressing various waste materials: old clothes, textile, straw, waste plastic, waste newpaper, used card board, waste paper plate, waste carton box, cotton, wool, yarn, woven bags, wool hemp, plastic bag, etc. Hydraulic lifting chamber door improves the work efficiency, conveniently for packaging and the tight crossed tying.



Model	Force (T)	Bale size (mm)	Bale weight (kg)	Efficiency (bale/h)	Power (KW)	M.weight (kg)	Size (mm)
M10-6040	10	600*400	30-50	4-6	2.2	1000	900*650*2100
M20-8060	20	800*600	80-100	4-6	4	1100	1000*750*2750
M30-8060	30	800*600	100-130	4-6	5.5	1300	1000*750*2750
M30-11070	30	1100*700	130-150	4-6	5.5	1700	1350*850*3200
M40-11070	40	1100*700	180-200	4-6	7.5	1800	1350*850*3200
M40-12080	40	1200*780	200-240	4-6	7.5	2050	1600*1050*3300
M50-12080	50	1200*800	320-350	4-6	7.5 or 11	2600	1600*1050*3300
M60-12080	60	1200*800	380-420	4-6 r	11 or 15	2900	1600*1050*3300
M80-12080	80	1200*800	450-480	4-6	15	3300	1600*1050*3300
M100-12080	100	1200*800	500-550	4-6	15	3700	1600*1050*3300
M120-150100	120	1500*1000	650-700	4-6	15 or 18.5	4300	2100*1550*3300
M150-150100	150	1500*1000	850-900	4-6	18.5	5100	2100*1550*3300

Remark: Machine will be designed according to custome's detail requirement,pls.contact with us for choose.



	Machine Parts Name: PLC control system  It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
	Main Features Name: Hydraulic Pump The hydraulic pump is characterized by small size, high efficiency, long life, advanced design, compact structure and easy maintenance.
	Machine Parts Name: Hydraulic Cylinder Hydraulic cylinder is clevis mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance.



Pre-sales service:

1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
