Product Details

agricultural round hay bale press baler machine

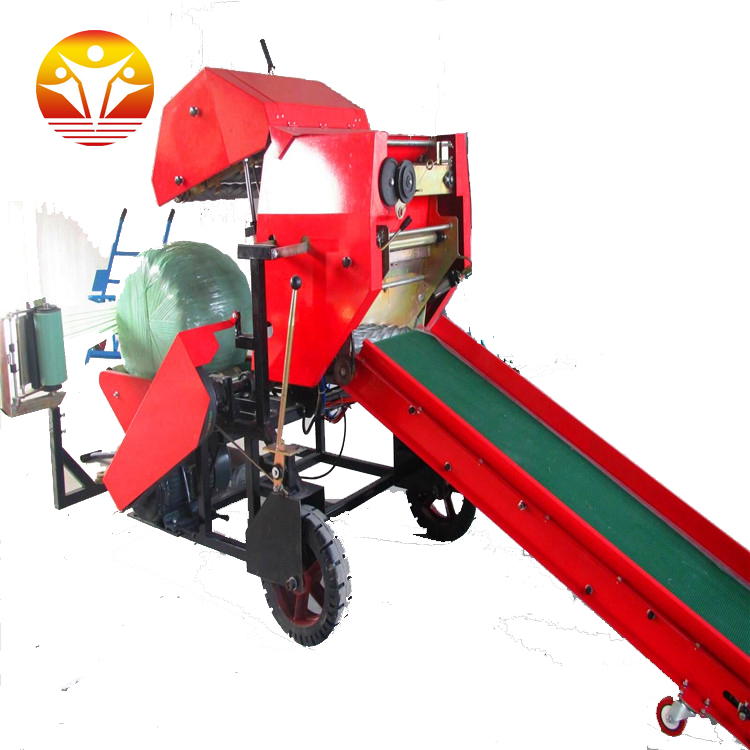

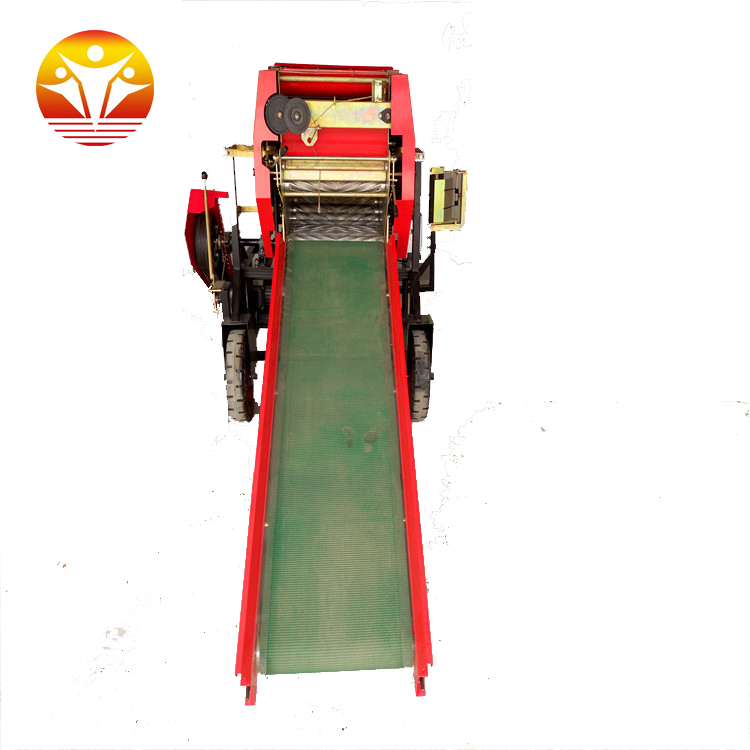

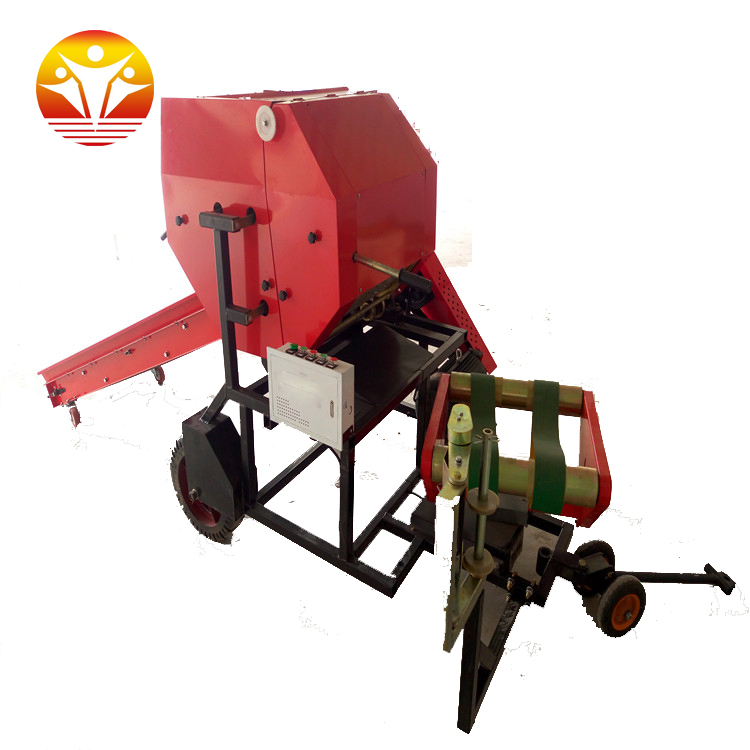

Ten combined baler wrapper designed by our company is professional equipment for silage making.This machine has the function of semi-automatic feeding,automatic baling and wrapping etc. And users can adjust the wrapping layers according to storage life,to control the costs more reasonably.The main advantages of this machine:combination of baler and wrapper,and equipped with conveyor system,Wrapping Wrapping machine's rotation rack stops at the same position after each wrapping,so the compressed bale get out of the baler's cabin can drop to the rotation rack automatically and accurately.Just need to press the start button,the wrapper will start to wrap.Save manpower,low labor intensity,high efficiency,2 persons can handle this machine easily.



Model	M-55-52
Power	5.5+1.1kw    3 phase 6 grade
Packing size	Φ550*520mm
Diesel engine	≥12-20 motor
Product speed	60-65 piece/h, 5-6t/h
Machine size	2135*1350*1300mm
Machine weight	510kg
Straw weight	65-100kg/bundle
Straw density	450-500kg/m³
Strap belt consumption	2.5kg/t
Packing film power	1.1-3kw   3 phase 6 grade
Production efficiency	13/19 second 2 layer film /3 layer film



1) The machine is siding with thick, bold roll of aluminum and the shaft, bearing external fixation, screw-type back and forth around the rope system, new pickup feeder institutions, aluminum chassis and roll under the large space. With a rigid machine, the main pieces of long life, convenient maintenance machine, pulling a small rope, tied around the rope and high efficiency; the bottom of the silt clean-up material fast and convenient, without stopping the operation, the machine can be timely protected.

2) Then it will pack a plastic strip to the round bales automatically, to make the bales easy to stock and keep the nutrition not lost.



1. What about your the machine quality?
Our factory has 16 years experience in mechanical processing; all our machines already get ISO9001, SGS
certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your the machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3.Can you send me the video to show how the machine work?
Certainly, we have made video of every machine and uploaded them by our chain address.Pls. contact with us, we will send you machine video.
4.What about your installation service and sales service for the machine?
1>Guarantee is two year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3>It is free to train your worker in our factory or in your side or by video.
