Product Details

Farm Three Point Hitch ATV Broadcast Levee Spot Sprayer for Agriculture

3WPZ-1200G series of sprayer is suitable for spraying the medicament for the planter of bean, corn, cotton, grain.
Also for lawn,fruiter,vegetable, road side tree. The capacity could be 1200L, the spraying width could be 16m with 53hp.

Product Description

Model	3WPZ-1200G self-propelled boom sprayer	Pump type	Plunger pump
Engine model	4L68 (Changchai) turbocharged diesel engine	Pump model	OS-5200
Power / speed	53hp      2400r/min	Pump pressure	0-45kgf/cm²
Displacement level	China III	Pump flow	200-240L/min
Gear	Forward gear 4,reverse gear 1	Pump speed	600-800r/min
Drive mode	Four-wheel drive	Tank capacity	1500L
Steering mode	Hydraulic steering	Spray height	0.5-3.0m
Mixing way	Circulating water mixing	Nozzle model	No.3
Folding way	Hydraulic folding	Spray angle	110 °
Boom	16m(customizable)	Nozzle flow	1.2L/min
Ground clearance	1.8m(customizable)	System work pressure	0.3-0.5Mpa
Wheel track	1.95-2.6m(adjustable)	3 filtration system	Tank inlet, pump inlet, nozzle
Operating efficiency	21-30acres / hour	Battery	12V/120AH
Walking speed	≤25km/h	Front tire model	Tractor tires 9.5-24
Overall dimension	5800mm x 2900mm x 3700mm	Rear tire model	Tractor tires 9.5-24
Weight	3811kg	Water tank	15L

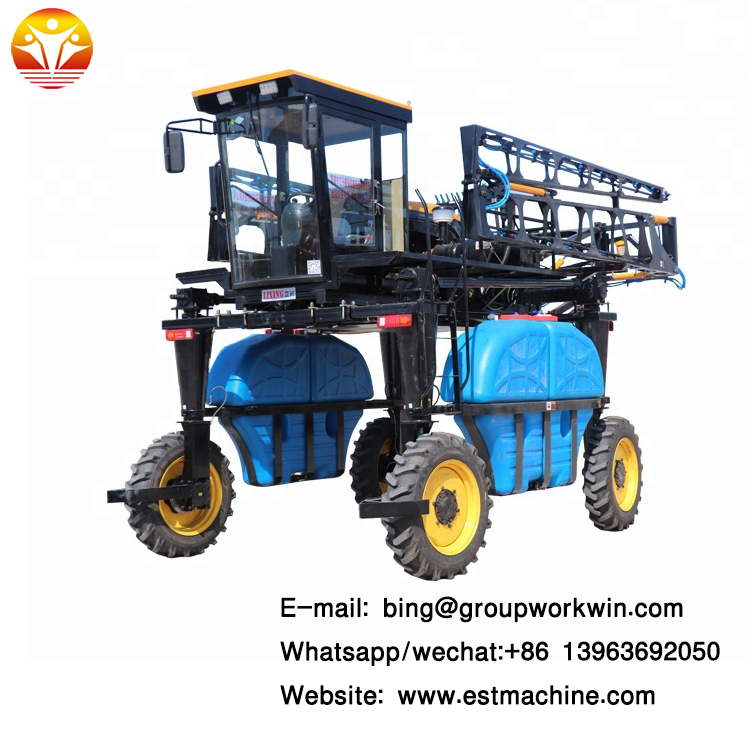

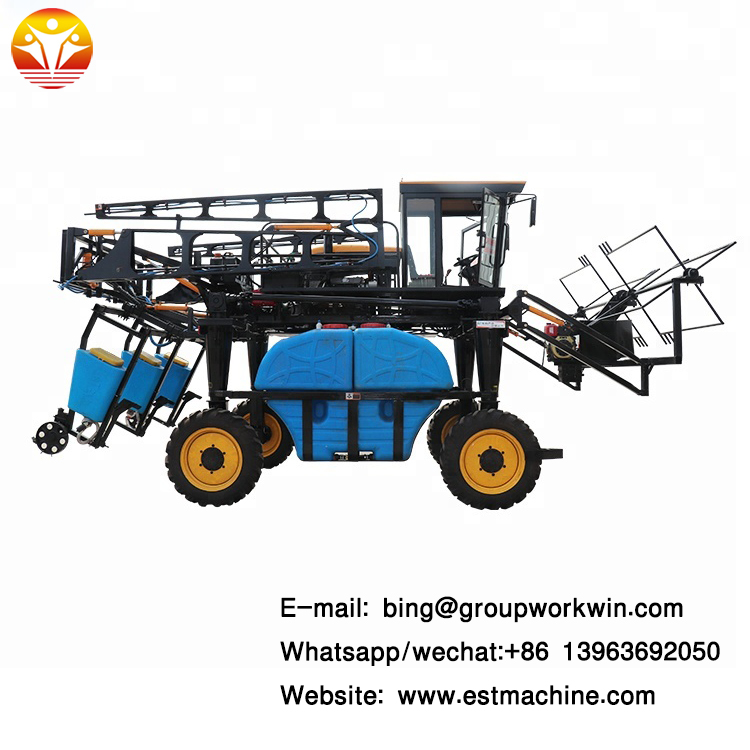

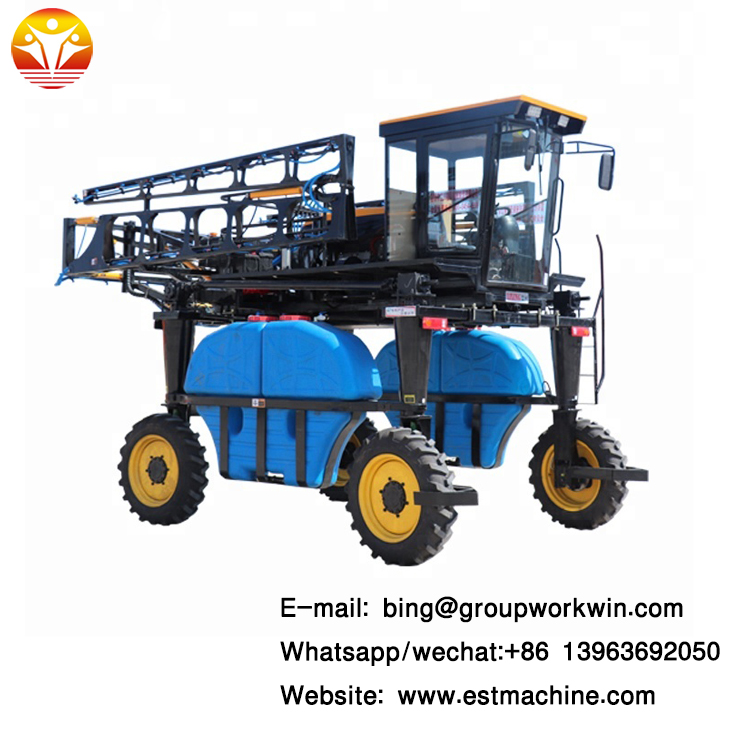

Detail display



Working picture



Advantages:
•This kind of boom sprayer is a tractor mounted sprayer.
•Wide working scope,spraying for bean,cotton,corn etc.
•Wide spraying with to be 16m max.and the working angle of this tractor sprayer could be adjusted.
•The capacity of mounted boom sprayer could be adjusted to meet different need from the user.

Certifications



My company



Group Work Win is a leading manufacturer and provider of total integrated supply chain solutions.We offer the best agricultural equipments,garden equipments and accessories.Our main product lines:tractor series,agricultural cultivating machinery series,spring series,harvesting machinery series,post-processing machinery series, casting and forgings series.Our farm implements could match with domestic tractor(FOTON,YTO),and foreign famous brand tractor(JOHN DEERE,NEW HOLLAND,KUBOT etc.).

FAQ

Q: What’s your MOQ?

A: Normally our MOQ is 500 units per model, but we can also accept 100-300pcs, it depends on the model.

Q: What’s your payment terms?

A: We could accept L/C sight, T/T ,Paypal etc.

Q: What’s the delivery time?

A: Normally our lead time is 45days, but if the quantity is large, or it’s related to some special components, the lead time would be longer.

Q: Can I get samples?

A: Yes. You pay the sample cost and shipping cost first. We will return you the money back when place official orders.
