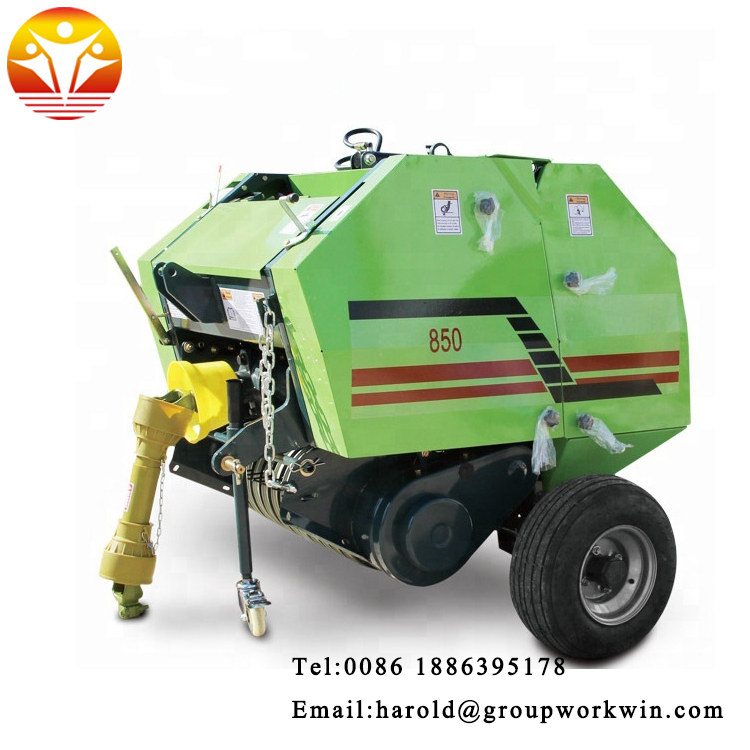

China round bundling machine for straw stalk pick-up baler

   The straw bundling rope coiling machine/straw bundling machine is widely used in agriculture and animal husbandry. It can collect and bundle dry and green grass, straw, wheat stalk, corn stalk, wheat/ rice straw, grass, corn straw, pasture straw bale, etc. After baled by the machine, the bundle is very convenient for transportation, reserve and deep processing, and it matches with envelop machine to achieve the enveloping of ensile. So, the hay straw baler machine is very welcomed by domestic and overseas farmers.






 1.When the machine is going along with the tractor, the hay is picked into rotary platening chamber and rotating bigger and bigger, then get into very tight round bale.When the density of the bale is Ok , the alarming system will start to sound, driver should stop forwarding, push the threading clutch.


2. When find the speed of threading is faster, loose clutch, keep the Power conveyor driven shaft working to start thread. Driver should pull the hydraulic controlling stick to change the direction of the hydraulic valve, then the cylinder will work and throw the bale out.

3. After throwing the bale out,correct the hydraulic valve, open rear rack to forwarding again for the second cycle.



1. This straw bundling rope coiling machine with advanced design and structure, processing high quality round bales.

2. It is consist of main machine, pickup part, compress rolls, automatic binding hay bales, hydraulic pressure ejection system, three point linkage etc. It can move and work with a 15-90 HP tractor by PTO shaft.

3. The whole working program is successive, accurate and reliable, the bundled round grass bales compact outside and loose inside and has good air permeability.-

4. The machine is suitable for baling of hay, grass, wheat, silage, alfalfa and other materials such as straw etc.





Specifications
Model	RXYK-0850	RXYK-0870
Bale size: dia.*width	φ50×70cm	φ61×70cm
Dimension (L*W*H)	115*130*120cm	130*130*135cm
Weight	425kg	465kg
Pickup width	800mm	800mm
Efficiency	3-6km/hour	3-6km/hour
Capacity (bales per hour)	80-120 bales/hour	80-100 bales/hour
Tire	4.0-8.0 or 16x6.5-8-4PR	4.0-8.0 or 16x6.5-8-4PR
Match power	15-90hp tractor	15-90hp tractor
PTO speed	540 rpm	540 rpm
Safety alarm signal	have
Light signal	have
Auto twine binding system	have
Hydraulic ejection system	have
Certificate	CE EPA ISO



Packaging Details：ron crate with film covering. 850: 20PCS/20FT, 40PCS/40FT. 870: 16PCS/20FT, 36PCS/40FT.

Port：Qingdao

Lead Time :

Quantity(Sets)	1 - 10	>10
Est. Time(day)	5	To be negotiated



Heze Garden Group Work Win Supply Chain Co., Ltd. is a leading manufacturer and provider of total integrated supply chain solutions. We offer the best chemical products for the orders. We have a multilingual team, and many big branch factories. A regional market presence including southeast Asia, Indonesia, Russia, Spain, Chile, Brasil, Australia etc. Group Work Win strives to build a long term relationships by providing our customers with continuous and reactive support. We aim to supply better quality products and after-sales service.



A:what's the MOQ of hay baler?

Q:one set is possible.

A:what's the warranty?

Q:the warranty is one year.technical support is whole life.

A:what's the wearing parts?

Q:there are some tines and other small parts with balers together free.

other parts are not easy to be damaged.

usually no need to buy wearing parts.

A:how to ship?

Q:usually we will arrange shipping for you and send balers to your port.when balers arrive,shipping company will call you.then clear customs and pick up balers

A:Is CO,FORM A,FORM E certification possible?

Q:yes,all these certification are possible.
