Product Details

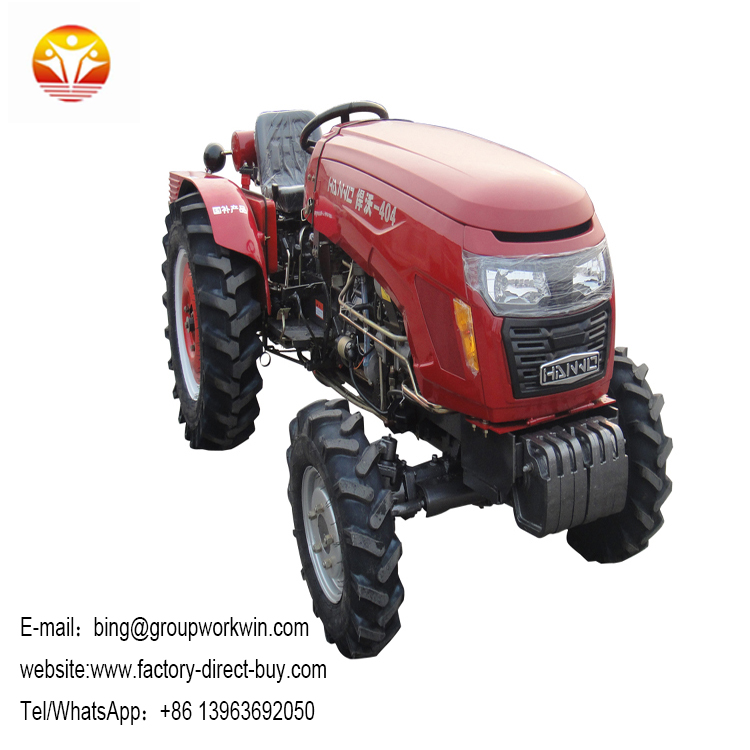

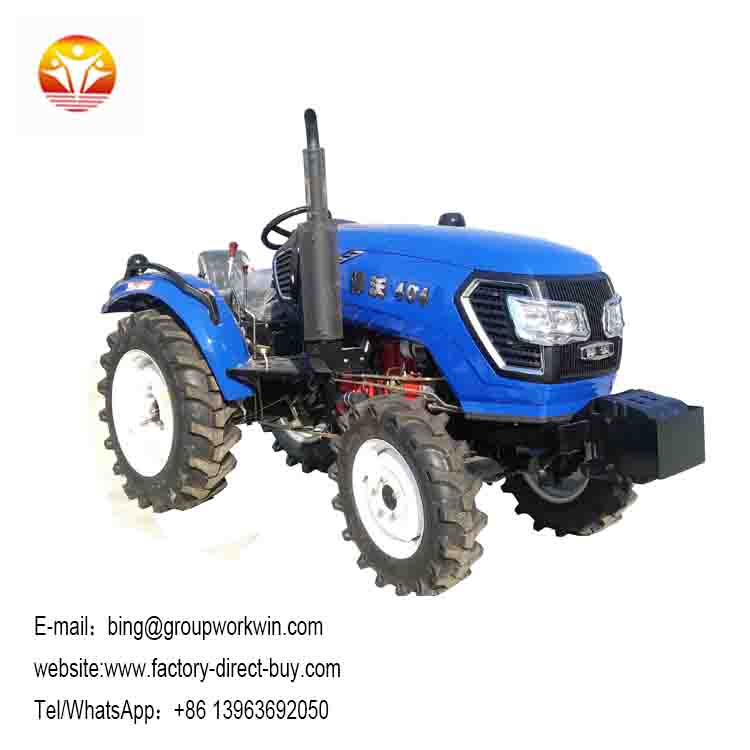

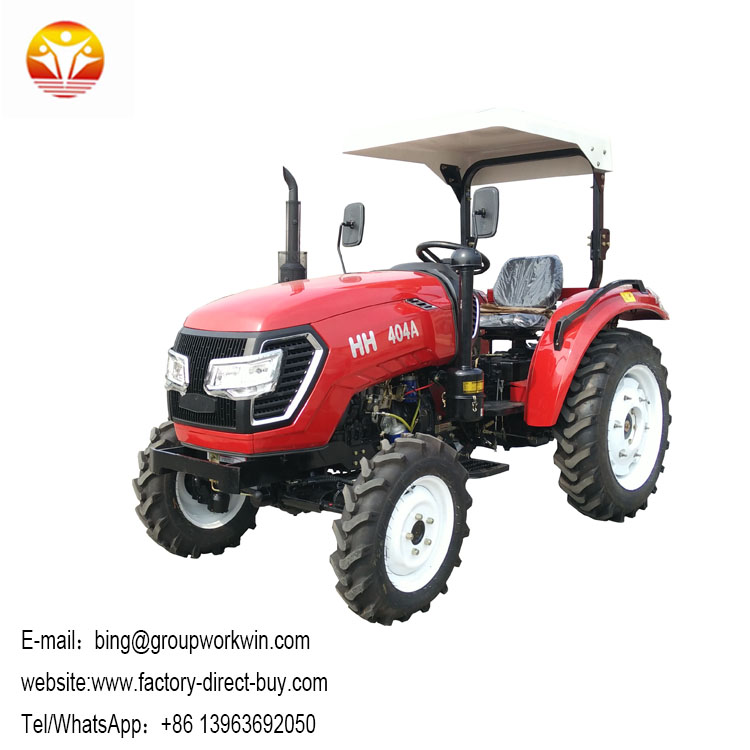

  2018 Hot-selling multi-purpose hanwo farm tractor







.


 Product description




- Imported EPA Tier 4 Final engine/Euro STAGE III B

 - Suit for America, Canada, Europe market.

 - Engine power: 55-80HP

 - Built to last with heavy-duty construction for demanding applications











Main Performance Parameters




Model	RBT-009
Engine power	90hp
Gear box	Engagement sets, 9 forward gears, 3 backwards block, optional synchronizer shift
Max.lift capacity	21KN
Model of the engine	4RMIZT2
Rated speed (r/min)	2200
Volume (L)	4.3
Fuel consumption	246G / kW • h
Rated speed	720r/min
Wheelbase (mm)	2300









Factory pictures








Advantage

Features of 2018 Hot-selling multi-purpose hanwo farm tractor

RBT-002 tractor with a compact,   good starting performance,   flexible and easy to operate.   Engine torque rise,   low noise,   emissions to the country 2 emission requirements,   in line with national environmental emissions requirements.   Standard 9 forward gears and three backward gear,   optional synchronizer shift,   do not stop can smoothly shift,   more portable and efficient operation,   can meet a variety of complex agronomic requirements.   Front axle symmetrically designed,   52-degree steering angle,   steering flexible,   the minimum turning radius ≤4.3 m.

Gear arrangement is reasonable to meet the needs of complex agronomic

Standard 9 forward gears and three backward gear, optional synchronizer shift, do not stop can smoothly shift, more portable and efficient operation, can meet a variety of complex agronomic requirements. Optional tools available for more, with better performance and higher economic efficiency farming.

Safety start switch devices




Only the main lever in neutral position, in order to start the engine, does not completely eliminate the block started picking insecurity caused by the tractor.

Forced pressure lubrication system

Lubrication System Transmission using forced pressure lubrication. In larger load, high relative velocity of the friction surface, forming a uniform surface protective layer of oil, making high-speed operation of gears, bearings are better protected, more reliable, better lubricating properties, heat faster.

Differential lock device

When the differential coupling sleeve separation velocity rounds a difference, so turn the tractor to achieve freedom. When one side of the wheel slip, differential lock can be connected to the tractor around axle, rear drive wheels greater traction on slippery ground, and thus out of the woods.





Rear axle suspension



Three-point suspension, Ⅱ type connecting rods, tillage depth adjustment method for force adjustment, position adjustment, power-bit integrated regulation, adopted after a fixed and stable chain means lower rod suspension systems, suspension rods with a height adjustment function, after suspension upgrade ability.
