Product Details

Specifications

Features :

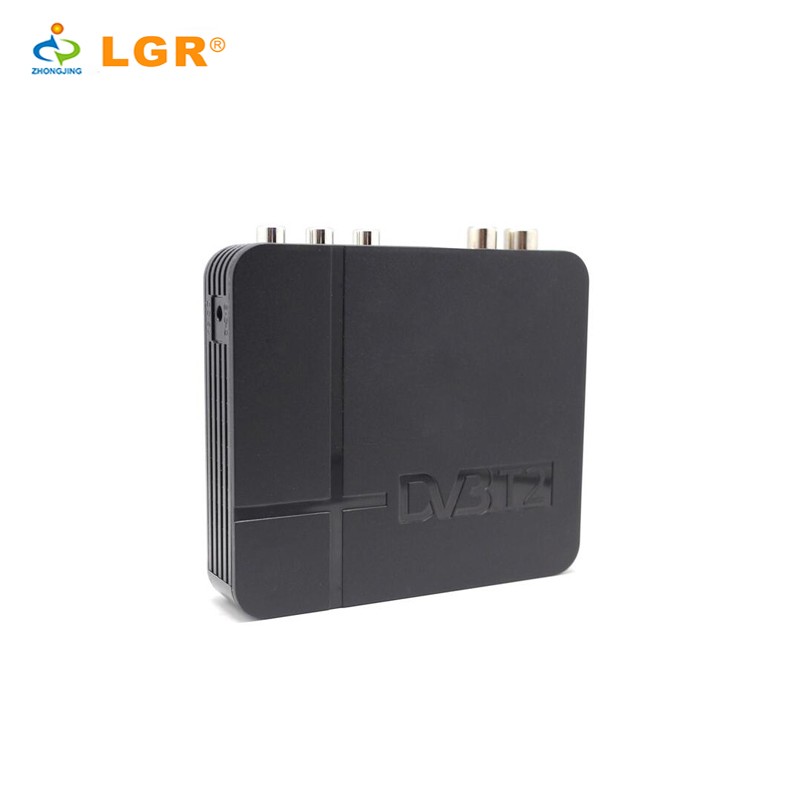

1. MPEG-4 DVB-T2 set top box.
2. Compatible with 576i/576p/720p/1,080i/1080P video formats
3. Mstar7t01 chipset
4. Fully compliant with DVB-T2 standard
5. Supports HD 1.4
6. Auto and manually scan all available TV and radio channels,Parental guidance locking
7. Auto/manual program search, multi-language supported
8. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels)
10. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD
11. Supports scart output, coaxial, RF in and output
12.Powerful and highly effective 7days EPG function

Tuner :
*Input Frequency: VHF 174~230 MHZ, UFH 470~ 862 MHZ
*RF input level: -78~20 dBm
*RF Bandwidth: 7MHZ and 8MHZ
*Signal input: IEC-type female
*QPSK, 16QAM,64QAM, 256QAM
*FEC: 1/2, 2/3, 3/4, 4/5, 5/6

Multimedia format :
*Decoder format: MPEG 4 AVC/H.264 HP&L4MPEG2 MP&MP.HL
*Output format:480i/480p/567i/567p/720i/720p/1080p/1080i
*Output port: AV/Scart(optional)
*Decoder fomat: MPEG-1(layer 1&2&3),WMA.
*Audio output: Coaxial, L/R(AV or Scart)

Power :
*Maximum power consumption:< 10w *Standby power: <1w

Hardware Interface :
*Indicators: Power, signal lock
*IR Receiver: 38KHZ
*LED Display
*Loop through output: IEC- type, connector,single tuner
*Coaxial output*USB2.0
*RCA Output(optional)
*Scart Output

Packing :
packing: 1 Color Box
Color box : 250*60*255mm
Qty per export carton: 20pcs pieces
Meas. per export carton : 375*260*235mm
One Color box include:
1* DVB-T2 HD Receiver
1* Remote Controler
1* AV Cable
1* User Manual
