Product Details

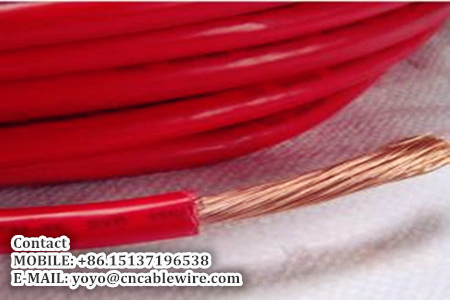

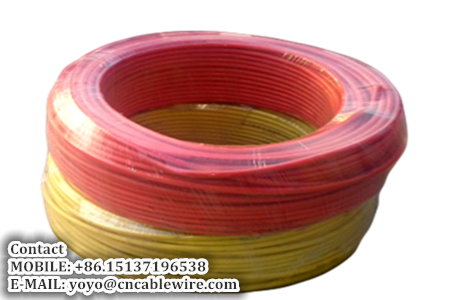

BVR Copper Wire


Introduction of BVR Copper Wire

Product: BVR Copper Wire

Academic name: Copper Core PVC Soft Wire

Model: BVR

Standard: JB8734-2012

Conductor material: Non-oxidized copper core (copper content: 99.99%)

Number of cores: single core

Insulation materials: PVC

Specifications: 0.75~185mm²

Rated voltage: 450/750V

Colour: red, yellow, blue, green, black Yellow-green color etc

Application of BVR Copper Wire

This product is suitable for AC rated voltage 450 / 750V and below, requiring the use of fire-retardant occasions of electrical, instrumentation, telecommunications equipment, power equipment and lighting lines fixed laying.

Features of BVR Copper Wire

The long-term permissible operating temperature of all types of cables shall not exceed 70 ℃. The laying temperature of the cable shall not be less than 0 ℃. The outer diameter (D) is less than 25 mm cable allowed bending radius should not less than 4D. The outer diameter (D) of 25mm and above the allowable bending radius of cable should not be less than 6D.




Model of BVR Copper Wire

The insulation materials and sheath materials of BVR copper wire is PVC. BVR copper wire according to the different properties, the product can be divided into insulation, flame retardant, fire-resistant three categories, different uses of different categories:

Model	Designation	Use occasion
BVR	Copper Core PVC Soft Wire	Power, electrical instruments and automation devices
ZR-BVR	Copper Core PVC Flame-retardant Soft Wire	With a fire-retardant requirements of electrical, instrumentation, telecommunications equipment, power equipment and lighting lines fixed laying.
NH-BVR	Copper Core PVC Fire-resistant Soft Wire	Control, monitoring circuits, power, line protection and other occasions, as well as large-scale construction, petroleum, metallurgy, chemical industry, cable, ship, personnel-intensive industries have higher flame retardant and fire resistance requirements


Technical parameters



Nominal  cross section (mm²)	Nominal insulation thickness(mm)	Upper limit of average outer diameter(mm)	20℃ Maximum conductor resistance MΩ.km		70℃ Minimum insulation resistance MΩ.km
			Copper core	Tinned copper core
0.75	7	2.9	24.5	24.8	0.013
1	7	3.1	18.1	18.2	0.012
1.5	7	3.4	12.1	12.2	0.011
2.5	19	4.1	7.41	7.56	0.011
4	19	4.8	4.61	4.7	0.009
6	19	5.3	3.08	3.11	0.0084
10	49	7.3	1.83	1.84	0.0072
16	49	8.6	1.15	1.16	0.0062
25	98	10.2	0.727	0.734	0.0058
35	133	11.7	0.524	0.529	0.0052
50	133	13.9	0.387	0.391	0.0051
70	189	16	0.268	0.27	0.0045
95	259	18.2	0.193	0.195	0.0044
120	259	19.8	0.153	0.154	0.004
150	336	22.2	0.124	0.126	0.004
185	427	24.6	0.0991	0.1	0.004


Note: NH-BVV, ZR-BVV and BVV for the same series, so the structural parameters are the same
