Product Details

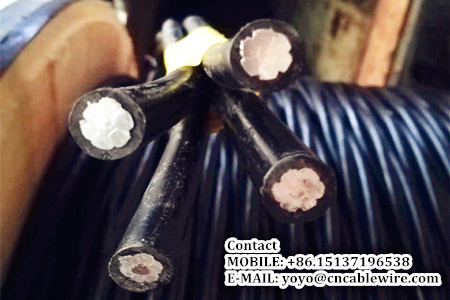

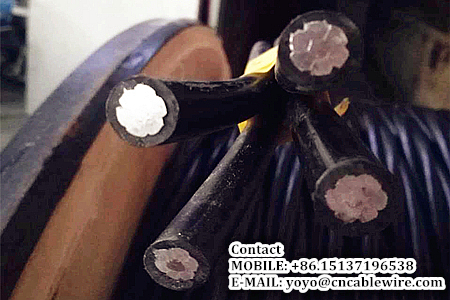

10kV ABC Cable


10kV ABC Cable Introduction


1.Model: ABC Cable;
2.Voltage class: 10kv;
Instantaneous voltage: 8.7-15kv.
3.Conductor: aluminum;
4.Insulation: XLPE;
5.XLPE insulated conductor temperature should not exceed 90 ℃.
Short circuit (maximum duration not exceeding 5s) Maximum cable temperature:
XLPE insulated conductor temperature should not exceed 250 ℃.
6.Cable allowable bending radius:
Cable diameter (D) <25mm, should not be less than 4D.
Cable diameter (D) ≧ 25mm, should not be less than 6D.


ABC Cable Applications


Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost.




10kV ABC Cable Technical Specifications





Technical Specifications
Type		ABC Cable, Single Core, Aluminium Conductor, XLPE Insulation (AL/XLPE)
Specification		3x50mm2+25mm2
Cable Size (mm)	NO	7
	Cable Diameter (mm)	3.05
Insulation Thickness (mm)		2.5
Conductor Size (mm)	Aluminum	6/2.3
	Steel	1/2.3
Insulation Thickness (mm)		2.5
Cable diameter (mm)		22
Rated voltage (kv)		10
Instantaneous voltage (kv)		8.7-15
20 ° С Maximum conductor resistance (Ω/km)		0.641+1.1478


Introduction of our company




Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, Insulated Overhead Cable, Nylon Sheathed Cable, Aluminium Conductor Steel Reinforced, PVC Flat-Twin Cu Cable, YJV Power Cable, BV Electric Wires, H07V-R Cable, Nylon Jacketed Cable, Buried Cable, House Electric Wire etc. series of wire and cable products, sincerely welcome everyone to visit.
