Product Details

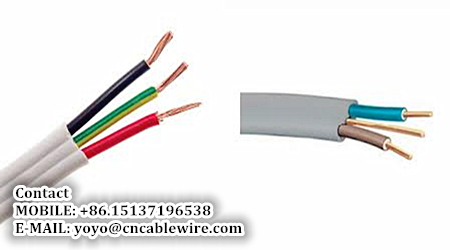

2C +E Installation Cables


Product name: 2C +E Installation Cables

Number of core: two core

Voltage: 300/500 V

Specifications:

1)The grounding wire (insulated): 3x2.5 mm2

2)The grounding wire (bare):
2x2.5+1x1,2x2.5+1x1.5,2x2.5+1x2.5 mm2

Standard: BS6004

2C +E Installation Cables Product Parameters

1)The grounding wire (insulated)



Code name		Installation cables		Reference picture
Nominal cross-sectional area		mm2	2.5
No. of cores			3
conductor	No. of strands		49
	Dia. of strands	mm	0.25
	Dia. of conductor	mm	2.20
Insulation	Dia. of cores	mm	3.8
	Thickness	mm	0.8
Sheath	Thickness	mm	1.0



2)The grounding wire (bare)




Code name		Installation cables
Reference picture
Nominal cross-sectional area		No.x mm2	2x2.5+1x1	2x2.5+1x1.5	2x2.5+1x2.5
Insulated cores	No. of cores		2	2	2
	No. of wires		1	1	1
	Wires Dia.	mm	1.76	1.76	1.76
	Dia. of conductor	mm	1.76	1.76	1.76
	Thickness of insulation	mm	0.7	0.7	0.7
	Dia. of cores	mm	3.16	3.16	3.16
Grounding core	No. of cores		1	1	1
	No. of wires		1	1	1
	Wires Dia.	mm	1.13	1.38	1.76
	Dia. of conductor	mm	1.13	1.38	1.76
	Thickness of insulation	mm	0	0	0
	Dia. of cores	mm	1.13	1.38	1.76
Sheath	Thickness	mm	1.0	1.0	1.0
