Product Details

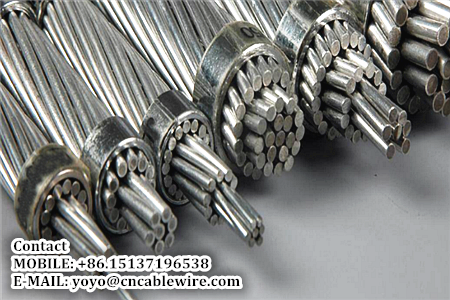

4/0 Penguin ACSR


Steel core aluminum strand (ACSR)is a kind of reinforced wire with single layer or multi-layer aluminum wire twisted outside galvanized steel core wire. Mainly used in power and transmission line industry.

Detailed product information:Penguin aluminum cable (NOT insulated) (ACSR) 4/0, 360 amp, 6 threads, Nominal diameter 14,31 mm.

4/0 Penguin ACSR Advantages

1. Excellent electric and mechanical characteristics.

2. Good conductivity, Resistance chemical corrosion and heat-ageing,environment stress.

3. Unit volume light, Simple in structure.

4. Convenient to use,especially for laying across rivers and valleys where special geographical terrain exist.

4/0 Penguin ACSR Technical Parameters



Code name			PENGUIN
Area	Aluminum	AWG or MCM	4/0
		mm2	107.23
	Steel	mm2	17.87
	Total	mm2	125.10
Stranding and diameter	Aluminum	mm	6/4.77
	Steel	mm	1/4.77
Approximate overall diameter		mm	14.31
Linear mass	Aluminum	Kg/km	294.0
	Steel	Kg/km	139.0
	Total	Kg/km	433.0
Rated tensile strength		daN	3706
Maximum D.C. Resistance at 20℃		Ω/km	0.26750
Maximum D.C. Resistance at 75℃		Ω/km	0.32679
Capacity		A	357
