H07V-R 10mm2 Cable

Introduction of H07V-R cable

H07V-R cable is a copper conductor wire. The corresponding national standard model is BV,used for soft connections in electrical appliances, instruments, and electrical devices. Connect the removable assembly line and connect to a device with round-trip bending motion,can be used as communication equipment and electronic transmission equipment, such as electrical control cabinets, distribution boxes, telephone exchanges and other occasions.

Product Features of H07V-R cable

Insulation mechanical properties, excellent performance, bright colors, use more secure.

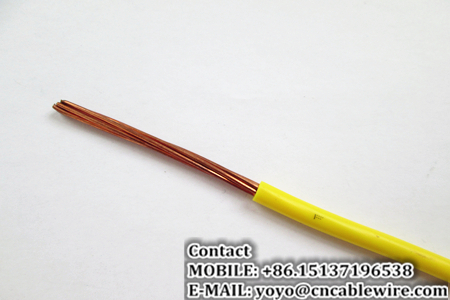

Cable Structure of H07V-R cable

Conductor: bare copper conductors

Insulation: PVC insulation

Finished cable:core wire laminated twisted synthetic cable

Technical Parameters of H07V-R cable

Rated voltage: 450V/750V

Minimum bending radius:

Fixed laying: 12.5 x D (outside diameter of cable)

Mobile installation: 12.5 x D (outside diameter of cable)

Operating temperature:

Fixed laying: -30 to +80℃

Mobile installation: -5 to +70℃

Detailed Specifications of H07V-R cable

NominalCross Section Area	Wire Core Number/ Monofilament Diameter	Insulation Nominal Thickness	Cable outer Diameter ≦
mm2	mm	mm	mm
1.5	1/1.38	0.7	3.3
1.5	7/0.52	0.7	3.5
2.5	1/1.78	0.8	3.9
4	1/2.25	0.8	4.4
6	1/2.76	0.8	4.9
10	7/1.35	1.0	7.0
16	7/1.70	1.0	8.0
25	7/2.14	1.2	10.0
