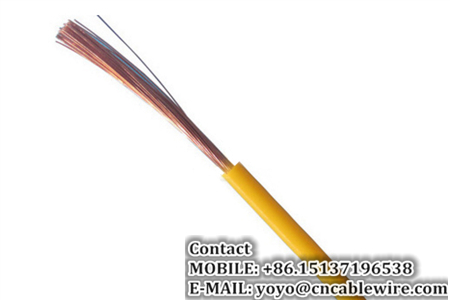

H07V-K 450/750V Cable

Technical Parameters of H07V-K Cable

Rated voltage: <1.5mm2 300/500V; ≥1.5mm2 450/750V;

Conductor: multi-strand copper conductor, complying with GB/T 3956, Category 5 (equivalent to IEC60228.5);

Insulation: PVC mixture;

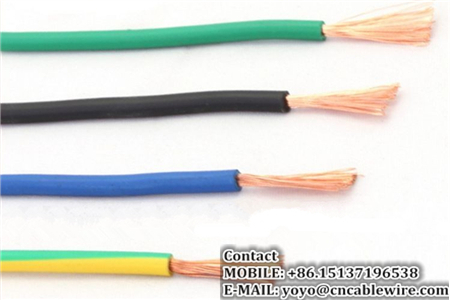

Marking color: red, white, blue, green, black...

Cross-sectional area: 0.5 -70mm2;

Test voltage: 2500V, 5min;

Maximum operating temperature: 70℃;

Minimum operating temperature: -30℃;

Reference standards: GB 5023、IEC60227、HD VDE21.3 S3;

Scope of application of H07V-K Cable

Mainly in the industrial distribution field has a wide range of applications, especially for more demanding flexible installation sites, such as electrical control cabinets, distribution boxes and various low-voltage electrical equipment, can be used for power, electrical control signals and switching signals transmission. H07V-K cable is especially suitable for indoor cabling. It can also be used for lighting, control cabinet, distribution box and equipment wiring. The cable adopts the design of a soft structure, and the conductor has a small bending radius, and is suitable for a humid and oily installation site. At the same time, the product has obtained the CCC and CE mark certification, in line with HD (EU harmonized standard) requirements, not only can be used in the Chinese market, but also applies to the European market.

Introduction of our company

Gongyi Shengzhou Metal Products Trading Co., Ltd. is a professional China Wire and Cable Manufacturers, mainly supply Aerial bundled cable, Insulated Overhead Cable, Nylon Sheathed Cable, Aluminium Conductor Steel Reinforced, PVC Flat-Twin Cu Cable, YJV Power Cable, BV Electric Wires, H07V-R Cable, Nylon Jacketed Cable, Buried Cable, House Electric Wire etc. series of wire and cable products, sincerely welcome everyone to visit.
