Product Details

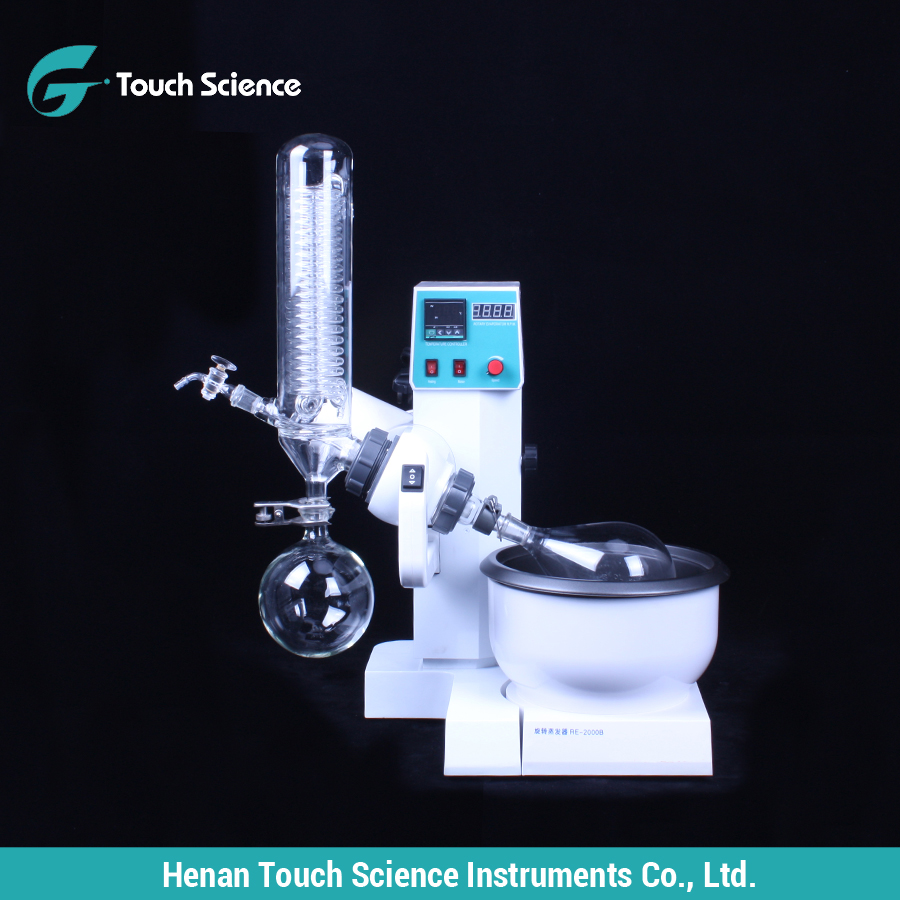

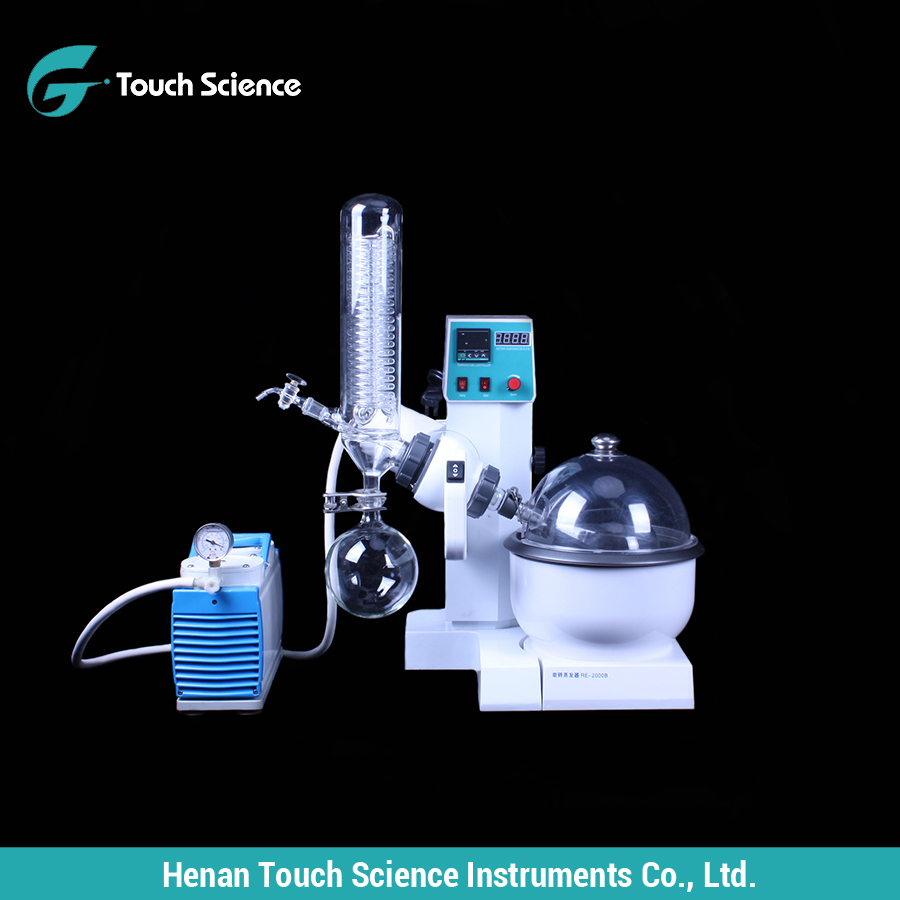

RE-2000B Rotary Evaporator


Introduction:

     RE-2000B rotary evaporator is heated by water bath(oil bath) to form thin film under the negative pressure condition, evaporate, condense and recycle the solvent simultaneously. The apparatus are particularly suitable for the heat-sensitivity material’s condensation, crystallization, separation, recovery and so on. It is an important instrument for scientifical research, pilot and production in biological pharmacy, chemical engineering and food industries etc.




Features of RE-2000B Rotary Evaporator:

1. AC motor, stepless speed regulation, no brushes, no sparks, long life

2. Automatic lifting, easy and quick operation

3. Modular design, easy to connect to other appliance

4. Stepless speed control and digital temperature/speed display

5. Tight sealing, high vacuum degree, high evaporating efficiency&high recovery

6. Teflon heating bath, even temperature, fully enclosed design

Parameters of RE-2000B Rotary Evaporator:

Model	RE-2000A	RE-2000B	RE-2000E
Evaporating Flask(L)	1/24#(0.25~2L)
Receiving Flask(L)	1
Rotating Motor(W)	40
Rotating Speed(R/MIN)	0~180
Speed Display	None	Digital	LCD
Water(Oil) Bath Power(W)	1500
Temp.Control Range(℃)	0~400
Temp. Fluctuation(℃)	±1
Evaporation Rate(H2O)	≥1L/h
Max Vacuum Degree(Mpa)	-0.098
Water Bath Size(mm)	Φ240*140
Condenser(mm)	85*430
Lifting Mode	Electric
Lifing Height(mm)	0~120
Voltage	220V/50Hz or 110V/60Hz

Detailed Images

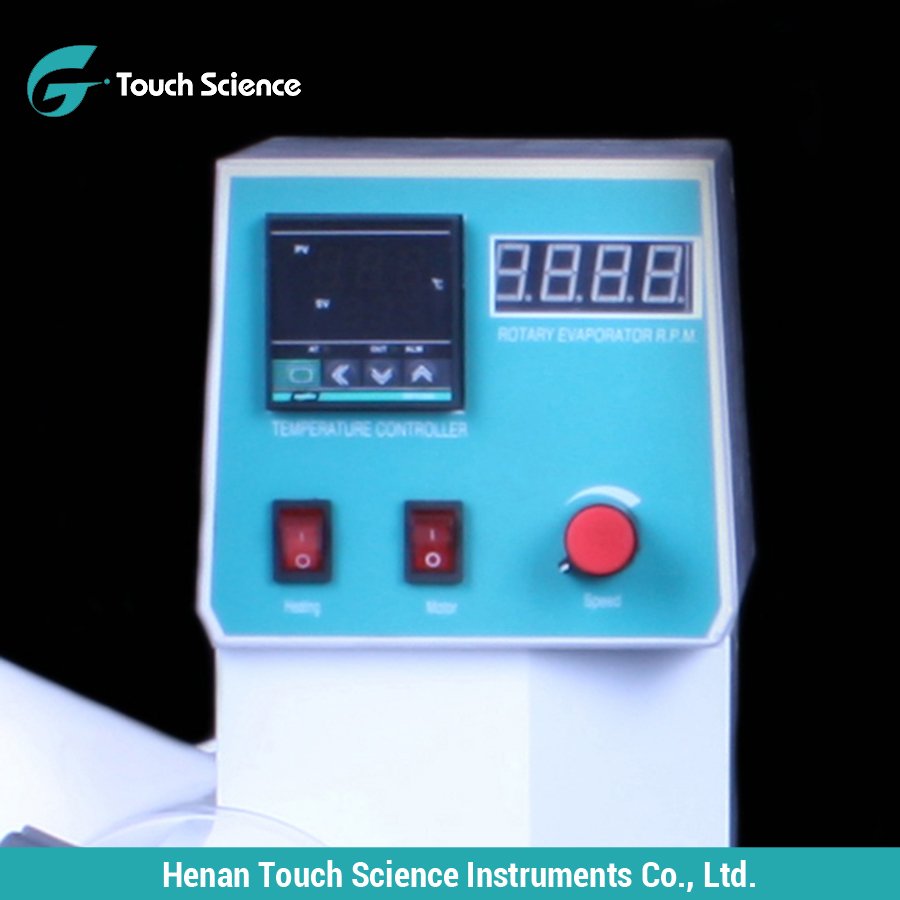

               Control Panel



               Stepless speed control

               Digital display

               Easy operation

               Precise temperature control

                            Glass Parts



                             Material: High borosilicate glass

                            Temp. range: -100℃~400℃




                           --High temperature resistance

                           --Corrosion resistance

                           --High strength and hardnes

                           --Separable  flask





               Heating Bath



               Material: aluminium alloy and teflon
               Size: Φ280*170mm
               Capacity: 10L
               --Fully enclosed heating
              --Constant temperature
              --Efficient and durable


Packing & Delivery



Packing:

-RE-2000B rotary evaporator glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.


Shipping:

Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.


Shipping method	Note
By Express	Door to door, very convenient, don't need to do customs clearance or pick-up
By air to the airport	Airport to airport, you need to do customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you.
By air and dispatch	Airport to door. You need to cooperate with our shipping broker to do customs clearance and don't need to pick pu at the airport.
