Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per
Product Details
- Model NO.: LM2BFY-24
- Application Field: Agriculture
- Planting Machine Type: Seedling Planting Machine
- Power Source: Diesel
- Ditching Mode: Continuous Ditching
- Certification: CE
- Type: Seeder
- Use: Sowing Wheat,Millet,Corn etc.
- Item: 24 Rows Seed Drill Planter with Fertilizer
- Rows Space: 500-700 mm
- Working Efficiency: 2-2.86 Ha/H
- Trademark: Laurel & Honesty
- Specification: CE, ISO, OEM
- HS Code: 843229000
- Application: Wheat, Rice, Corn, Peanut, Tubers, Beans, Trees, Fruit
- Function: Dual Seeding and Fertilization
- Fertilizing Machine Type: Pneumatic Wide Fertilizer
- Mechanization: Semi-Automatic Planting Machine
- Sowing: Broadcast Seeder
- Condition: New
- Item Application: Seeding and Fertilizering
- Dimension(L*W*H): 4380*3680*1650 mm
- Drilling with: 3600 mm
- Driving Force: 50-80 Kw
- Suitable Soil: Ploughed or Tilled
- Transport Package: Carton
- Origin: China
Basic Info
Product Description

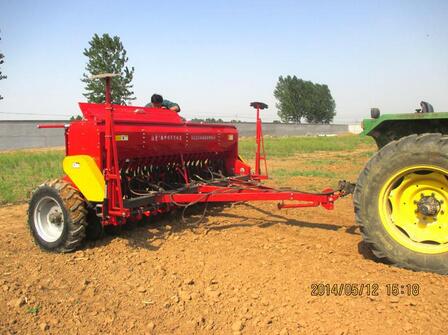

24 Rows Trailing Alfalfa Planter Seeder Drill
This Seed Drill Planter Fertilizer is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, soybean etc. in large and middle sized fields.
2BFY-24 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.
The press device can also be equipped at option for the above machine.
Main Technial Parameters:
Company Information:
Guanzhou Laurel & Honesty Holdings was established in 1981. As manufacturers of machinery for soil cultivation, sowing and crop protection, our currently employs approximately 500 people. Factory size cover an area of 98000 square meters.
It is produces a wide range of straw chopper machine, precision planters, cereal seed drills, cultivator, ploughs, disc plough, chisel plow and corn harvester.
Progress is achieved by continuous R&D carried out by a large team of engineers.
It is passed ISO9001 Certificate in year 1998, we guarantees to its customers products and services compatible with the international quality norms, in every equipment produced by it.
Our Services:
Each unit of machine have 1 year of gurantee time.
OEM Service and buyer label are available.
The technicians and the customer service's staff are well-experienced and competent.We can supply our customers with spare parts or advice quickly.
we provide operating manuals, and organize training and learning days for our clients that would improve their knowledge and grow with us.
This Seed Drill Planter Fertilizer is the updated version on basis of traditional draft type seeders, which is suitable for drilling small sizes of seeds such as wheat, soybean etc. in large and middle sized fields.
2BFY-24 is equipped with big angle openers, which makes it possible to drill wheat in wider strip zone in Spring.
The press device can also be equipped at option for the above machine.
Main Technial Parameters:
| Model | LM2BFY-24 | LM2BFF-24 | LM2BFY-36 |
| Overall Dimensions(mm) | 4380×3680×1650 | 4380×3770×1650 | 6170×4030×1650 |
| Net Weight(kg) | 1320 | 1430 | 1900 |
| Working Width(mm) | 3600 | 3600 | 5400 |
| Working Depth(mm) | 300-800 | ||
| Driving Power(hp) | 50-80 | 50-80 | 65-100 |
| Type of transmission | Chain Transmission | ||
| Volume of Fertilizer Box(L) | 430 | 430 | 320×2 |
| Volume of Seeds Box(L) | 410 | 410 | 305×2 |
| Type of Seeds Discharger | Cast Iron Flute Wheel | ||
| working efficiency(Ha/h) | 2-2.86 | 2-2.86 | 3-4.3 |
| Spaces between Rows(mm) | 150(adjustable) | ||
| Working Speed(km/h) | 7-10 | ||
| Type of Openers | Double-disc | Double-Disc with Wider Spacing | Double-disc |
| Distance between front and back Openers(mm) | 260 | 490 | 260 |
| Type of Clutch | jaw(teeth) positive-contact type | ||
Company Information:
Guanzhou Laurel & Honesty Holdings was established in 1981. As manufacturers of machinery for soil cultivation, sowing and crop protection, our currently employs approximately 500 people. Factory size cover an area of 98000 square meters.
It is produces a wide range of straw chopper machine, precision planters, cereal seed drills, cultivator, ploughs, disc plough, chisel plow and corn harvester.
Progress is achieved by continuous R&D carried out by a large team of engineers.
It is passed ISO9001 Certificate in year 1998, we guarantees to its customers products and services compatible with the international quality norms, in every equipment produced by it.
Our Services:
Each unit of machine have 1 year of gurantee time.
OEM Service and buyer label are available.
The technicians and the customer service's staff are well-experienced and competent.We can supply our customers with spare parts or advice quickly.
we provide operating manuals, and organize training and learning days for our clients that would improve their knowledge and grow with us.
