Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per
Product Details

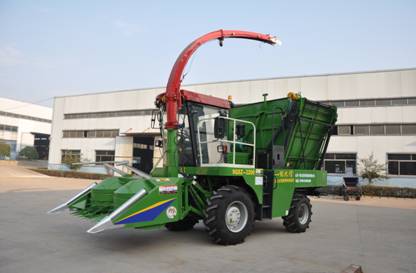

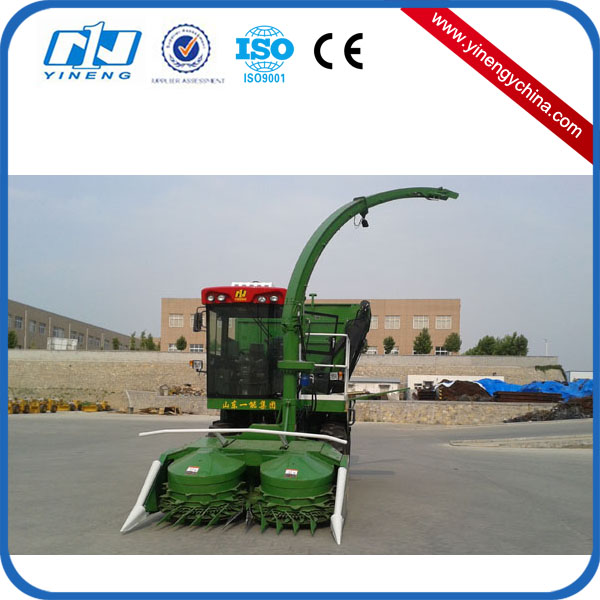

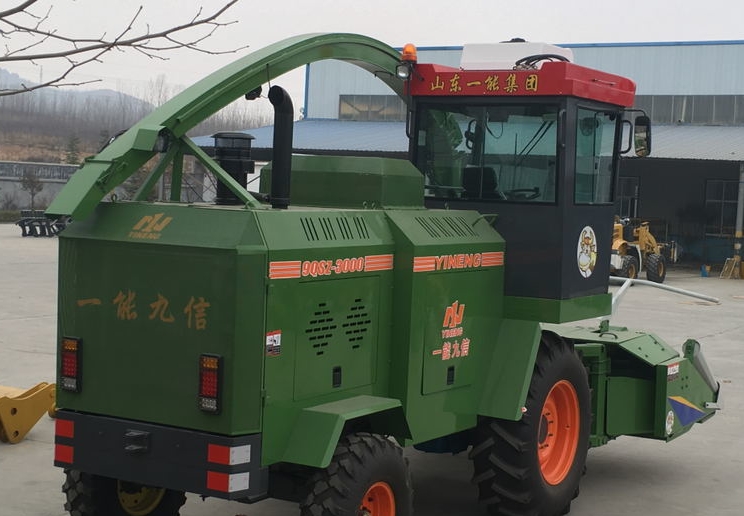

- Model NO.: 9qsz-3000 Green (yellow) Forage Harvester
- Application: Cotton, Rice, Corn, Tubers, Straw, Sorghum Bicolor
- Harvest method: Cutting
- Transmission: Hard Shaft
- Certification: UL, QS, GMP, SGS, ISO9001:2008, CE
- Condition: New
- Bucket Capacity: 5ton
- Dumping Height: Above 1.2m
- Max. Drawing Force: 45kn
- Tyre: 16/17-20
- Operating Weight: 8600kg
- Specification: CE approved
- HS Code: 84295400
- Type: Horizontal Cut Harvester
- Power Source: Diesel
- Drive Type: Gear Drive
- Portable Harvester Type: Side Hanging Type
- Color: Green
- Application Field: Agriculture, Livestock, Aquaculture, Forestry
- Rated Load: 5ton
- Max. Breakout Force: 95%
- Rated Power: 192kw/2400rpm
- Overall Dimensions: 7300× 3090× 4750mm
- Trademark: Yineng jiuxin series
- Origin: Shandong Yineng Heavy Industry Co., Ltd
Basic Info
Product Description
1. Features:
l Using the Germany champion's disc technique vertical cutting platform, working width 2.4meters
l The engine by Yuchai engine, output power of 190 horsepower, reliable quality, fuel consumption is small;
l Free switching between 4WD walking and 2WD walking modes, improve the machine environment adaptability.
l Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;
l Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle;
l Large capacity dump hopper, easy for the car-following operation;
l Adjust the cutting length of the materials in multi-polar. The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
2.Main Specifications:
Remark: Heavy chassis for standard
3. Quality certificate:
(1) CE Approved.
(2) Obtained the certificate of ISO9001:2008.
(3) Manufacturing license number:
4. Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5) Offer Validity: 30 days
l Using the Germany champion's disc technique vertical cutting platform, working width 2.4meters
l The engine by Yuchai engine, output power of 190 horsepower, reliable quality, fuel consumption is small;
l Free switching between 4WD walking and 2WD walking modes, improve the machine environment adaptability.
l Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;
l Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle;
l Large capacity dump hopper, easy for the car-following operation;
l Adjust the cutting length of the materials in multi-polar. The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
2.Main Specifications:
| Items | Parameters |
| Operation way | Auto-run unlevel harvest |
| Cutting table type | vertical cylinder |
| Operation Range | 2400mm |
| Operation speed | 4-8km/h |
| Efficiency | 20-60T/h |
| Cutting Length | 7-50mm(adjustable) |
| Loss rate | ≤3% |
| Min cutting height | ≤150 |
| Engine Power | 140kw(190hp) |
| Dimension | 7100*2850*4730mm |
| Overall weight | 6900kg |
3. Quality certificate:
(1) CE Approved.
(2) Obtained the certificate of ISO9001:2008.
(3) Manufacturing license number:
4. Others:
(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5) Offer Validity: 30 days
