Type:Agriculture Machinery & Equipment
-
Brand Name:
-
Place of Origin:China (Mainland)
-
Port:
-
Production Capacity:0 per
Product Details
- Model NO.: LM6.3
- Application Field: Agriculture, Livestock, Aquaculture
- Power Source: Gasoline
- Traction Type: Hanging
- Arbor Configuration: Horizontal Axis
- Color: Red
- Displacement(Ml): 406
- Starting System: Recoil Start
- Oil Volume) L: 1.1
- Rated Output(Kw): 6.3
- transmission Type: 135 Type
- Transport Package: Standard Package
- Origin: Guangdong China
- Type: Micro-Farming Machine
- Farming Policy: Dry Cultivating Machinery
- Operation: Soil Preparation Machinery, Continuous Running Operation
- Drive Type: Gear Drive
- Certification: SGS, ECE, EU, CE
- Bore*Stroke(mm): 86*62
- Compression: 20:01
- Fuel Tank Capacity) L: 3.5
- Rated Rotary Speed(R/Min): 3600
- Driving Mode: Gear
- Trademark: Laurel
- Specification: as the item size
- HS Code: 8432809000
Basic Info
Product Description

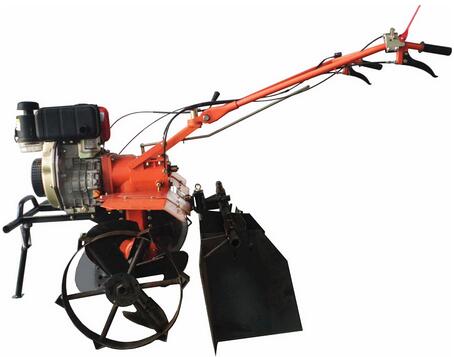

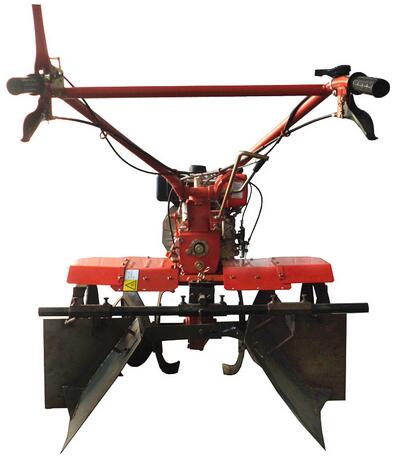

6.3kw Paddy Filed Tiller Rice Tillage Machine
Technical Parameter:
Usage and Accessories:
Used in drylands,paddy,sandy soil,none farmed lands,greenhouse,orchard,garden operations and so on.
Tilling, Weeding,ditching,furrowing,irrigation,potato harvest and so on.
If you want know the more details about assessories,pls contact with us!
The Main Features:
Suitable for the plains, mountains, hilly area of paddy field, dry and vegetable greenhouses, especially suitable for mountain terraces, Small piece of farmland and deep mud field operations. It can be completed to do farm works of rotary tillage, weeding, deep ploughing, ridging, ditching, sowing, fertilizing, spraying chamicals etc. equipped with reference supporting facilities.
The Main Features
Micro tillage machine uses small diesel or gasoline engine as its power, has the advantages of light weight, small volume, simple structure etc. With the corresponding equipment it could not only pump, power generation and spray operations, but also tow the trailer for short-distance transport.
Our Main Products
Gasoline/diesel engine, gasoline/diesel generator, water pump, cultivator/tiller and related parts.
As a manufacturer, we can provide you good quality and low price products immediately instead of purchase from distributors.
FAQ
Q1: What's your MOQ of this Item?
A1: 1 PCS
Q2:What's your payment term?
A2:L/C and T/T
Q3:Where is your Loading Port?
A3:Guangzhou,China Port or according to your requirements.
Q4:How about your quality control in your factory?
A4:Our company are always paying great attentions to the quality controlling from the beginning to the end.
Q5: Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings.
Q6: How do you make our business long-term and good relationship?
A6:1. We keep good quality and competitive price to ensure our customers' benefit;
2.We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
Our Services
1.OEM is available,we accept your brand and designing of packing cartons.
2.We supply samples for your reference and checking.
3.Delivery time:at least 15 days after receiving your deposit.
4.Warranty:1 Year,except the easily damaged parts.
Technical Parameter:
Tiller Model | LM6.3 | |
Diesel engine | Engine model | 186F(diesel engine) |
Engine type | Single cylinder, Forced air cooling, 4-stroke | |
Bore×Stroke(mm) | 86×62 | |
Displacement(ml) | 406 | |
Compression | 20:01 | |
Starting system | Recoil start | |
Fuel tank capacity) L | 3.5 | |
Oil volume) L | 1.1 | |
Rated rotary speed(r/min) | 3600 | |
Rated output(kw) | 6.3 | |
Tilling parameter | Blades | 4 pcs 4 groups/4 pcs 5 groups |
Tilling scope (mm) | 1050/1350 | |
Tilling depth(mm) | ≥100 | |
Gear Shifting | Reverse, 0, 1, 2 | |
Driving Mode | Gear | |
Fuel consumption (Kg/kw.h) | ≤30 | |
Working performance( h.sqm/h.m) | ≥0.04 | |
Revolutions per minute of revers gear | 63 | |
Revolutions per minute of slow gear | 84 | |
Revolutions per minute of fast gear | 145 | |
Tiller details | Handle horizontal adjustment | angle ±90° |
Handle vertical adjustment | angle 60° | |
Left Handle assessories | Clutch and stop switch | |
Right handle assessories | Throttle and reverse handle | |
Transimission type | 135 type | |
Transimission material | Aluminum(uper)+cast iron(down) | |
Axle Diameter | φ32 |
